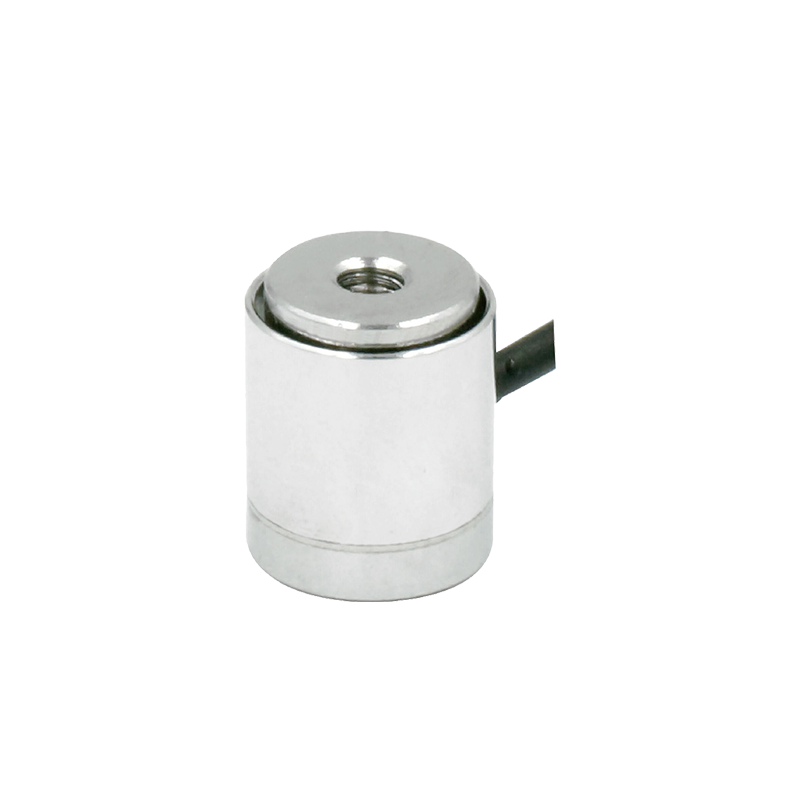

Miniature Compression And Tension Load Cell R703
Ultra-micro-scale sensor, which tests the bull range, is used for testing cell wall puncture force and some ultra-small-scale force tests.
Product Description
Miniature Compression And Tension Load Cell
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10,25,30,50,100,150,250,500,1000g |
| Accuracy class | C3 |
| Nominal(rated)sensitivity | ≈1mV/V |
| Zero balance | ±2mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.02%F.S/10℃ |
| Temp.effect on zero | 0.02%F.S/10℃ |
| Nput impedance | 350±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -35-65℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP65 |
| Cable size | φ2×4000mm |
| Material | Aluminum alloy |
