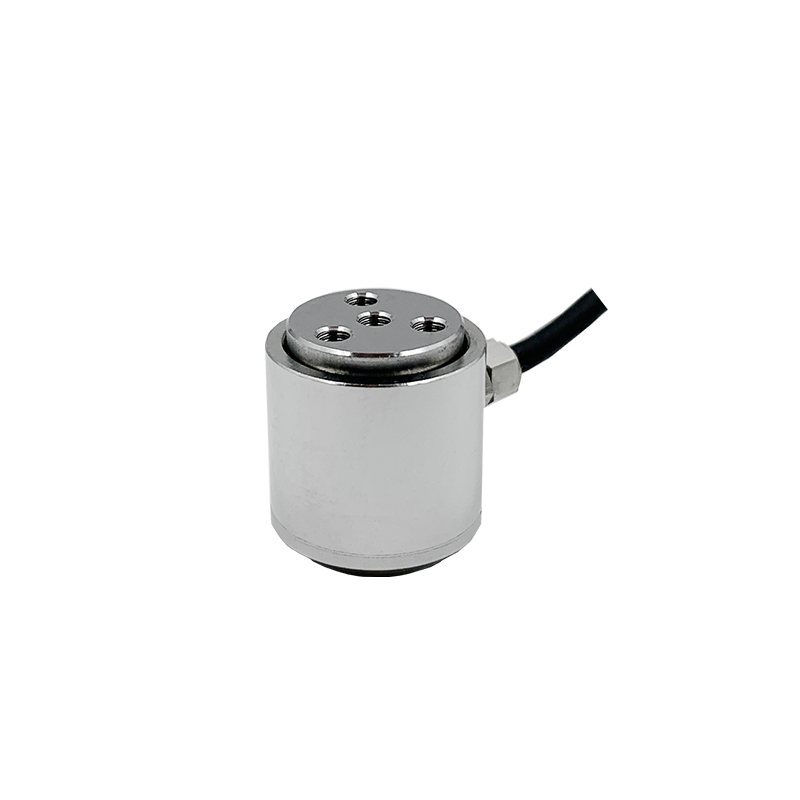

Miniature Compression And Tension Load Cell R178C2

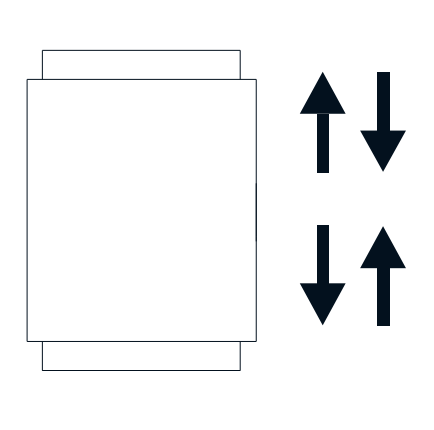

The R178C2 miniature sensor is used to measure tensile and compressive forces. With its compact and rugged design, this product is ideal for use in a variety of tension and pressure product use and measurement scenarios. Range range 50N-200N. Due to its high dynamic response frequency, the sensor provides fast measurements in a variety of applications requiring tensile and compression force measurements.
Product Description
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10,20,30,50,100,200N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.1%F.S |
| Hysteresis | 0.1%F.S |
| Repeatability | 0.05%F.S |
| Creep(30min) | 0.05%F.S |
| Temp.effect on sensitvty | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Nput impedance | 350±30Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-60℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | Medium 2X4000mm(black cable) |
