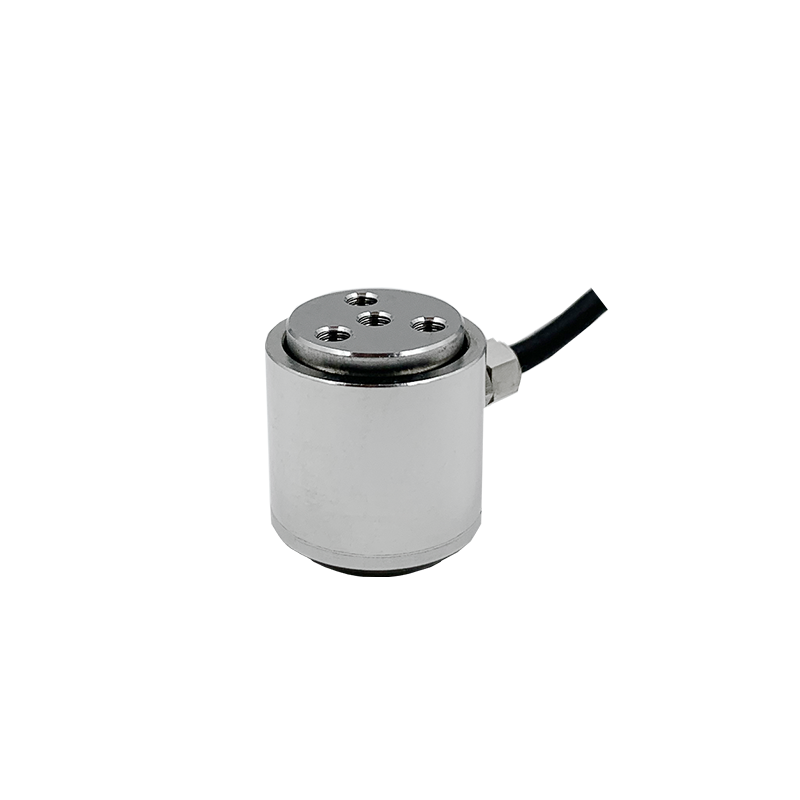

Miniature Compression And Tension Load Cell T317

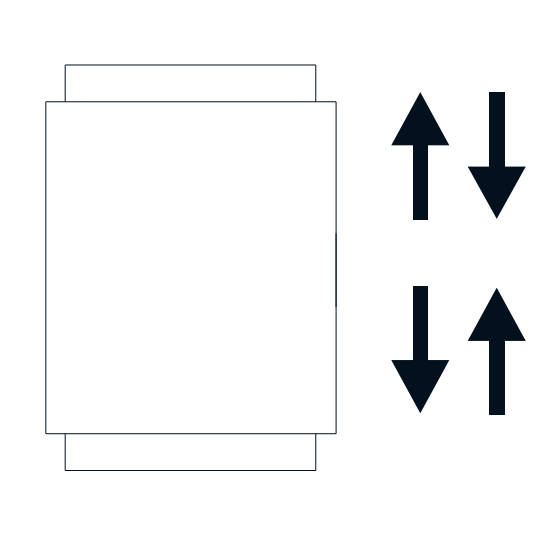

T317 is used to measure tensile and compressive forces. Widely used in tensile force/push ergometers, welding force measurement, surface tensile force measurement, etc. The product is compact and rugged in design and can reach a range of 20-2000N. Due to its high dynamic response frequency, the sensor provides fast measurements in a variety of applications requiring tensile and compression force measurements.
Product Description
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 20,50,100,200,300,500,1000,2000N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Nput impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Cable size | φ3×4000mm |
| Weight approx | 0.1kg |
| Material | Stainless Steel |
