Can a Column Force Sensor Be Used for Structural Health Monitoring
2026-02-26
Structural health monitoring (SHM) has become increasingly important in modern engineering as infrastructure systems grow larger, more complex, and more demanding in terms of safety and reliability. Bridges, buildings, industrial frames, and heavy machinery all rely on accurate load information to detect early signs of damage or fatigue. In this context, column force sensors are gaining attention as a practical solution for long-term structural monitoring. But can a column force sensor truly be used for structural health monitoring? The answer is yes—when applied correctly.
Understanding Column Force Sensors

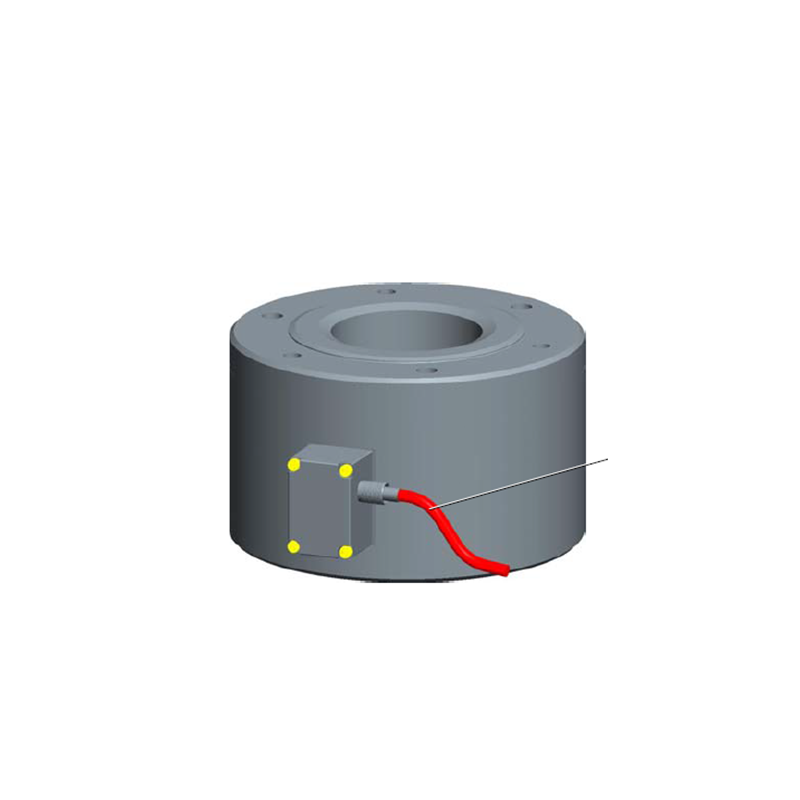

A column force sensor is designed to measure axial compressive forces with high accuracy and stability. Its robust cylindrical structure allows it to withstand heavy loads while maintaining consistent performance. These sensors are commonly used in press systems, load testing, and industrial weighing applications, making them well suited for environments where high forces and long service life are required.
For structural health monitoring, the ability of a column force sensor to continuously measure load changes is a key advantage.
Role in Structural Load Monitoring
In SHM systems, monitoring load distribution and force variation is essential for assessing structural integrity. Column force sensors can be installed at critical load-bearing points, such as columns, supports, or connection nodes, to measure real-time compressive forces.
By tracking changes in load over time, engineers can identify abnormal patterns caused by material degradation, foundation settlement, or unexpected external loads. This data provides valuable insight into the overall health of the structure.
Advantages for Long-Term Monitoring
Column force sensors offer several benefits for structural health monitoring applications. Their high load capacity and mechanical stability make them suitable for permanent installation. Many models feature excellent long-term stability and low creep, which are critical for reliable trend analysis.
Additionally, column force sensors can be integrated with data acquisition systems and remote monitoring platforms, enabling continuous data collection and real-time alerts. This supports proactive maintenance and reduces the risk of sudden structural failure.
Installation and Data Interpretation Considerations
For effective use in SHM, correct installation is essential. The sensor must be aligned with the primary load path to avoid side loads or bending forces that can affect accuracy. Proper mounting surfaces and load distribution plates help ensure consistent force transfer.
Equally important is data interpretation. Structural health monitoring focuses on trends and deviations rather than single measurements. Engineers must establish baseline values and acceptable load ranges to accurately assess structural behavior.
Environmental and Durability Factors
Structures exposed to outdoor or industrial environments require sensors with appropriate protection. Column force sensors used in SHM should offer resistance to temperature variation, moisture, and corrosion. Selecting sensors with suitable sealing and temperature compensation ensures reliable performance over long monitoring periods.
Conclusion
Column force sensors can play a valuable role in structural health monitoring by providing accurate, continuous measurements of compressive forces in critical load-bearing elements. When properly installed and integrated into a monitoring system, they help engineers detect early warning signs of structural issues, improve maintenance planning, and enhance overall safety. As demand for smart and resilient infrastructure grows, column force sensors are becoming an increasingly important tool in modern structural health monitoring solutions.
