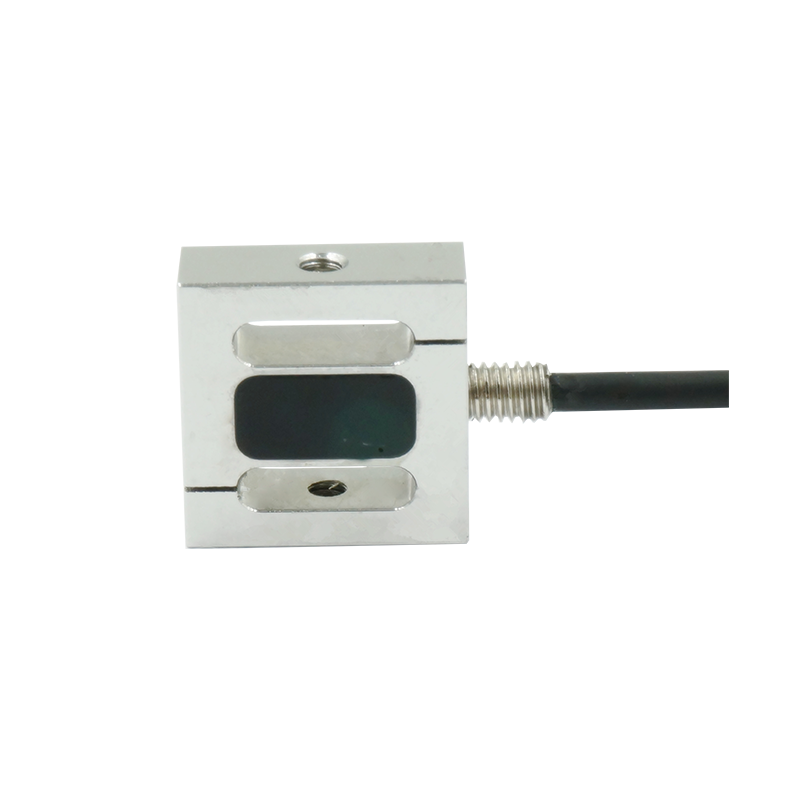

S-type Tension And Compression Load Cell R030

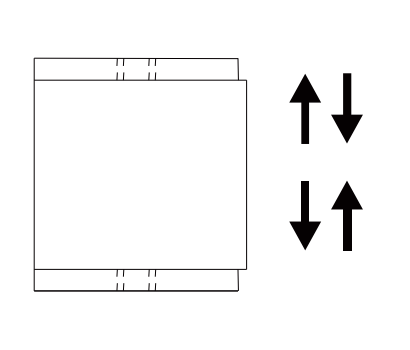

The RO30 is a miniature S-type sensor that measures tensile and compressive forces. It is mainly used for button force testing of 3C products, various switch button testing, pull-and-plug force testing, and force measurement or monitoring of medical and industrial equipment. This product is designed with overload protection and high dynamic response frequency with a range of 10 to 200N. Made of stainless steel, IP66, this product can work in harsh environments.
Product Description
S-type Tension And Compression Load Cell
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 10,20,30,50,100,200N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.02mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 350±30Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP66 |
| Material | Stainless Steel |
| Cable size | φ2×4000mm |
| Weight approx | 0.1kg |

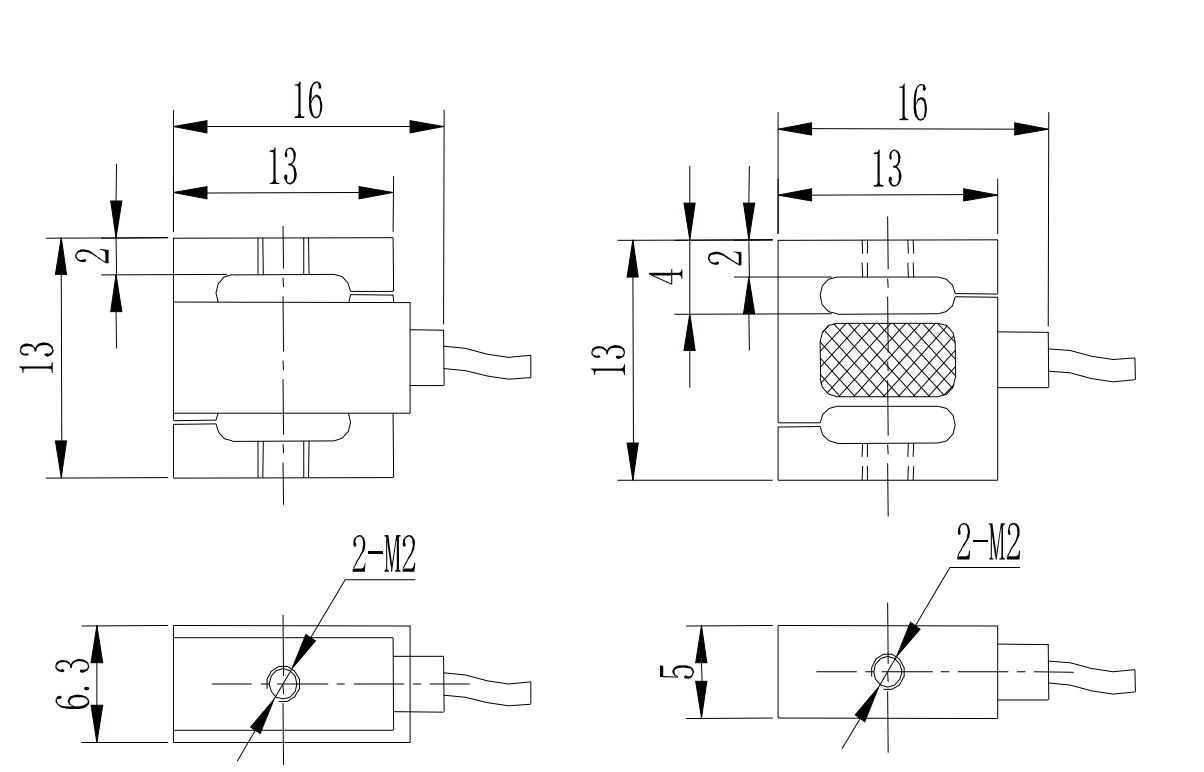

| Cap(N) | Remarks |
| 5,10,20 | Requires a shell |
| 30,50, 100,200 | Optional without housing |
