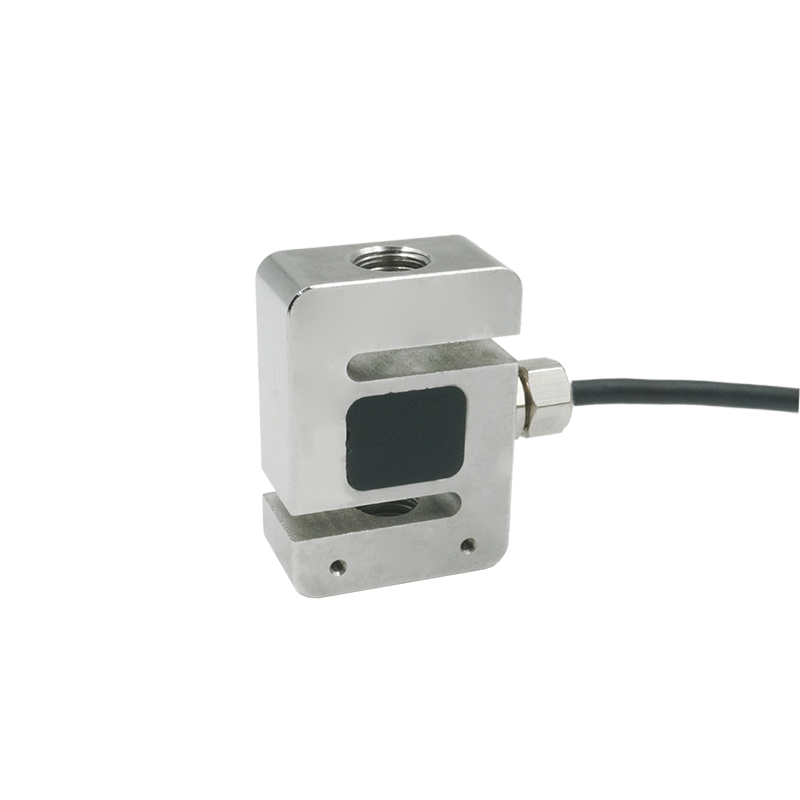

S-type Tension And Compression Load Cell T318B

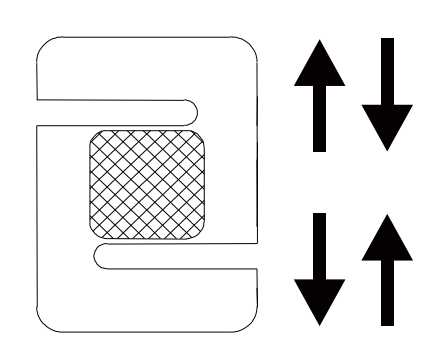

S-type Tension And Compression Load Cell T318B is used to measure tensile and compressive forces. With its compact design, the product is ideal for a variety of applications where space is limited. The product has a capacity range of 500- 2,000 N and can be widely used in automation, robotic and medical equipment, as well as various control and measurement systems. Due to its high dynamic response frequency, the sensor is suitable for rapid measurement.
Product Description
S-type Tension And Compression Load Cell
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 50,100,200,500,1000,2000N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.05%mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Nput impedance | 350±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S. |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Material | Stainless Steel |
| Cable size | φ3-4000mm |
| Weight approx | 0.1kg |
| Model | Load Deformation | Natural Frequency | Weight |
| T318-10N | 0.18mm | 11kHZ | 106g |
| T318-50N | 0.18mm | 14kHZ | 106g |
| T318-100N | 0.18mm | 17kHZ | 106g |
| T318-200N | 0.18mm | 26kHZ | 106g |
| T318-500N | 0.18mm | 50kHZ | 106g |
| T318-1000N | 0.18mm | 64kHZ | 106g |
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
