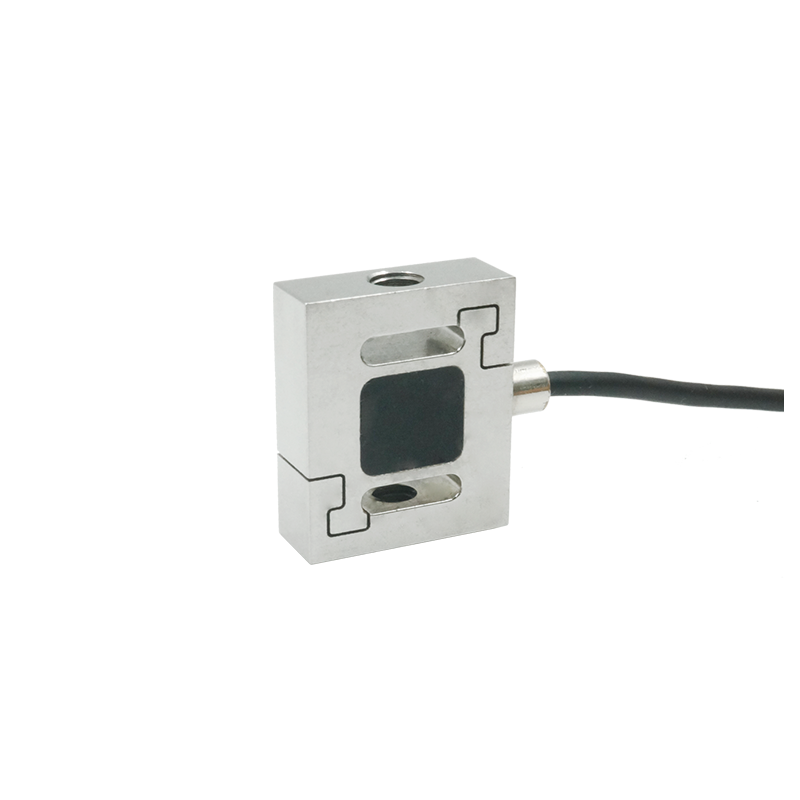

S-type Tension And Compression Load Cell T313
T313 S-type Tension And Compression Load Cell has external threads and is made of anodized aluminum or stainless steel for high accuracy. Customization is supported to meet your requirements and is available in stock, so it can be shipped within 48 hours. As with our entire sensor product line, we use metal foil strain gauge technology.
Product Description
S-type Tension And Compression Load Cell
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 1,2.5,5,10,20,50,100,200, 300,500N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.02mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Nput impedance | 350±30Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 300%F.S. |
| lP class | IP66 |
| Material | Stainless Steel |
| Cable size | φ2×4000mm |
| Weight approx | 0.1kg |

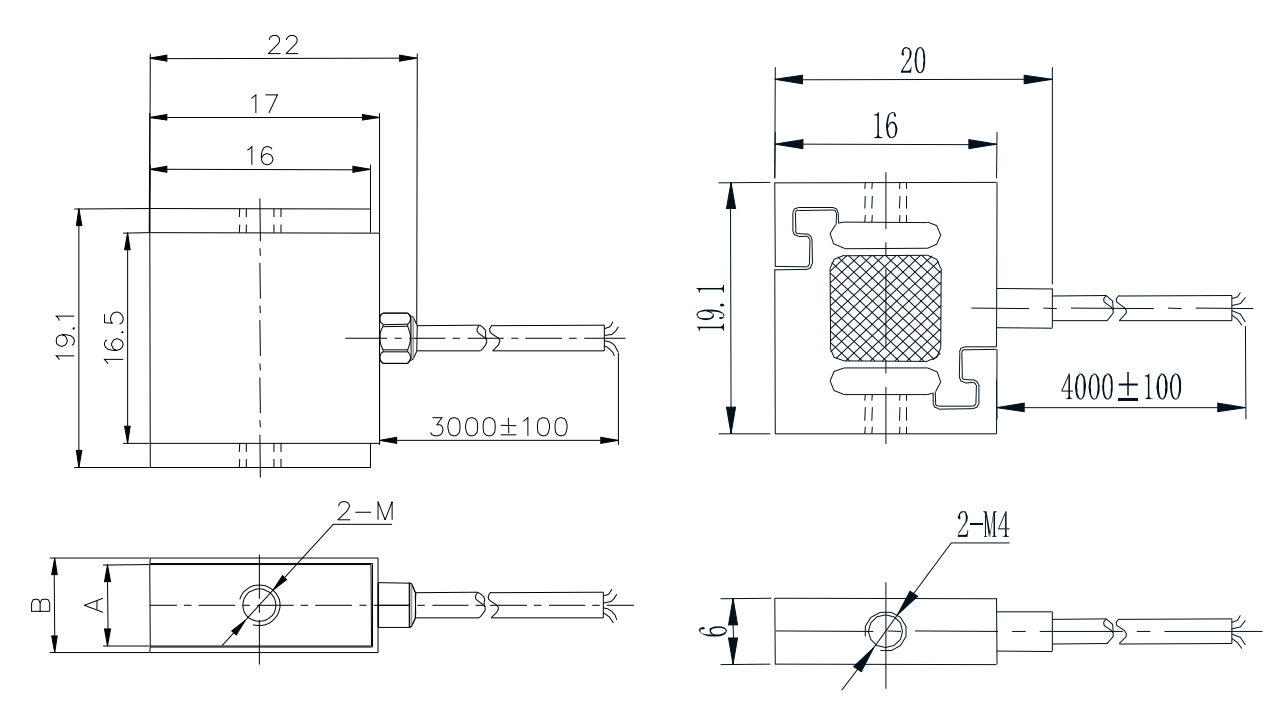

| A | B | M | Remarks | |
| 1,2.5,5,10,20 | 5 | 6.8 | M3 | Requires a shell |
| 50,100,200,300,500 | 6 | 7.5 | M4 | Optional without housing |
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
