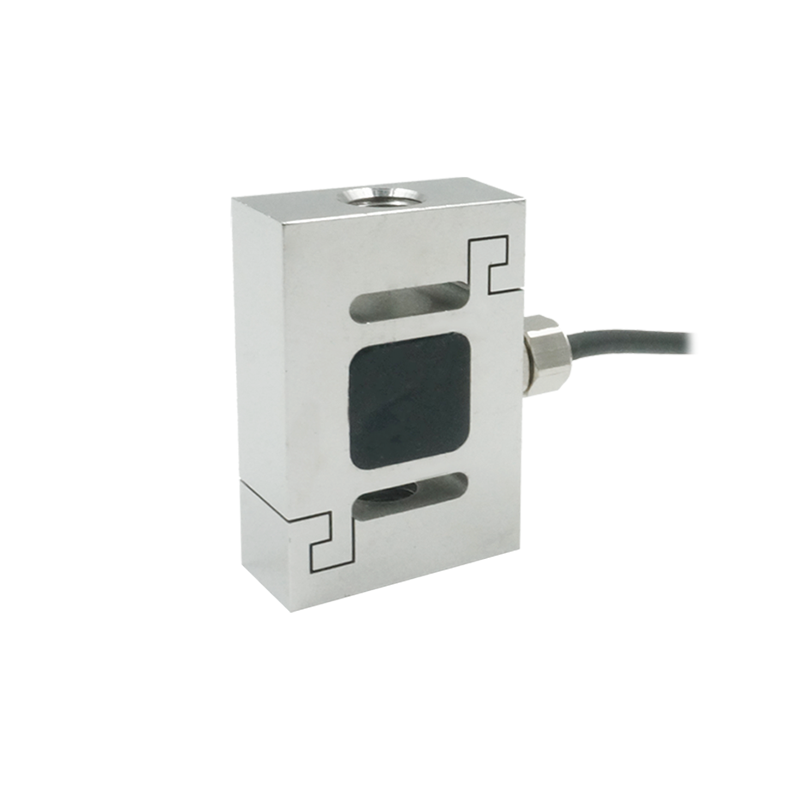

S-type Tension And Compression Load Cell T318G

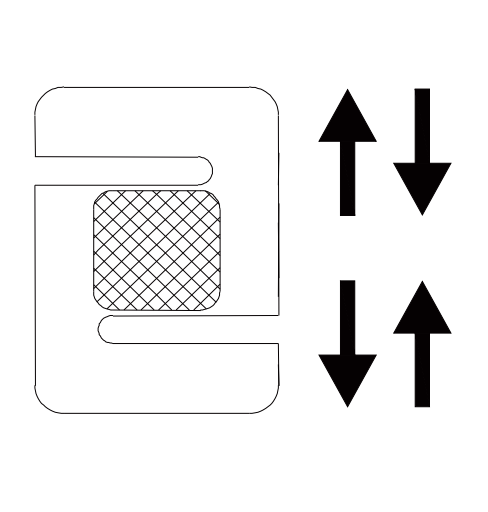

S-type Tension And Compression Load Cell T318G is used to measure tensile and compressive forces. With its compact design, the product is ideal for a variety of applications where space is limited. The product has a capacity range of 500- 2,000 N and can be widely used in automation, robotic and medical equipment, as well as various control and measurement systems. Due to its high dynamic response frequency, this sensor is suitable for rapid measurements.
Product Description
Tension And Compression Load Cell
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 500,1000,1500,2000N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.05%mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Nput impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S. |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Material | Stainless Steel |
| Cable size | φ3-4000mm |
| Weight approx | 0.1kg |
