Product Description

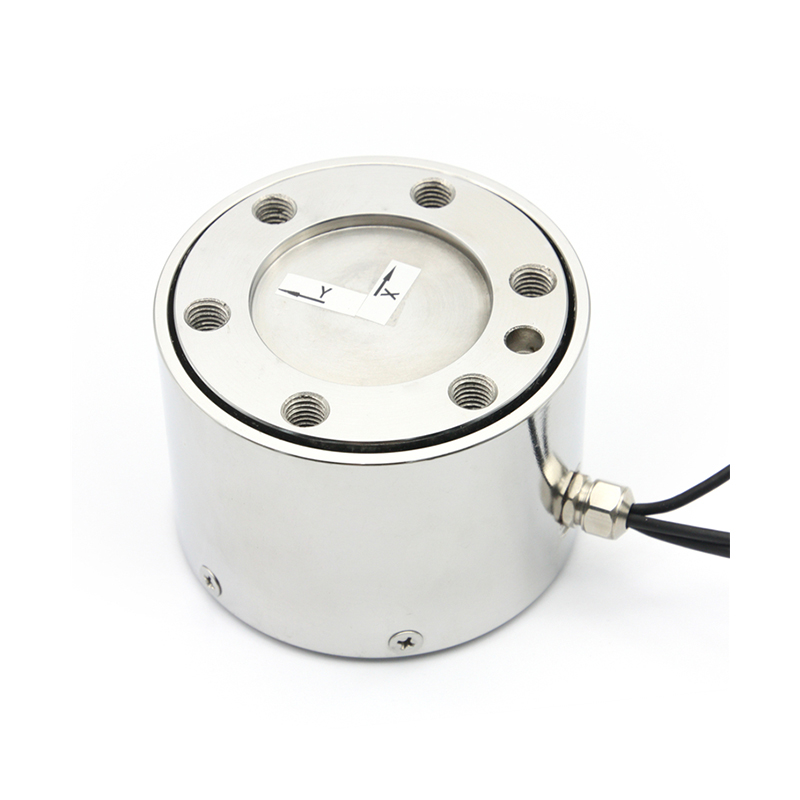

3 Axis Force Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install,IP66 protection
Dimension is customizable
Can be used for military grade measurement
Mainly used in large aircraft assembly,automotive assembly and car crash experiments, machining center precision machining and medical equipment precision testing
Specifications
| Specifications | Technique |
| Capacity(kN) |
X:10/25/50 Y:10/25/50 Z:25/50/100 |
| Sensitivity | =1.0mVV |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(300min) | 0.5%F.S |
| Temp.effect on output | 0.2%F.S |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 780/380±205Ω |
| Output impedance | 700/350±Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-10V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-75℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ6×3000mm |
| Weight approx. | 1.6kg |
| lP class | IP66 |
Mounting Dimension
Load Direction

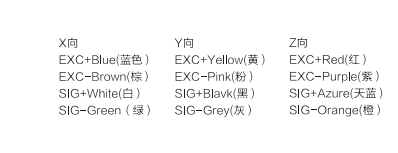

Wiring Code
