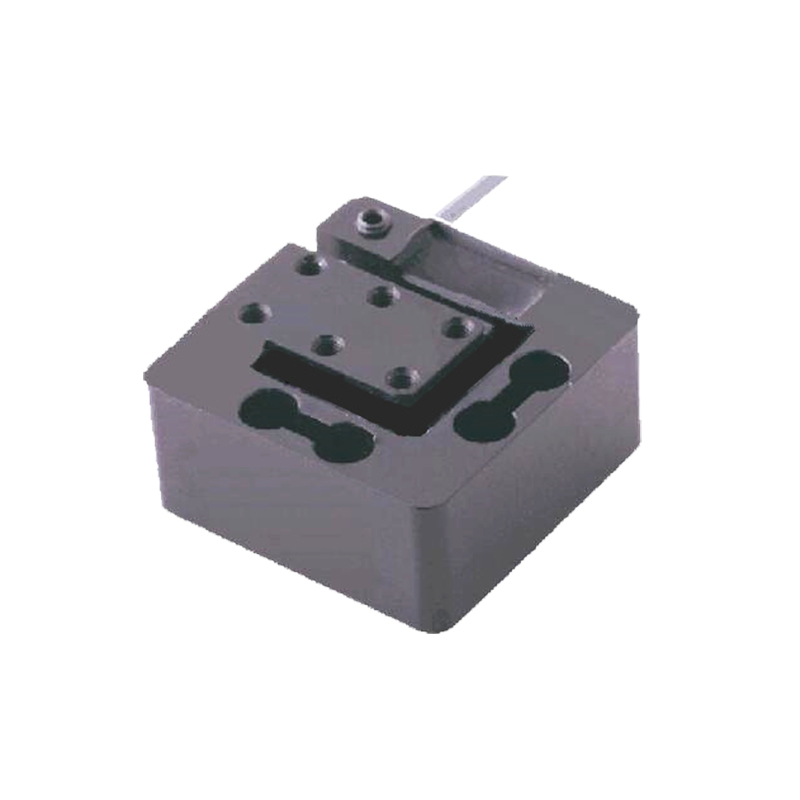

3 Axis Force Sensor T502
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment
Product Description
3 Axis Force Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to instal,IP66 protection
Dimension is customizable
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment
Specifications
| Specifications | Technique |
| Capacity(N) |
X:5/10/20/30/50 Y:5/10/20/30/50 Z:5/10/20/30/50 |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.2% F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.2%F.S. |
| Interference error | 0.5%F.S. |
| Creep(300min) | 0.2%F.S. |
| Temp.effect on output | 0.1%F.S/10℃ |
| Temp.effect on zero | 0.1%F.S/10℃ |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20~75℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ3×4000mm |
| Weight approx. | 0.2kg |
| lP class | IP66 |

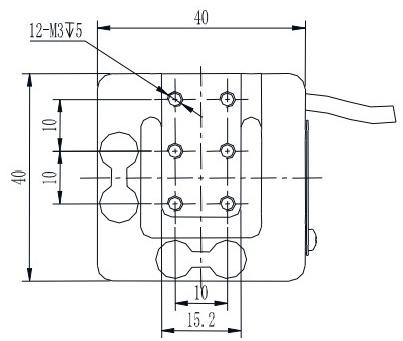

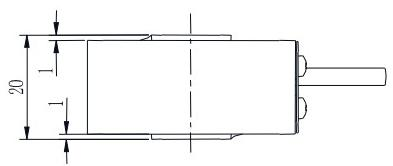

Mounting Dimension

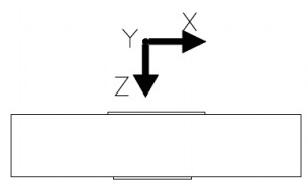

Load Direction

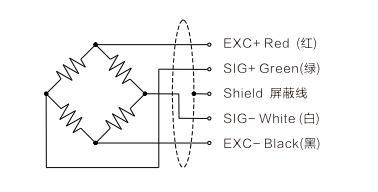

Wiring Code
