3 Axis Force Sensor T504
High accuracy with strong ability of anti-side force
Product Description

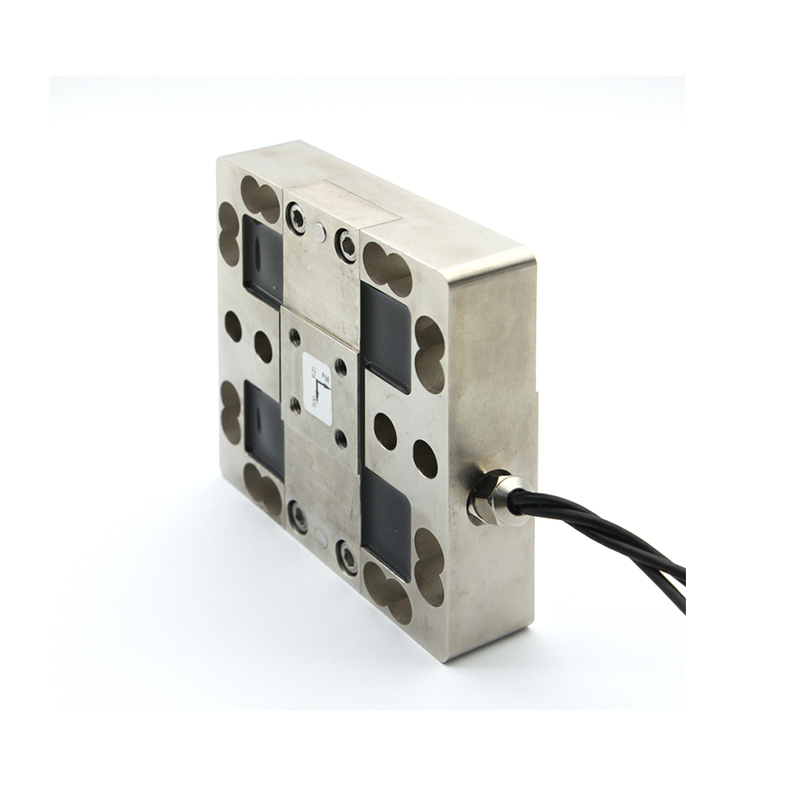

3 Axis Force Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install,IP66 protection
Dimension is customizable
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment
Specifications
| Specifications | Technique |
| Capacity(N) |
X:50/100/200/500/1000/2000/5000 10000/20000/30000 |
|
Y:50/100/200/500/1000/2000/5000 10000/20000/30000 |
|
|
Z:50/100/200/500/1000/2000/5000 10000/20000/30000 |
|
| Rated output | ≈1.0mVV |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S/10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20-75℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ6×4000mm |
| lP class | IP66 |

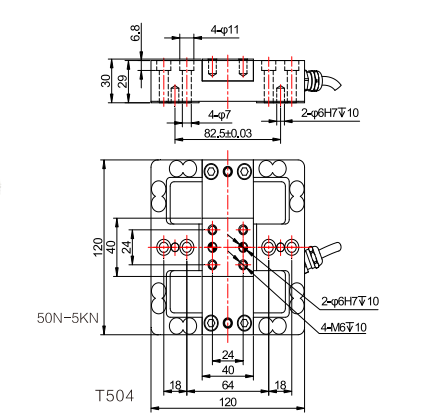

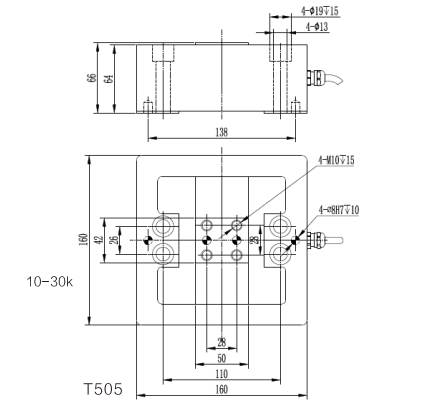

Mounting Dimension
Load Direction

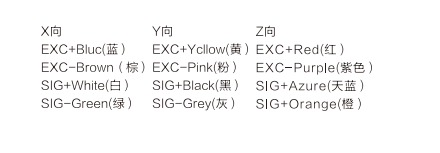

Wiring Code
