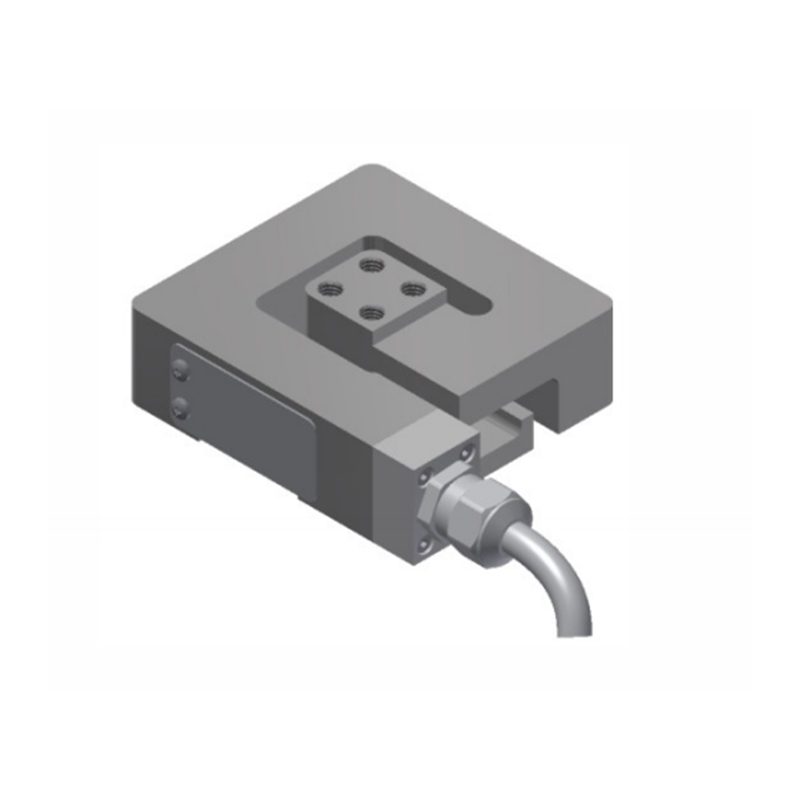

3 Axis Force Sensor T502B3
Precision control of robotic arms,surface grinding and polishing,machining center carving processing,precision testing of medical equipment
Product Description
3 Axis Force Sensor
Features & Applications
Small size,compact structure
High precision,strong resistance to bias load
Precision control of robotic arms,surface grinding and polishing,machining center carving processing,precision testing of medical equipment
Specifications
| Specifications | Technique |
| Nomial load | Fx=100kg,Fy=IO⁰kg,FZ=100kg |
| Rated output | =1.0mV |
| Zero balance | ±2%mV/V |
| Non-linearity | 0.05%FS |
| Hysteresis | 0.05%FS |
| Repeatability | 0.05%FS |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%FS./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 380±205Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20-60℃ |
| Safe overload | 120%F.S. |
| Utimate overload | 150%F.S. |
| Cable size | Φ6×8000mm |
| lP class | IP66 |

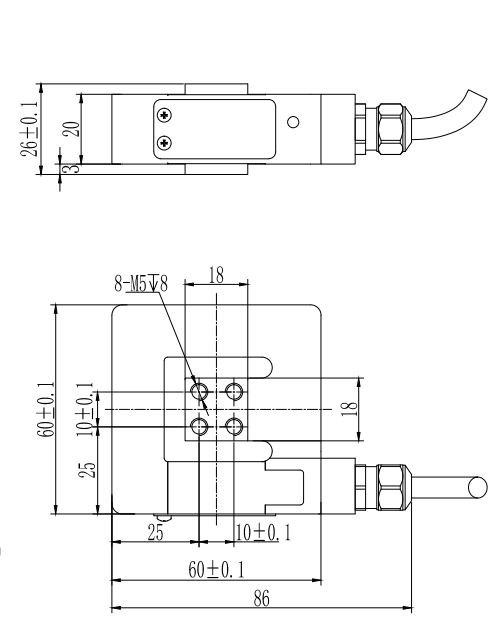

Mounting Dimension

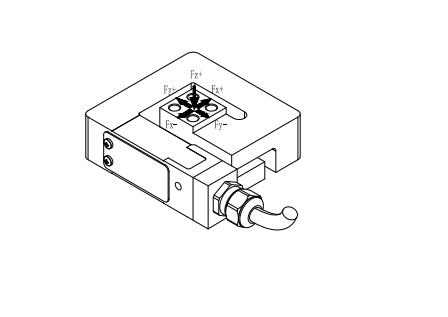

Load Direction

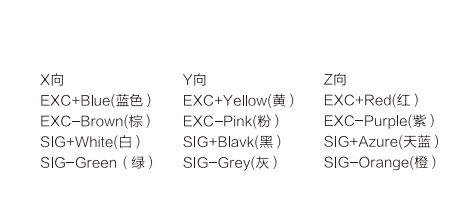

Wiring Code
