Product Description

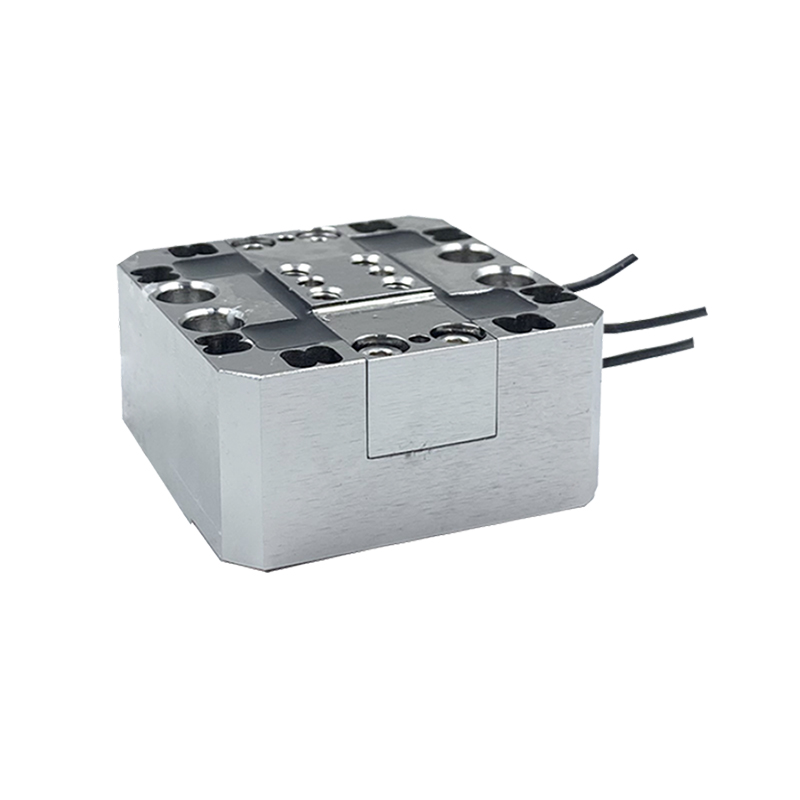

3 Axis Force Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install,IP66 protection
Dimension is customizable
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment
Specifications
| Specifications | Technique |
| Nomial load |
Fx=fy=5,10,20,30,50kg Fz=10,20,50,75,100kg |
| Rated output | 1±20mVV |
| Zero balance | ±0.05mVN |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(300min) | 0.3%F.S. |
| Temp.effect on output | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥2000MΩ/20VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe overload | 150%F.S. |
| Utimate overload | 200%F.S. |
| Cable size | 3-Φ2×2m |
| lP class | IP66 |

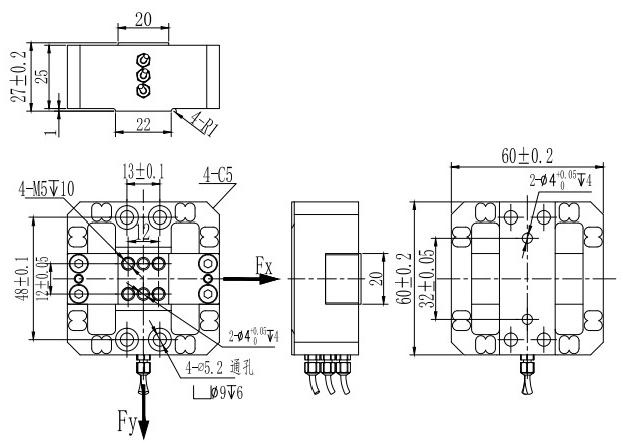

Mounting Dimension

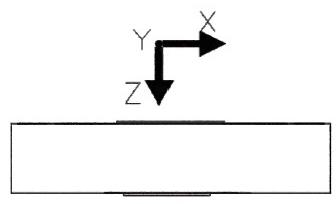

Load Direction

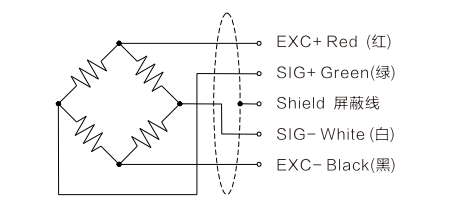

Wiring Code
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
What is your sample policy?
We can supply the sample if we have ready parts in stock.
