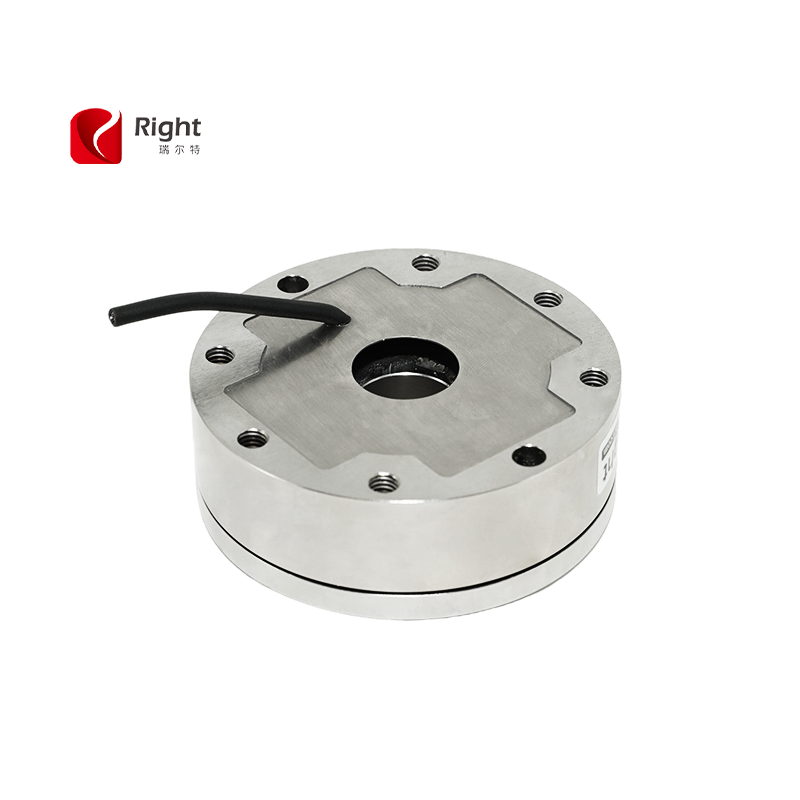

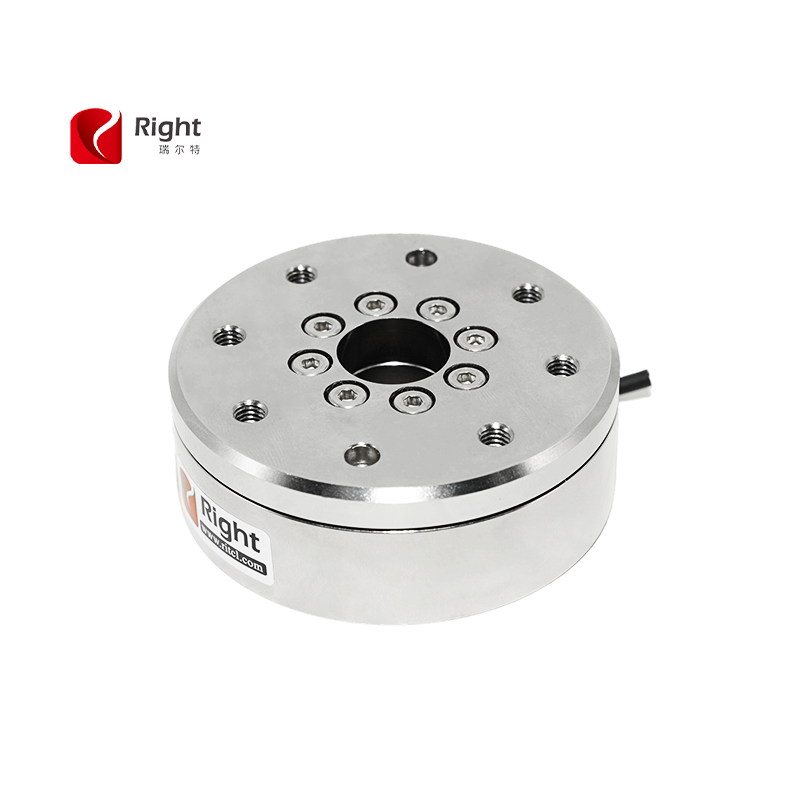

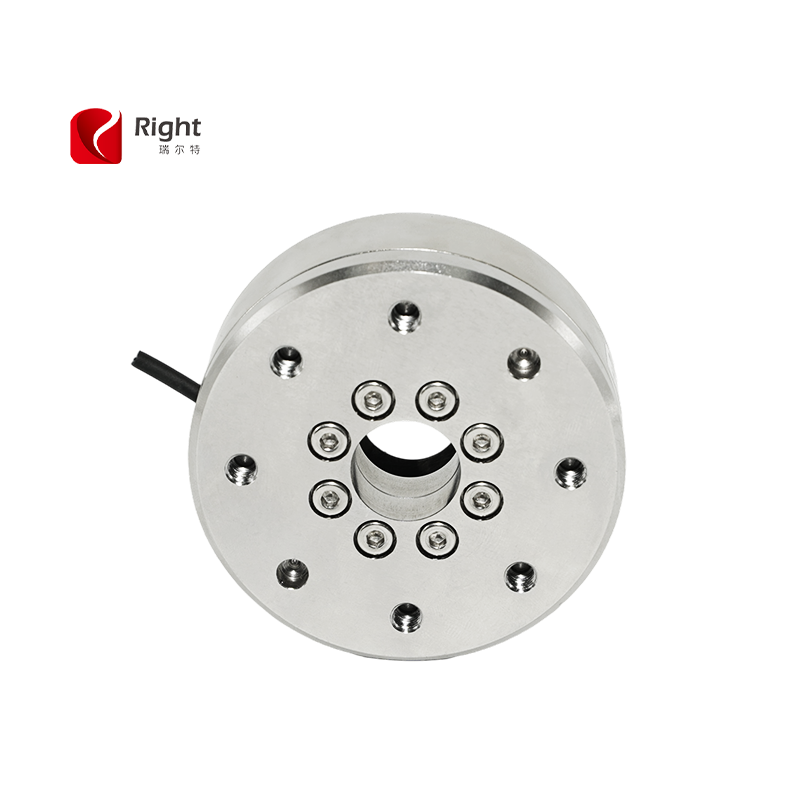

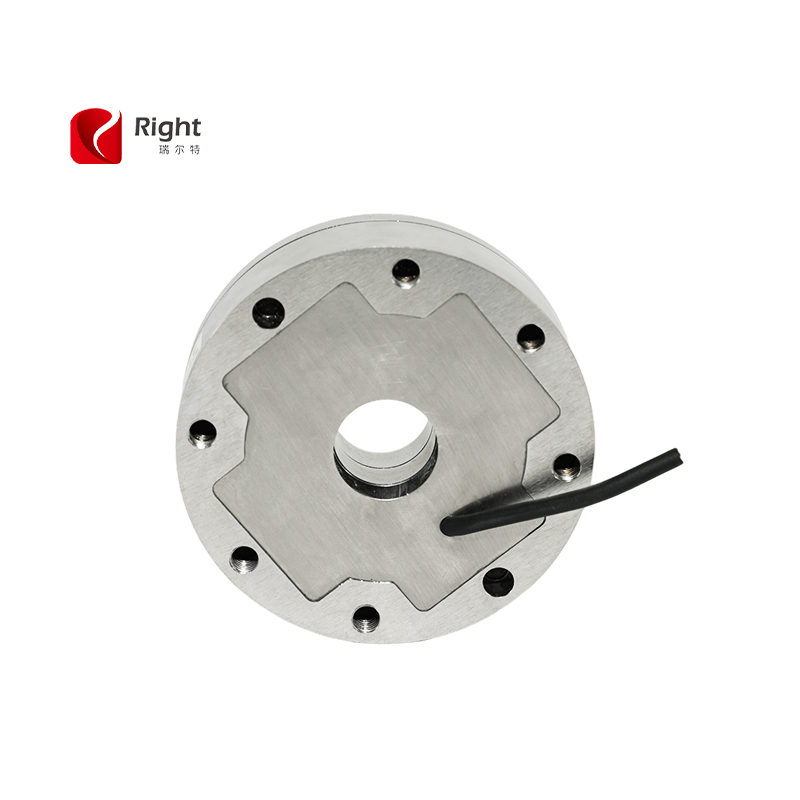

6 Axis Force Sensor T521J10-360
1Stainless steel material, double-sided thread installation
Built-in digital signal output optional
5 times overload
Product Description
Features & Applications
Stainless steel material, double-sided thread installation
Built-in digital signal output optional
5 times overload
Specifications
| Specifications | Technique |
| Nomial load |
Fz=360N Fx=Fy=200N Mx=Fz=10N. m |
| Non-linearity |
1.5%F.S.(Fx/Fy/Fz) 1.5%F.S.(Mx/My/Mz) |
| Repeatability |
0.1%F.S.(Fx/Fy/Fz) 0.2%F.S.(Mx/My/Mz) |
| Hysteresis |
1.5%F.S.(Fx/Fy/Fz) 1.5%F.S.(Mx/My/Mz) |
| Creep(30min) | 0.5%F.S. |
| Temp. effect on output | 0.5%F.S./10°C |
| Temp. effect on zero | 0.5%F.S./10°C |
| Insulation | >5000M2/100VDC |
| Compensated temp range | -10~60°C |
| Operation temp range | -20~80°C |
| Ultimate overload | 1000%F.S. |
| Cable size | $3-900mm |
| Power supply voltage | 5VDC |
| Protection class | IP65 |
| Resolving power | 0.1% |
| Baud rate | 1Mbps |

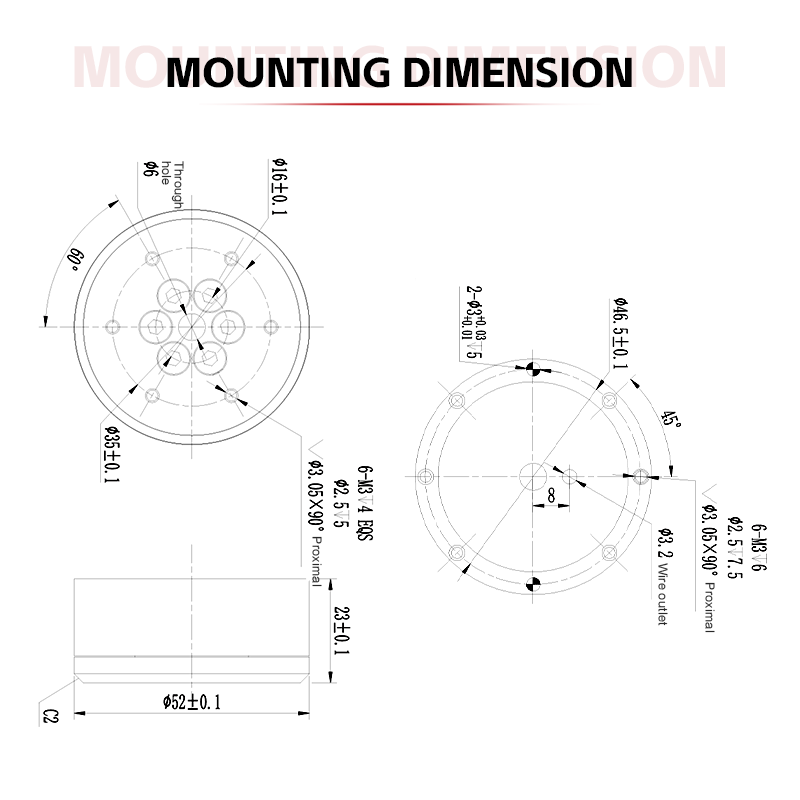

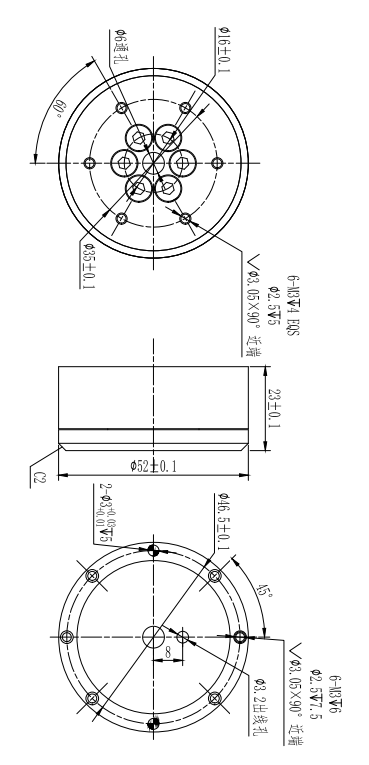

Mounting Dimension

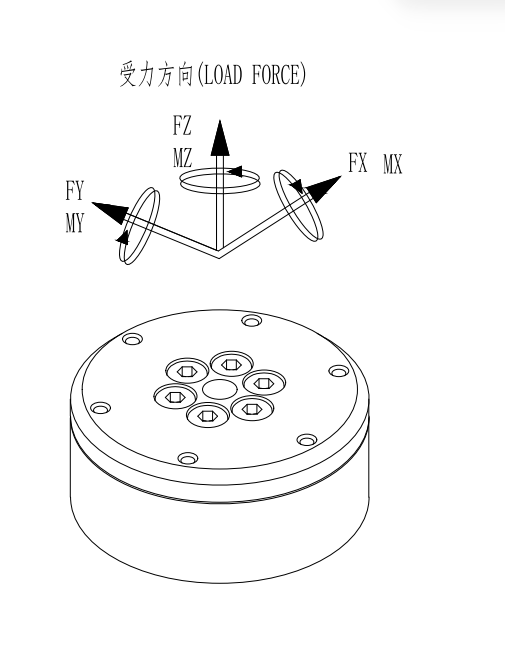

Load Direction
