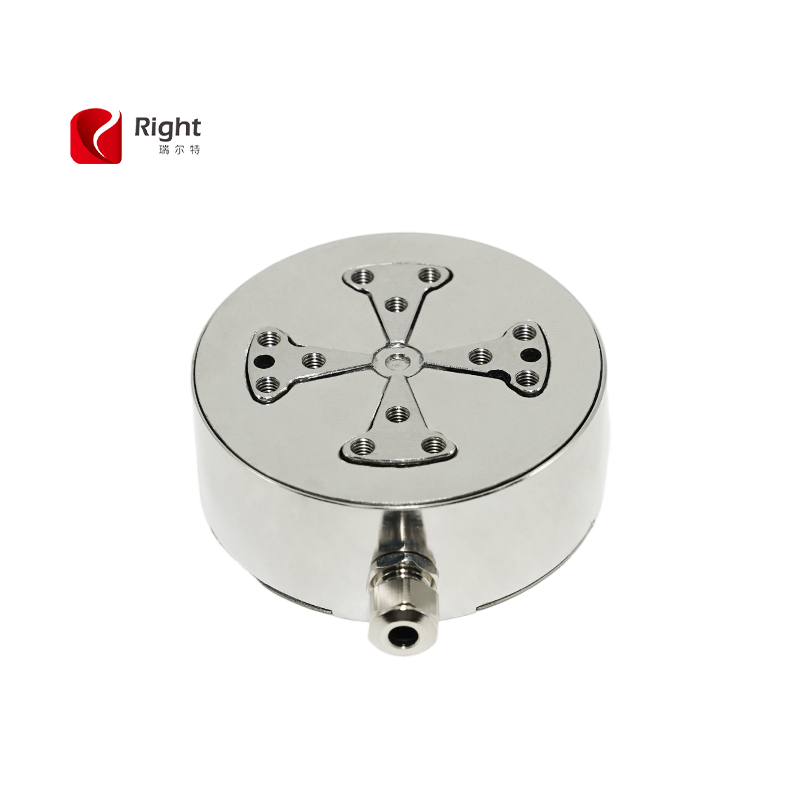

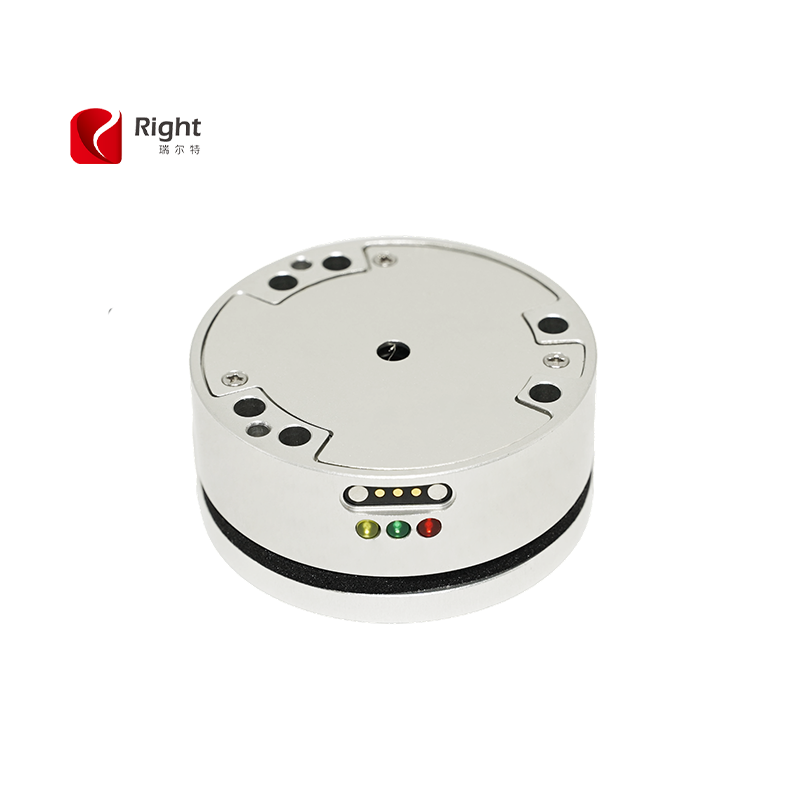

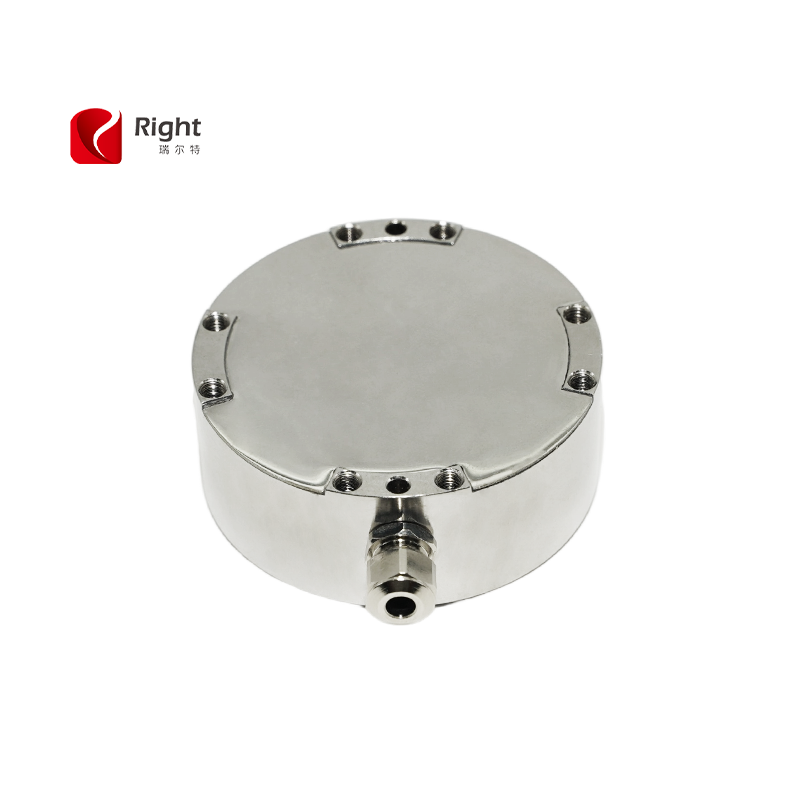

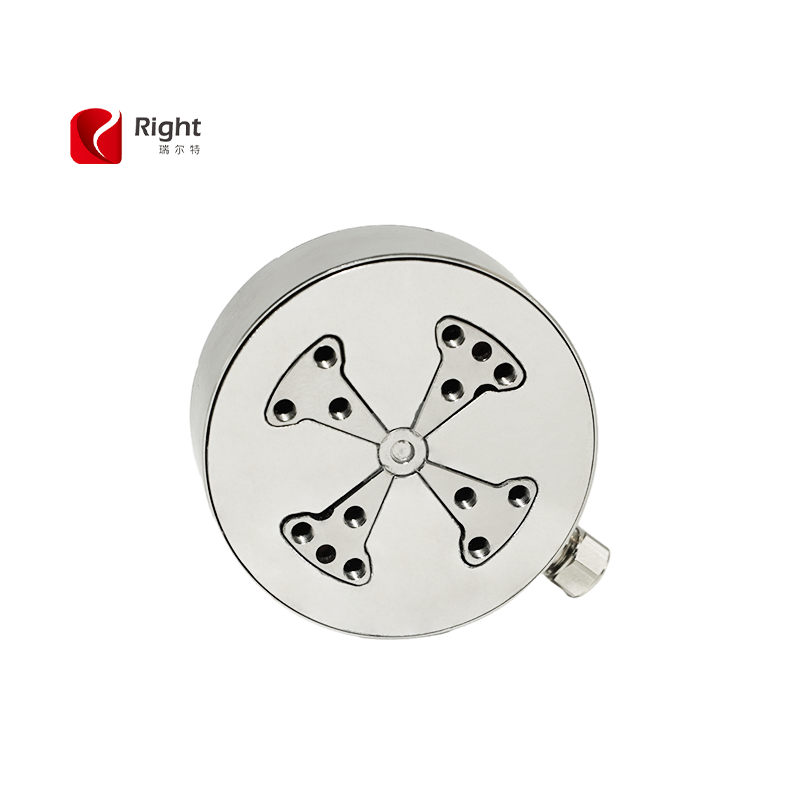

6 Axis Force Sensor T521T
Ultra-thin size design,diameter 50mm
5 times more anti-overload design
High precision
Product Description
Features & Applications
Ultra-thin size design,diameter 50mm
5 times more anti-overload design,
High precision
Easy to install, accept customized specifications
Customizable 485/EtherCAT and other communication
protocols(H27mm)
| Measurement Range | A | B | C |
| Fx=Fy=Fz | ±100N | ±200N | ±300N |
| Mx=My=Mz | ±5Nm | ±10Nm | ±30Nm |
| Material | Aluminum Alloy | Aluminum Alloy | Stainless Steel |
Specifications
| Specifications | Technique |
| Rated Capacity | See Table |
| Output mode | RS485 |
| Interaction error | 1%FS |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp. effect on output | 0.1%F.S./10℃ |
| Temp. effect on zero | 0.1%F.S./10℃ |
| Insulation | ≥5000MΩ/100VDC |
| Supply Voltage | 5~12VDC |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~60℃ |
| Safe overload | 200%F.S. |
| Ultimate overload | 500%F.S. |
| IP class | IP65 |
| Cable | φ3.2–100 mm Twisted Pair |

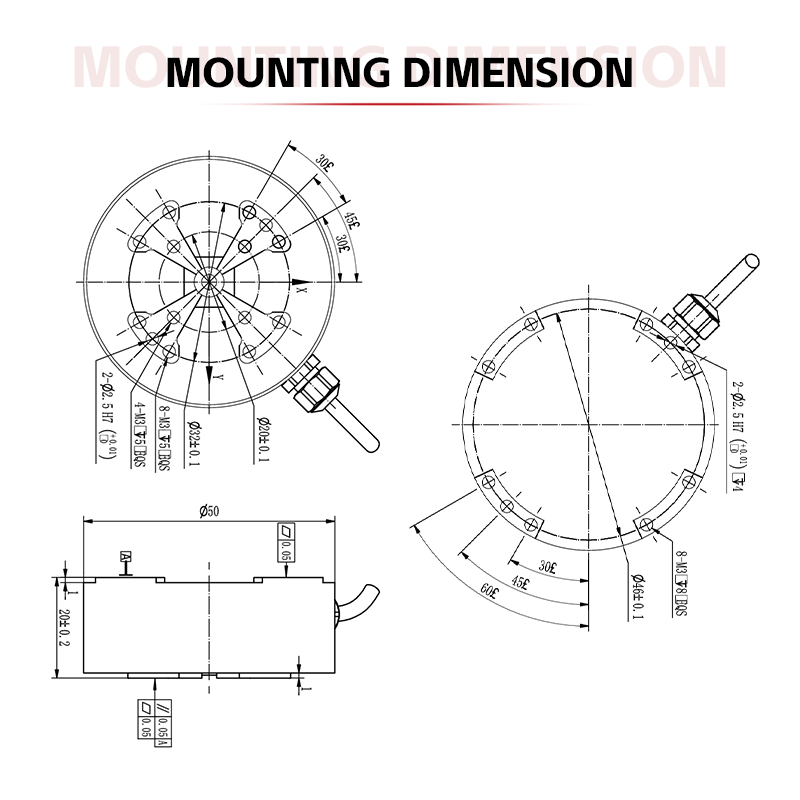

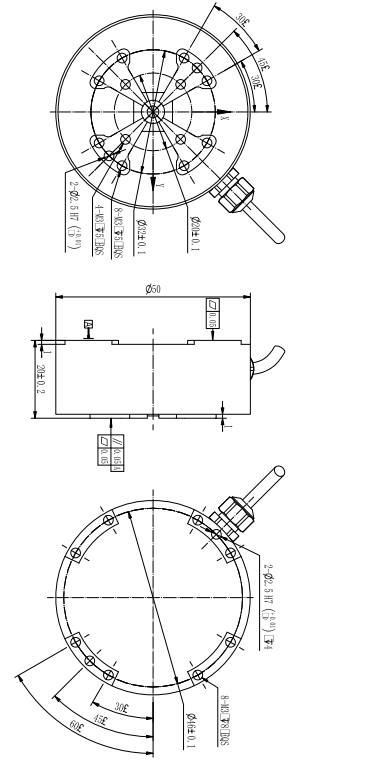

Mounting Dimension

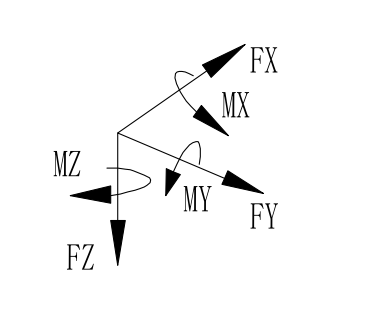

Load Direction
