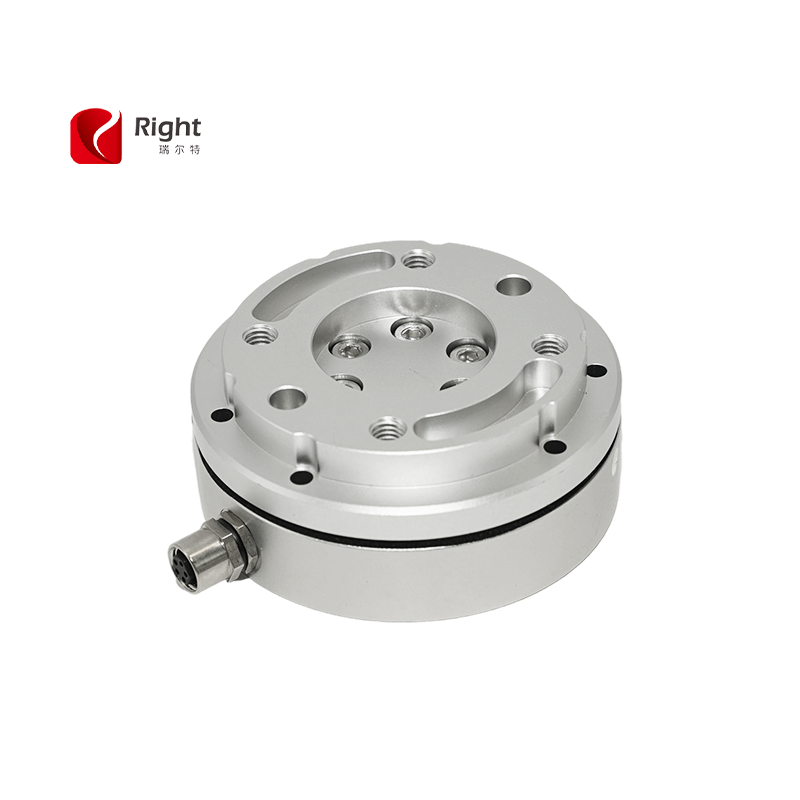

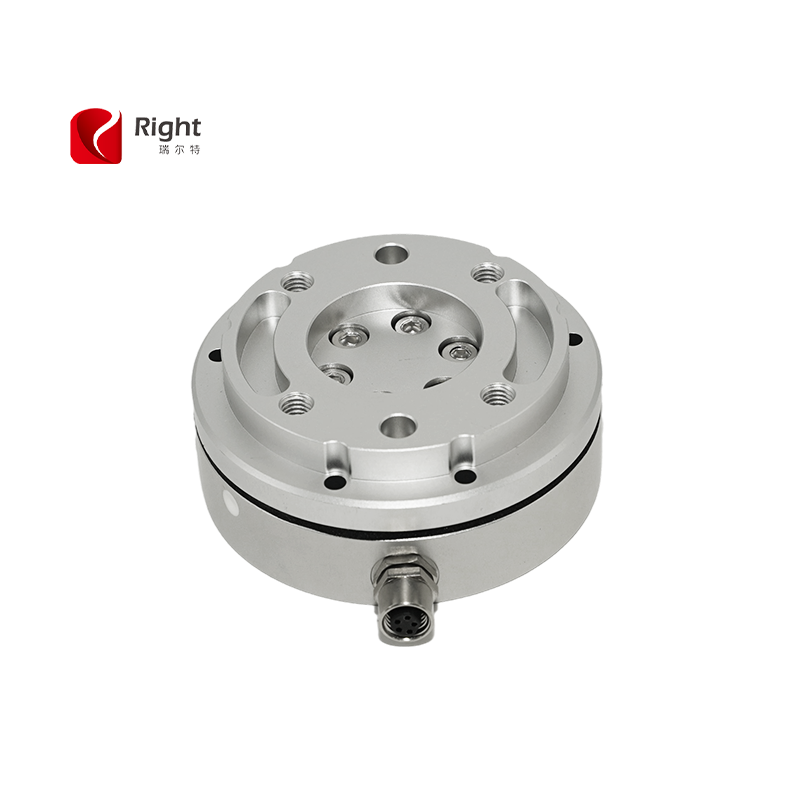

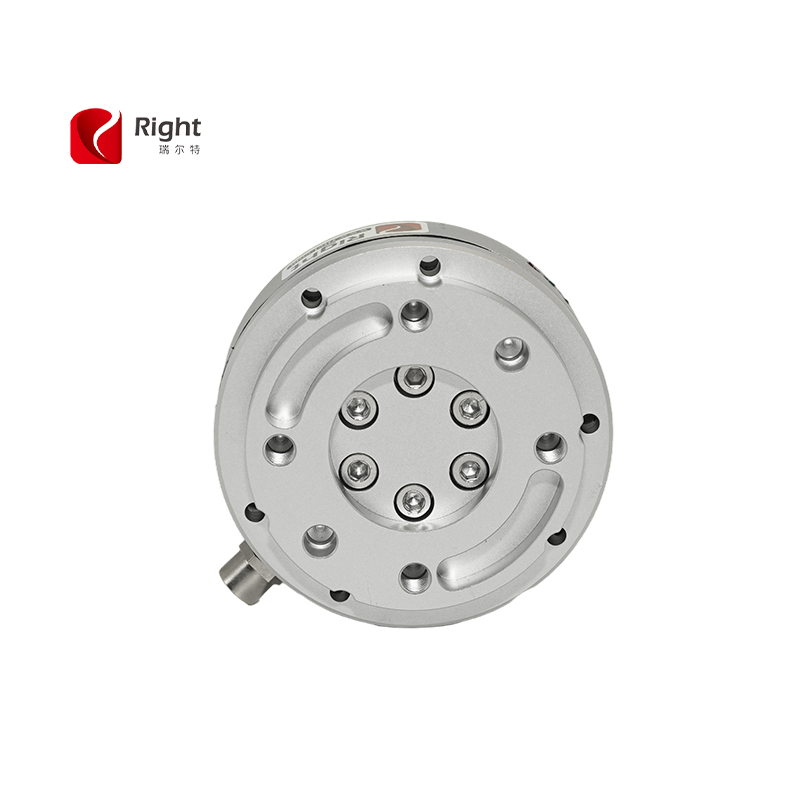

6 Axis Force Sensor T521K
High-strength aluminum alloy
Fixed end with bolts, one-way installation
Built-in 485, Ethercat, EtherCAN output optional, internal digital decoupling, strong anti-interference ability
With indicator light
Product Description
Features & Applications
High-strength aluminum alloy
Fixed end with bolts, one-way installation
Built-in 485, Ethercat, EtherCAN output optional, internal digital decoupling, strong anti-interference ability
With indicator light
| Force Characteristics | Unit | A1 | A2 | A3 | A4 |
| Force Fxy | N | 50 | 200 | 350 | 500 |
| Force Fz | N | 50 | 200 | 500 | 700 |
| Torque Mxy | N-m | 2 | 8 | 12 | 18 |
| Torque Mz | N-m | 2 | 8 | 12 | 18 |
Specifications
| Specifications | Technique |
| Nomial load | See Table |
| output | RS485 |
| Precision | 0.1%F.S. |
| Accuracy | 0.5%F.S. |
| Insulation | ≥2000MQ/50VDC |
| Recommended excitation | 5~12V |
| Maxmum excitation | 15 |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ6X4000mmn |
| Protection class | IP65 |

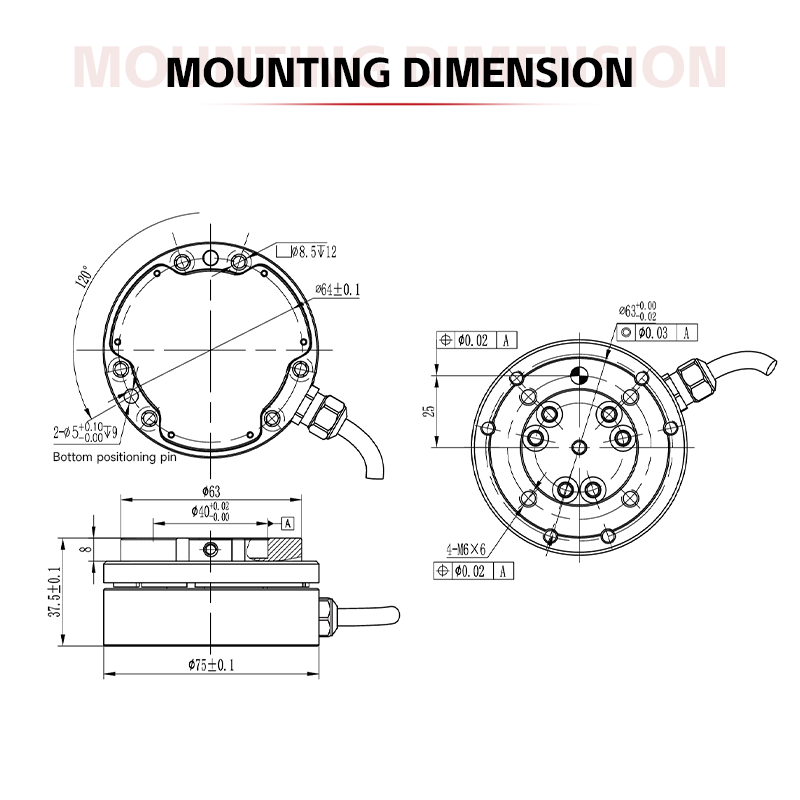

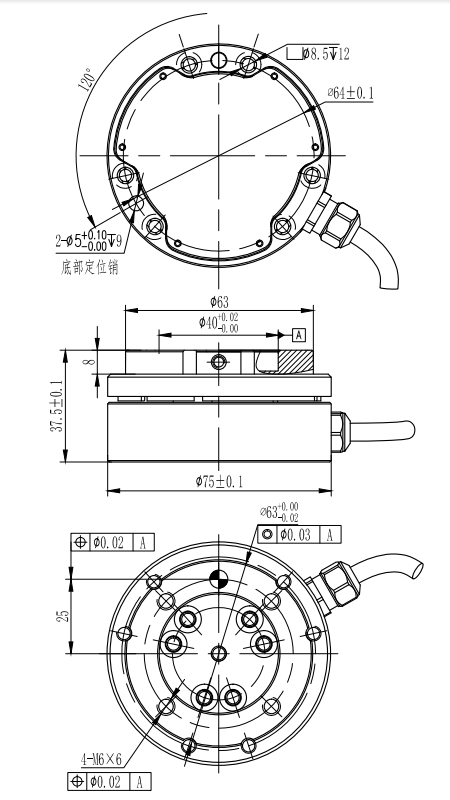

Mounting Dimension
