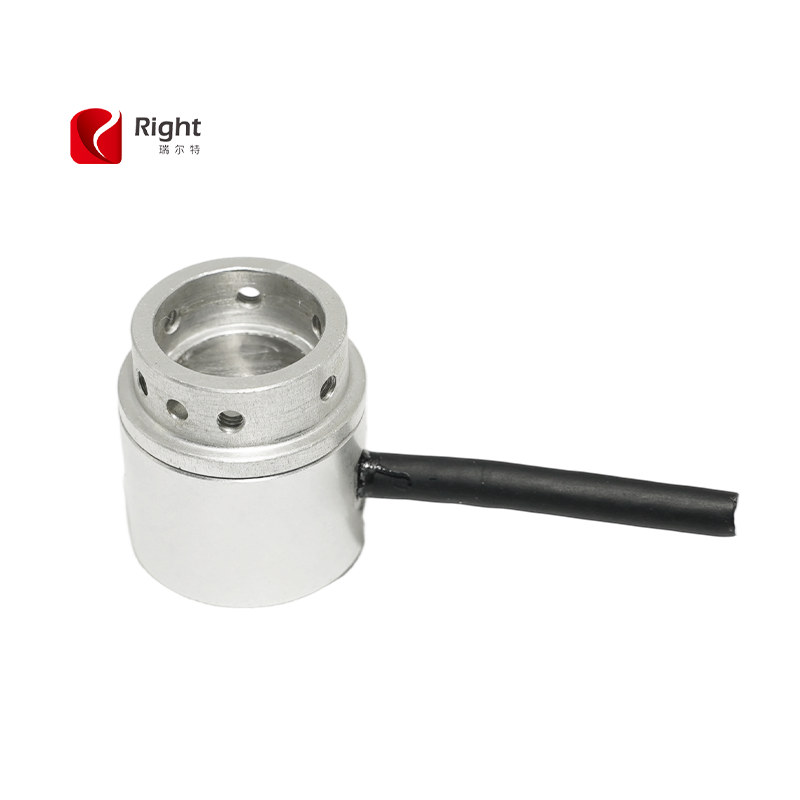

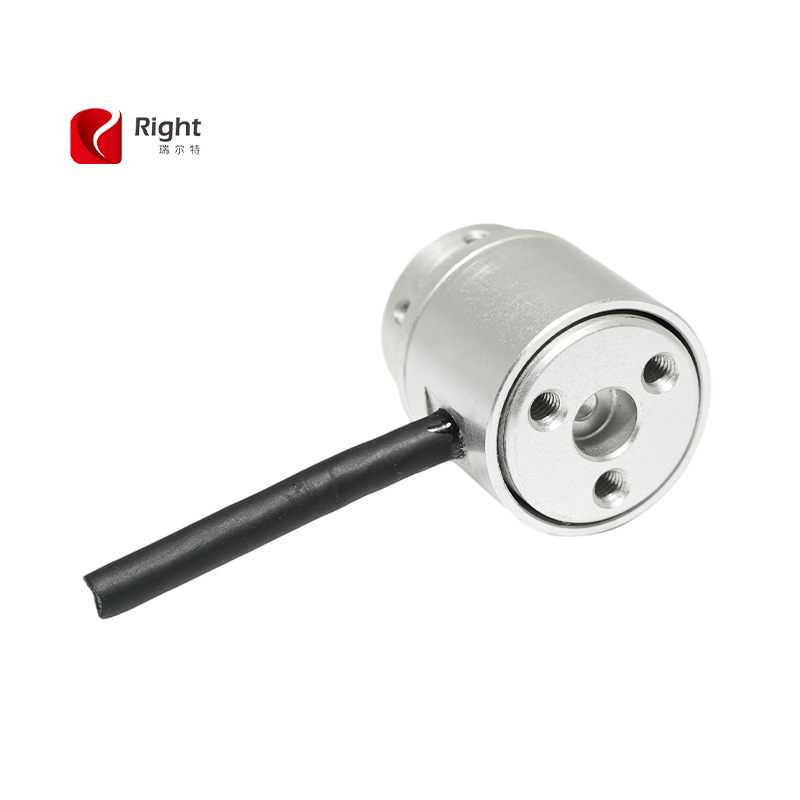

6 Axis Force Sensor T522B
High-strength aluminum alloy material
Small range
Small size design, light weight
Two-way flange installation
Product Description
Features & Applications
High-strength aluminum alloy material
Small range
Small size design, light weight
Two-way flange installation
Specifications
| Specifications | Technique |
| Rated Capacity |
Fx=Fy=20N,FZ=100N Mx=My=Mz=3N.m |
| Zero balance | ±5%mV/V |
| Interaction error | 1%F.S. |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp. effect on output | 0.1%F.S./10℃ |
| Temp. effect on zero | 0.1%F.S./10℃ |
| Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 250%F.S. |
| IP class | IP65 |
| Cable | 4000mm |

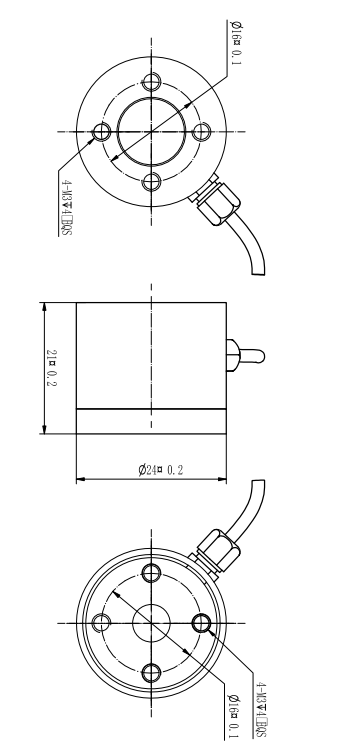

Mounting Dimension
Load Direction

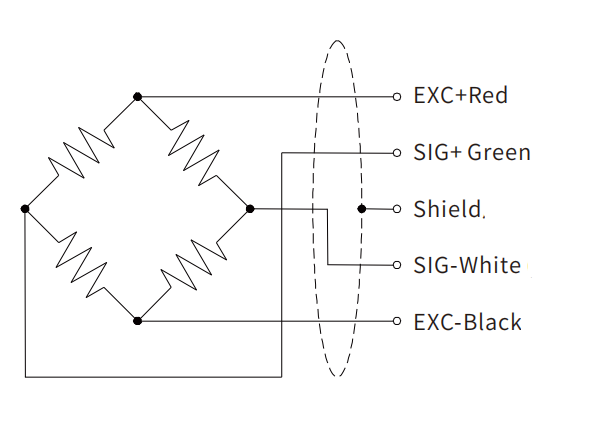

Wiring Code
