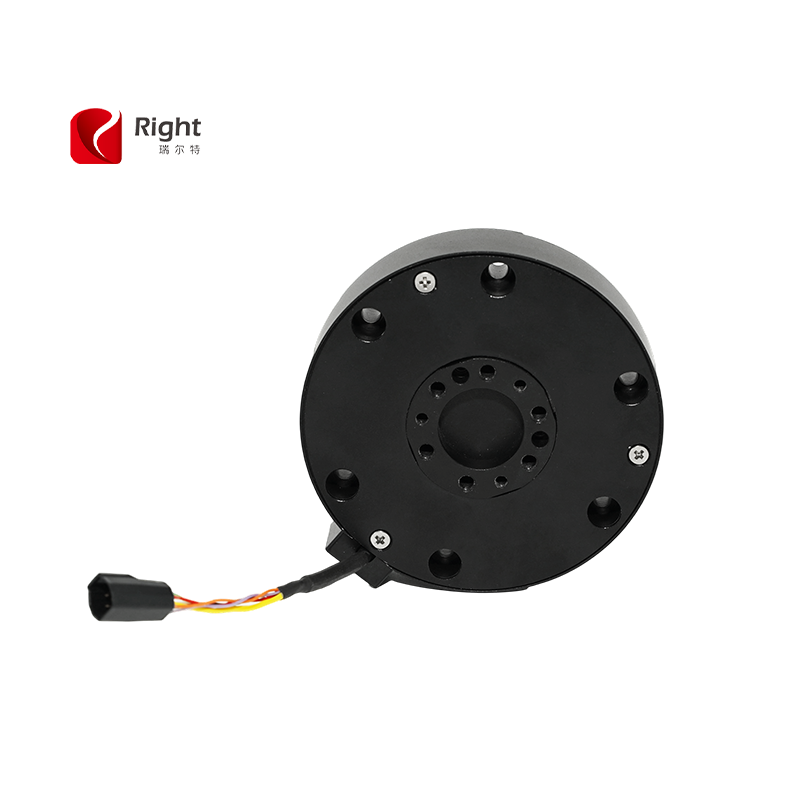

6 Axis Force Sensor T521T85
High-strength aluminum alloy material
Two-way thread installation
5 times overload, strong anti-overload ability
Product Description
Features & Applications
High-strength aluminum alloy material
Two-way thread installation
5 times overload, strong anti-overload ability
With indicator light, with magnetic upgrade interface
Built-in 485, Ethercat, EtherCAN output optional, internal digital decoupling, strong anti-interference ability
Specifications
| Specifications | Technique |
| Rated Capacity | Fx=Fy=200N Fz=400N Mx=My=Mz=12N.m |
| Output mode | Ethercat |
| Distingui shability | Fx=Fy=0.1N,Fz=0.2NMx=My=Mz=0.005N.m |
| Interaction error | 1%FS |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp. effect on output | 0.1%F.S./10℃ |
| Temp. effect on zero | 0.1%F.S./10℃ |
| Insulation | ≥2000MΩ/50VDC |
| Supply Voltage | 12~54VDC |
| Picking rate | 1kHz |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 400%F.S. |
| IP class | IP65 |
| Cable length | φ3.2-75mm |

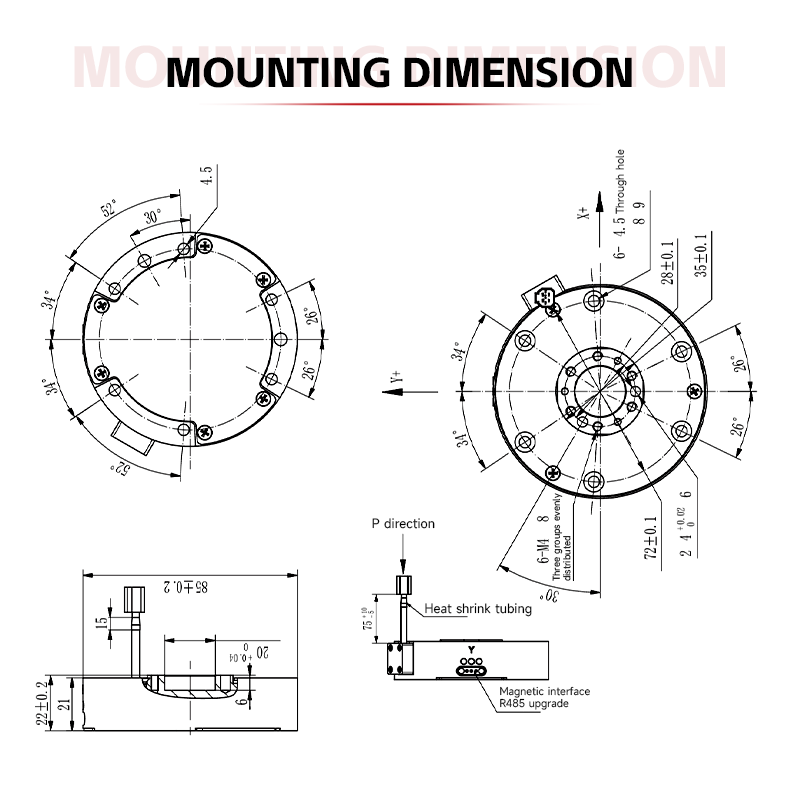

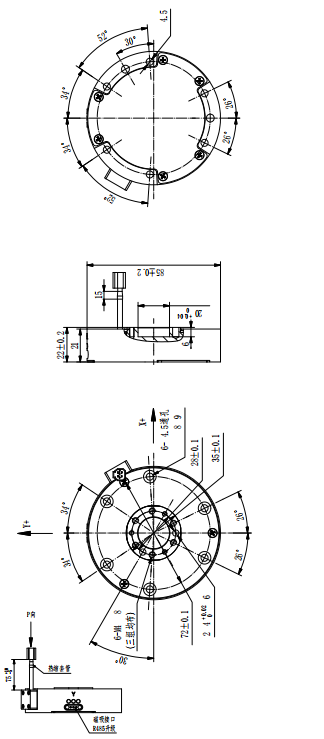

Mounting Dimension

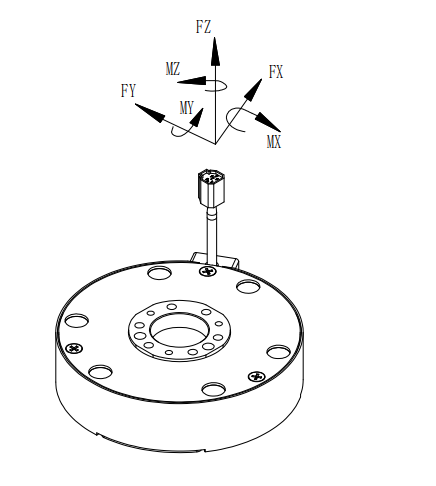

Load Direction
