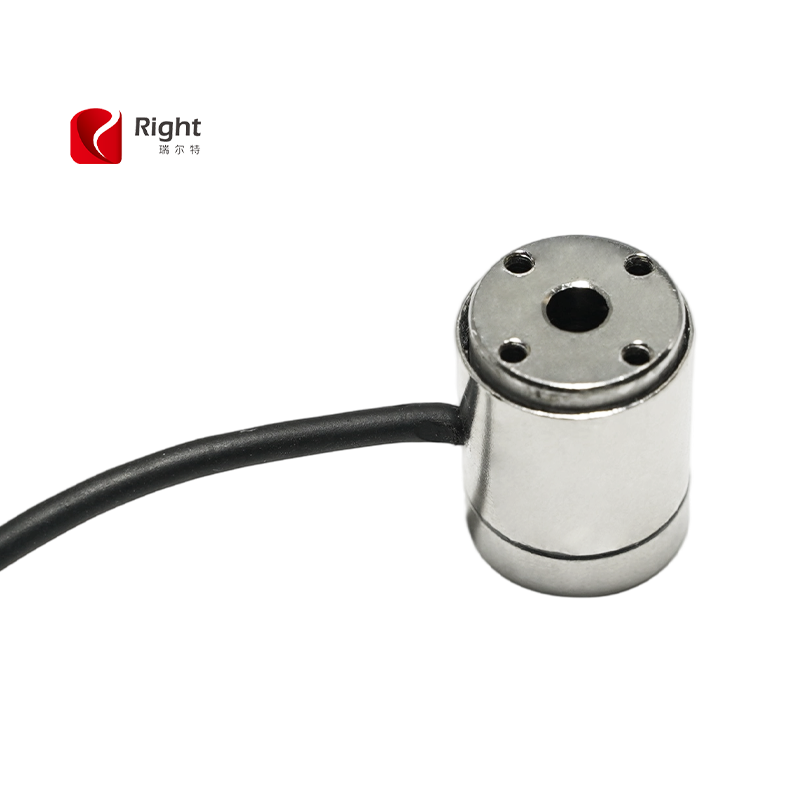

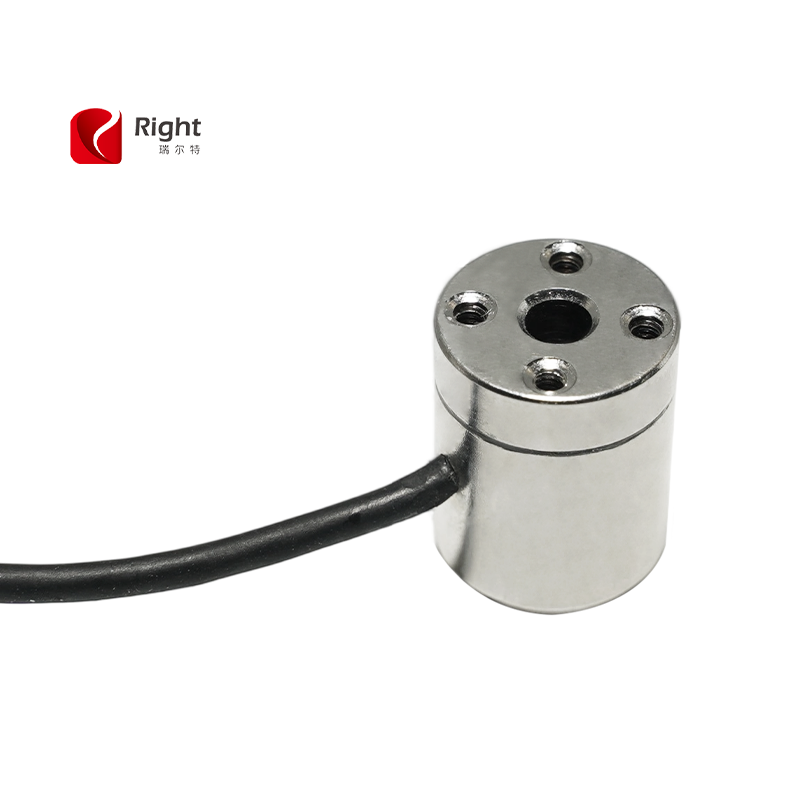

6 Axis Force Sensor T523
High accuracy with strong ability of anti-side force
Easy to install, IP66 protection
Dimension is customizable
Product Description
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install, IP66 protection
Dimension is customizable
Small range, fingertip force test, tooth force test
Specifications
| Specifications | Technique |
| Nomial load |
Fx=Fy=10.20N FZ=10.20N Mx=Mly=3N..m Mz=3N.m |
| Non-linearity | 0.05%F..S.(Fx/Fy/F2) 0.35F.S.(x/My/M2) |
| Repeatability | 0.1%F.S.(Fx/Fy/Fz) 0.2%F.S.(x/My/Nz) |
| Hysteresis | 0.1%F.S.(Fx/Fy/F2) 0.3%F.S..(x/My/M2) |
| Zero balance | 0.1%F.S. |
| Creep30min) | 0.05%F.S. |
| Temp. effect on output | 0.05%F.S./10℃ |
| Temp. effect on zero | 0.05%F.S./10℃ |
| Insulation | ≥5000MQ/100VDC |
| Recommended excitation | 10V |
| Maxmum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Ultimate overload | 200%F.S. |
| Cable size | 4000mm(High-Flex Cable) |
| Material | Stainless Steel |
| Protection class | IP67 |
| communication | Ethernet,/EtherCAT |
Mounting Dimension

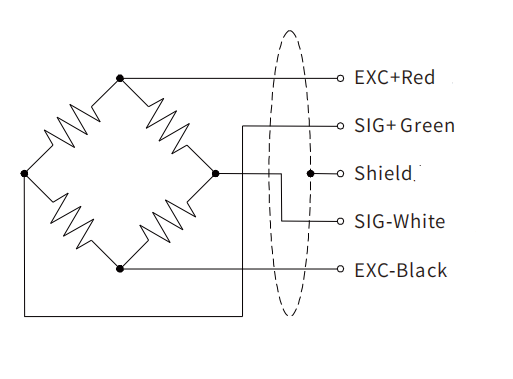

Wiring Code
