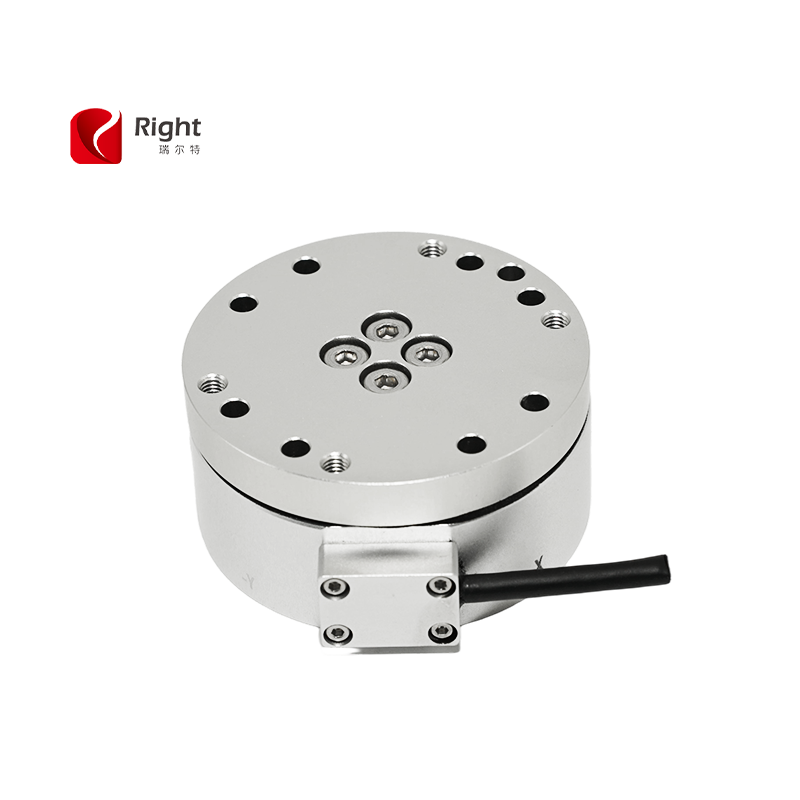

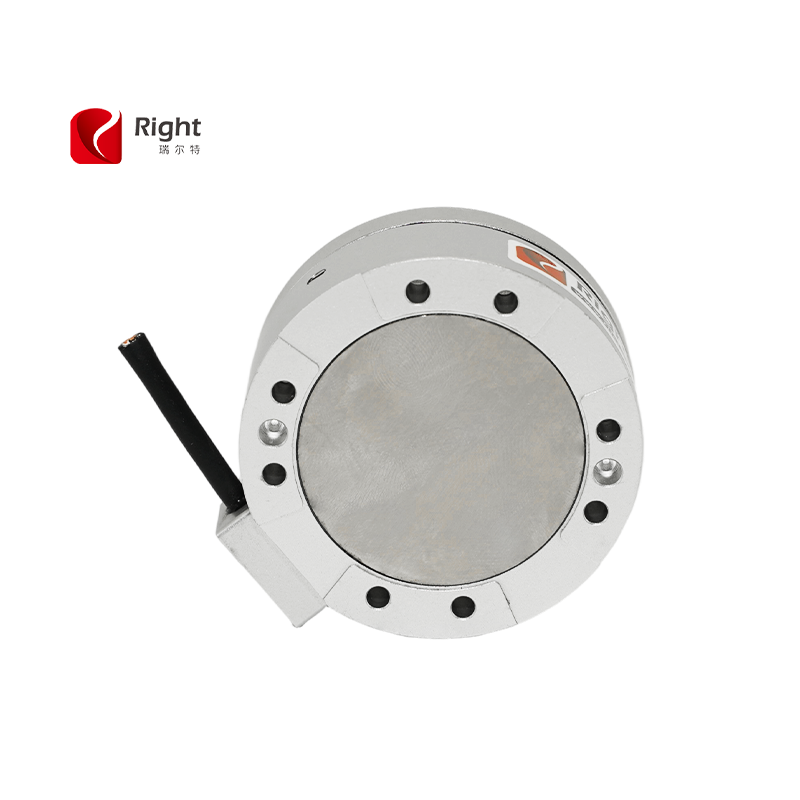

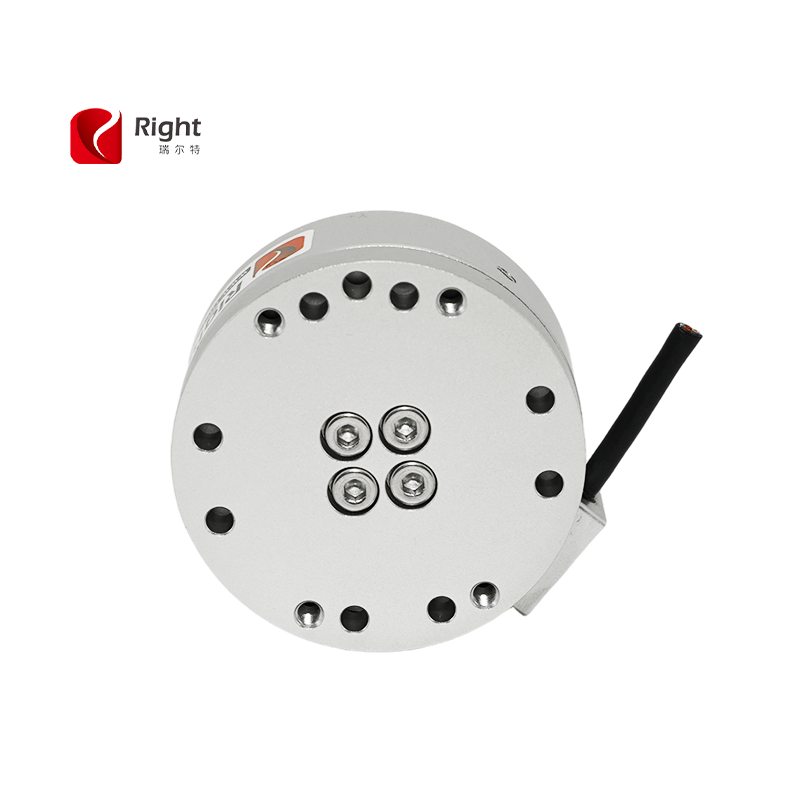

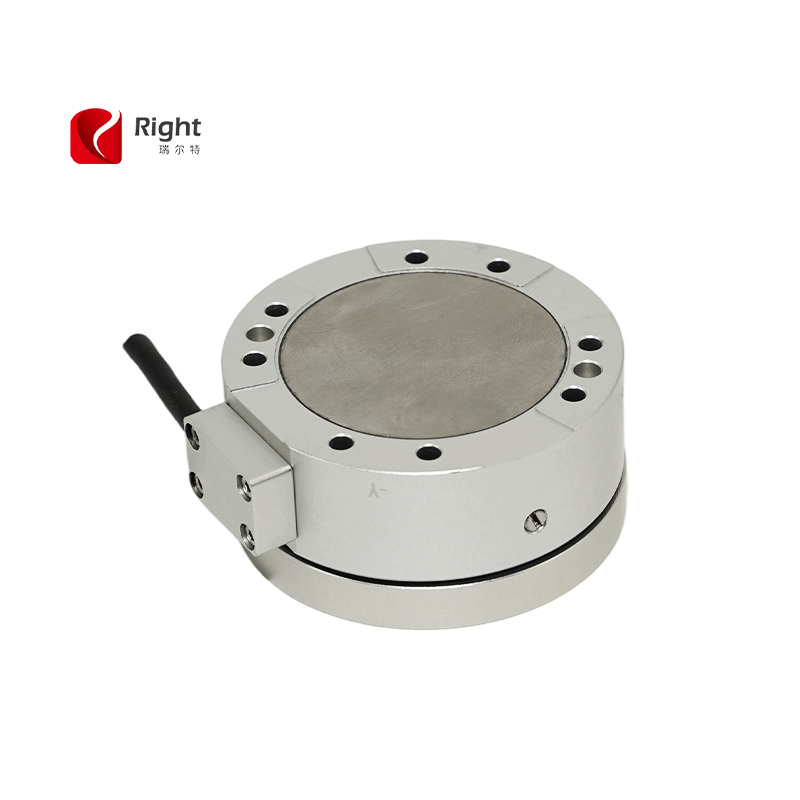

6 Axis Force Sensor T521J11C
High-strength aluminum alloy material
Fixed end with bolts, one-way installation
Strong overload resistance, up to 5 times overload capacity
Product Description
Features & Applications
High-strength aluminum alloy material
Fixed end with bolts, one-way installation
Strong overload resistance, up to 5 times overload capacity
Customizable 20 times overload
Side outlet
Built-in 485, Ethercat, EtherCAN output optional
Internal digital decoupling, strong anti-interference ability
With indicator light and magnetic upgrade interface
| Measurement Range | A | B |
| Fx,Fy(N) | 200 | 500 |
| Fz(N) | 400 | 500 |
| Mx,My(N.m) | 10 | 15 |
| Mz(N.m) | 10 | 15 |
Specifications
| Specifications | Technique |
| Rated Capacity | See table. |
| Output mode | RS485,Ethercat |
| Interaction error | 0.5%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp. effect on output | 0.1%F.S./10°C |
| Temp. effect on zero | 0.1%F.S./10°C |
| Insulation | ≥2000MQ/50VDC |
| Compensated temp range | -10~40°C |
| Operation temp range | -20~80°C |
| Safe overload | 150%F.S. |
| Ultimate overload | 600%F.S. |
| IP class | IP65 |
| Cable length | $3.2-500mm |

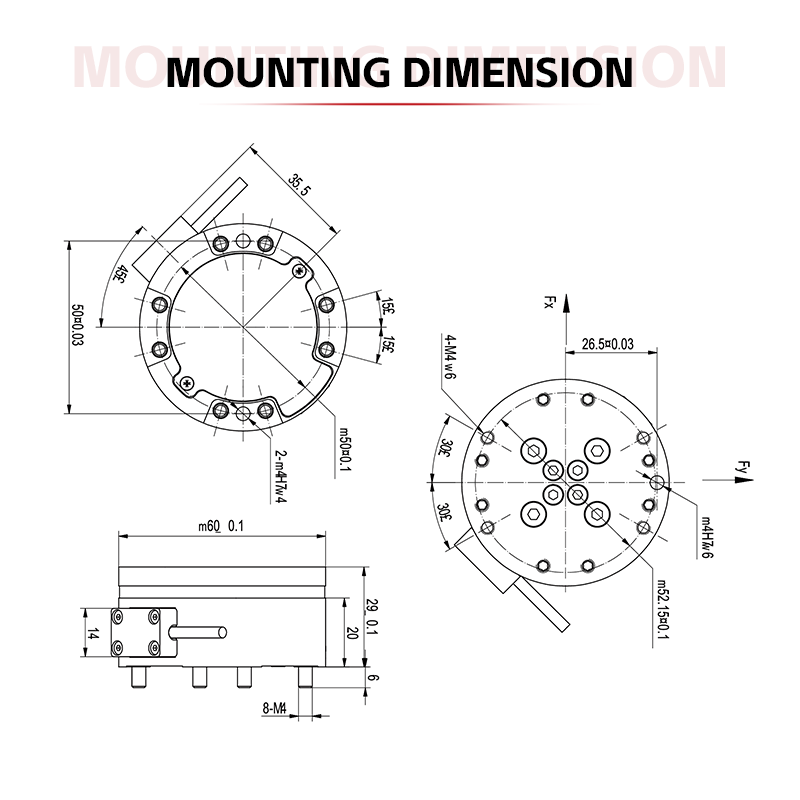

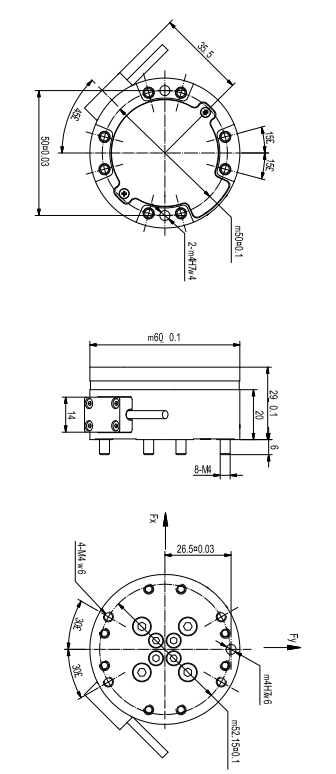

Mounting Dimension

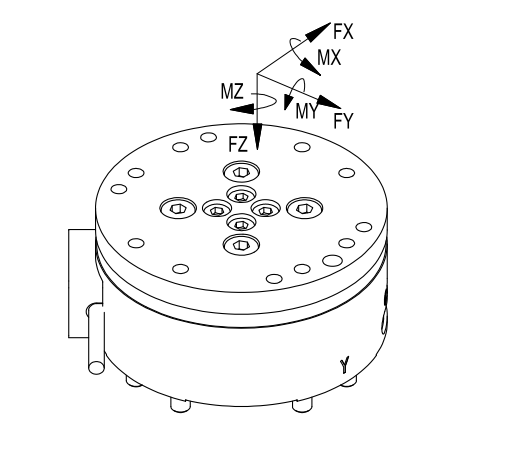

Load Direction
