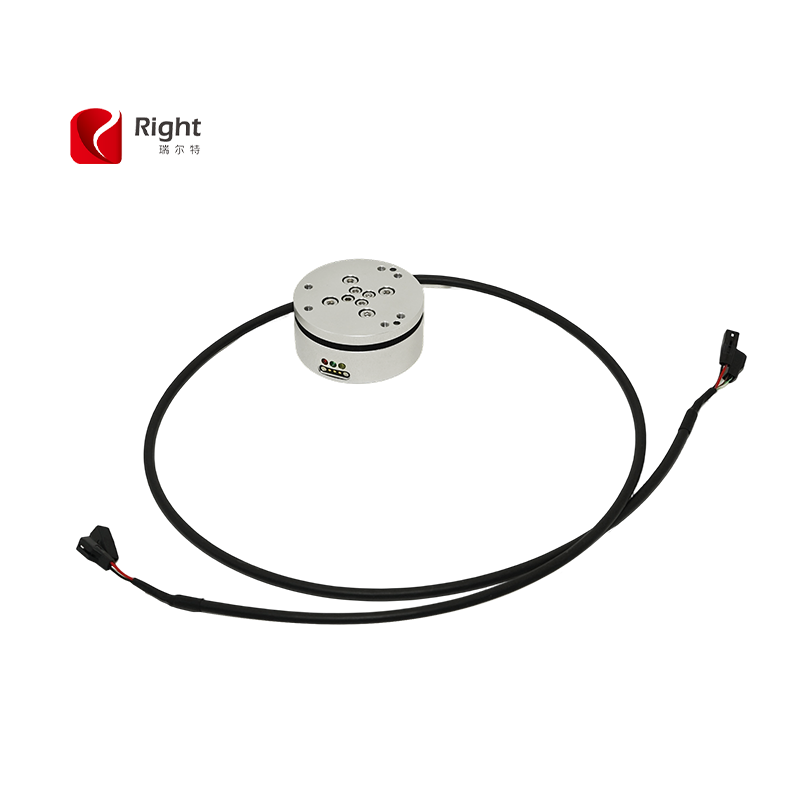

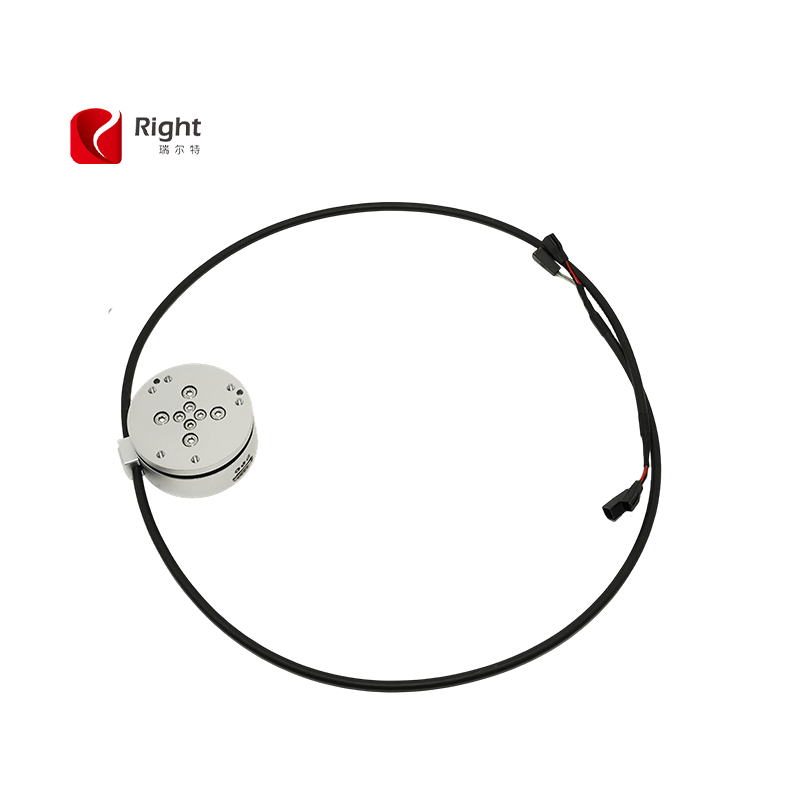

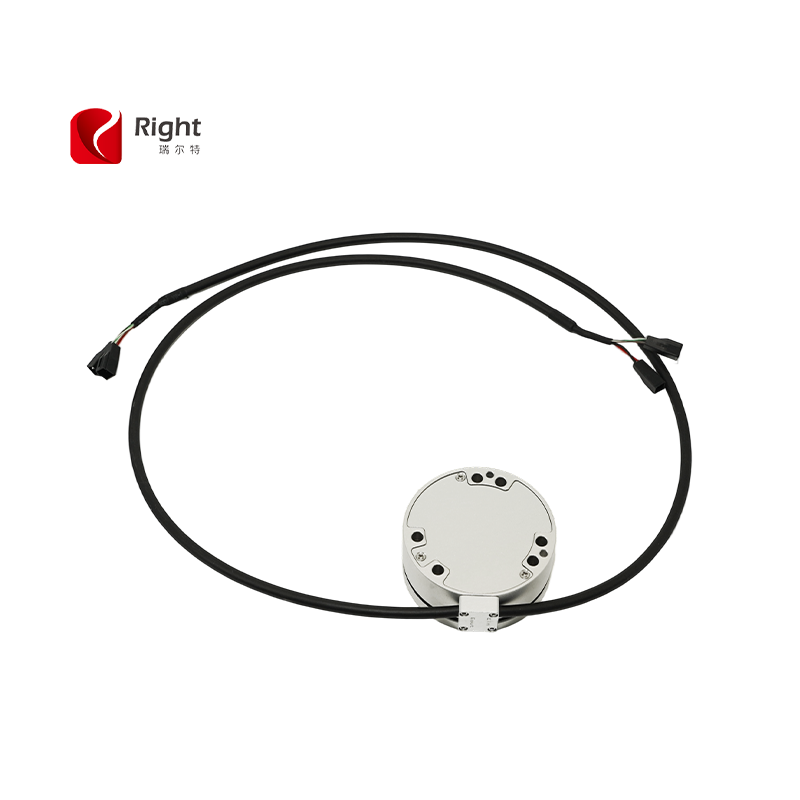

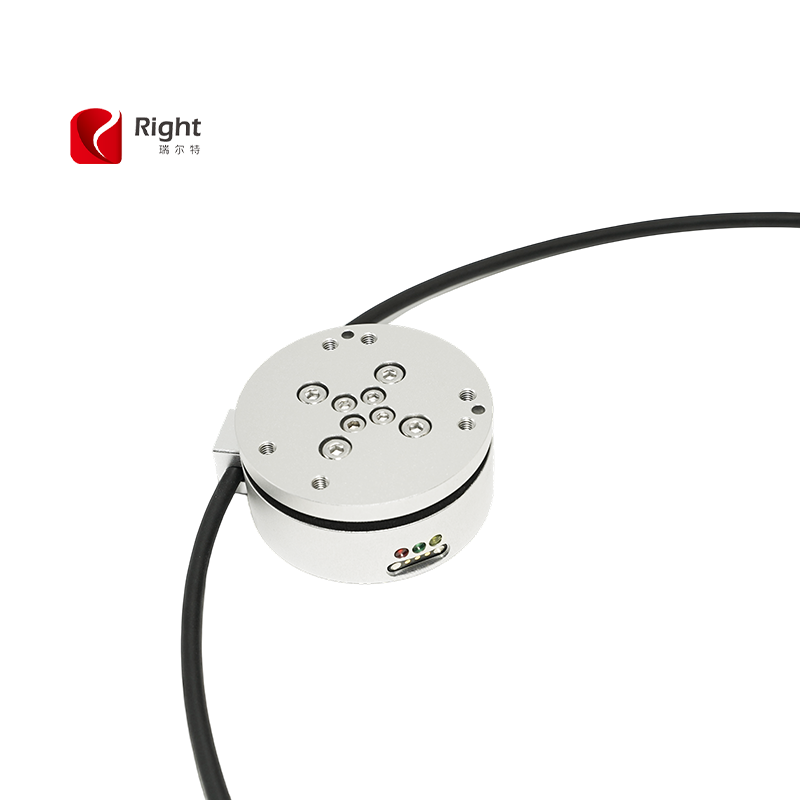

6 Axis Force Sensor T521J11C-D
High-strength aluminum alloy material
Side outlet
One in and one out, can pass 3A high current
CAT cascade
Product Description
Features & Applications
High-strength aluminum alloy material
Side outlet
One in and one out, can pass 3A high current
CAT cascade
Specifications
| Specifications | Technique |
| Rated Capacity |
Fx=Fy=200N Fz=400N Mx=My=Mz=10N.m |
| Output mode | Ethercat |
| Distinguishability | Fx=Fy=0.1N,Fz=0.2N Mx=My=Mz=0.005N.m |
| Interaction error | 1%FS |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp. effect on output | 0.1%F.S./10°C |
| Temp. effect on zero | 0.1%F.S./10°C |
| Insulation | ≥2000M0/50VDC |
| Supply voltage | 10~95VDC |
| Picking rate | 1kHz |
| Compensated temp range | -10~40°C |
| Operation temp range | -20~60°C |
| Safe overload | 200%F.S. |
| Ultimate overload | 500%F.S. |
| IP class | IP65 |
| Cable length | 2-φ4.5*500mm |

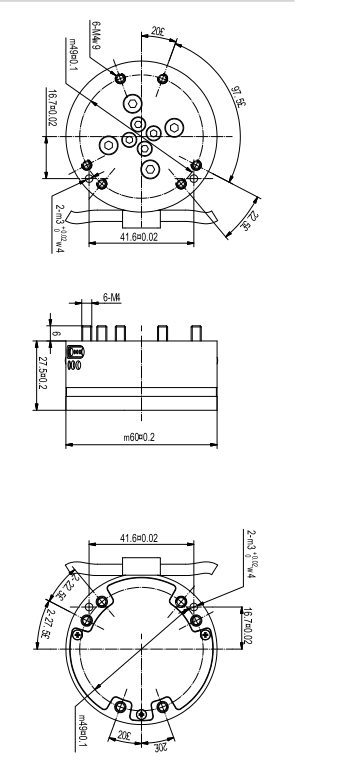

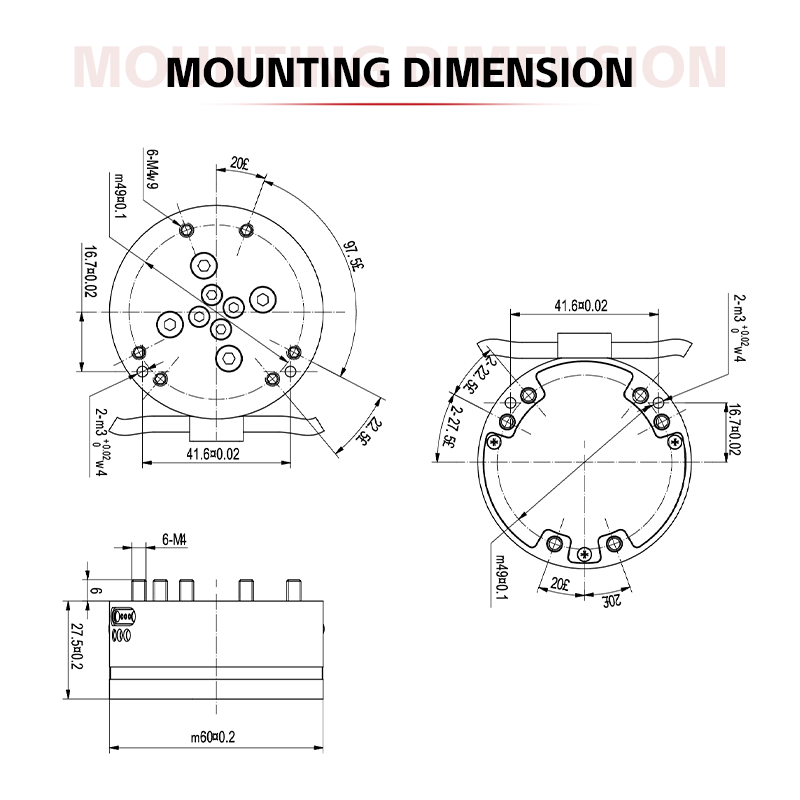

Mounting Dimension

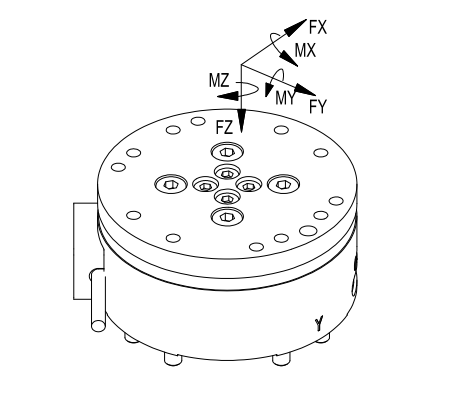

Load Direction
