PRODUCTS

Option

8-way input/12-way output

POFIBUS DP output

4-20mA analog output

100M industrial Ethernet interface

Product description

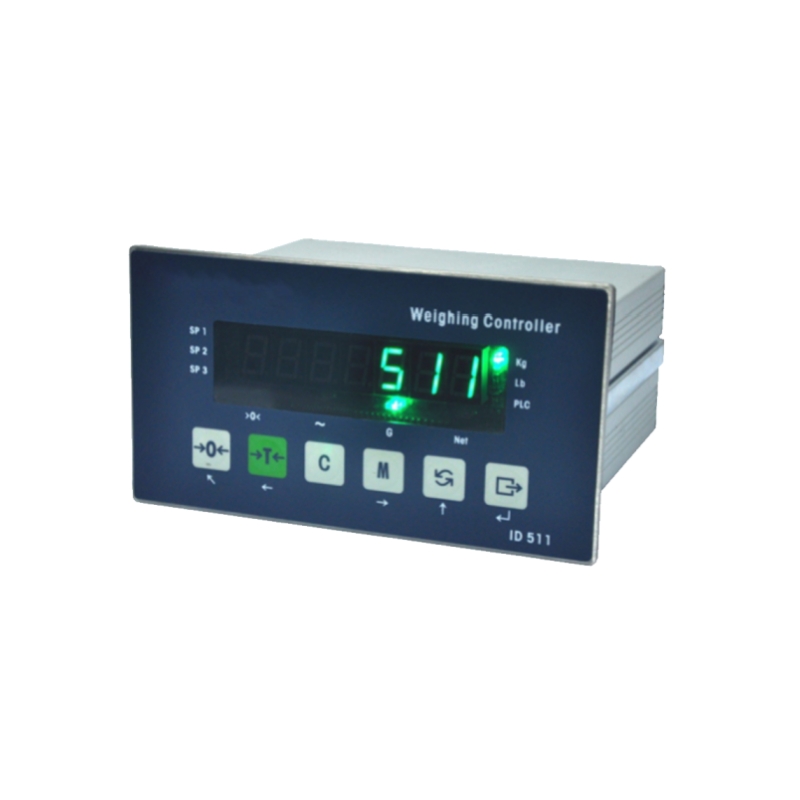

ID511 weighing display controller, high precision, high reliability, rich communication interface, meet the complex and harsh industrial weighing control needs, suitable for weighing measurement display, batching control, fixed value control and other occasions in chemical hazardous occasions.

Support three installation methods: panel type, dustproof type, explosion-proof

Dustproof and explosion-proof types support 7-digit 1-inch (storage word height 25.4mm) green or red

LED display, 10 status indicators. Panel type supports 7-digit 0.56-inch (storage word height

14.2mm) color or red LED display, 10 status indicators.

150,000 high display accuracy, 6000e CMC metrology certification accuracy 200Hz A/D sampling speed, 200 times/second fixed value comparison speed 5-level dynamic digital filtering, high vibration dynamic filtering

Basic configuration: RS232, RS485, optional various fieldbus output modules, to achieve

seamless connection with PLC and process control system

With weight-free digital calibration function, to solve the calibration problem of large silos

Explosion-proof grade: EXD IIB T4

Product characteristics

Flameproof type: can be used in zone 1,2,21,2

The maximum rate of ad is 200 times/s

150000 high display accuracy

RS232,rs485100m Ethernet output

1 inch LED display,green and red

Through PROFIBUS,MODBUS_RTU,4-20mA,Modbus-TCP interface output weight and flow at the same time

Support3 sets of PROFIBUS GSD

Ethernet supports UDP,TCP,Modbus-TCP

Calibration without removing code

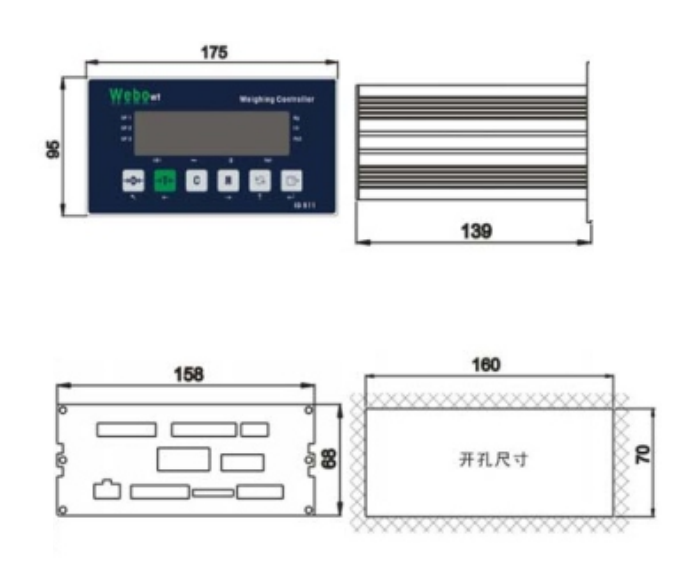

Mounting Dimension

FAQ

Do you provide sample? Free or charge?

We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer

What is your MOQ?

The MOQ is usually 5 to 10 pieces

Are you a trading company or a manufacturer?

Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.

How long is your delivery time?

4-6 weeks, depending on the situation

What is your terms of payment?

T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your sample policy?

We can supply the sample if we have ready parts in stock.
