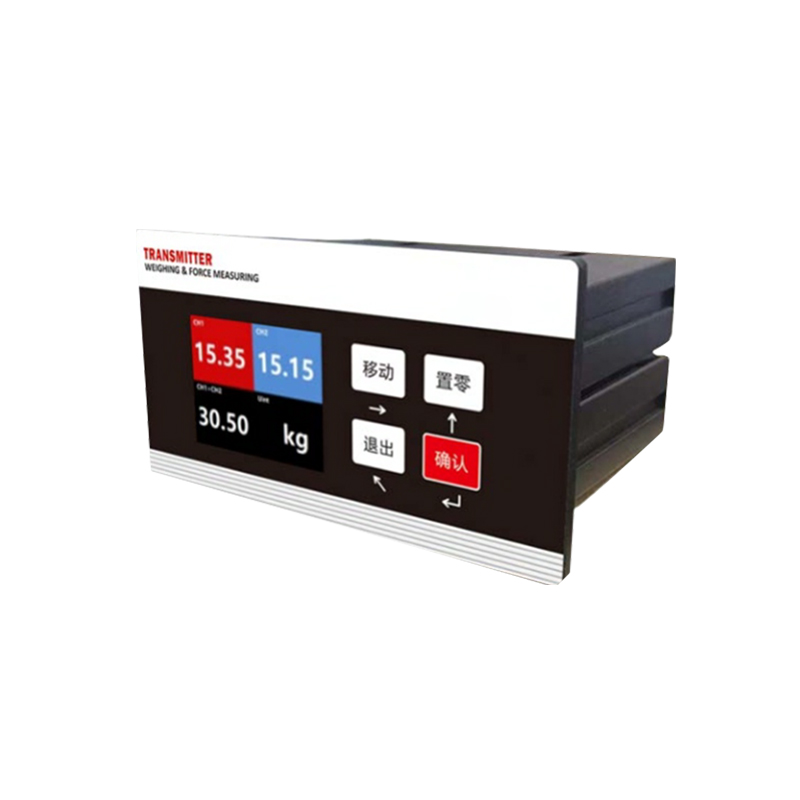

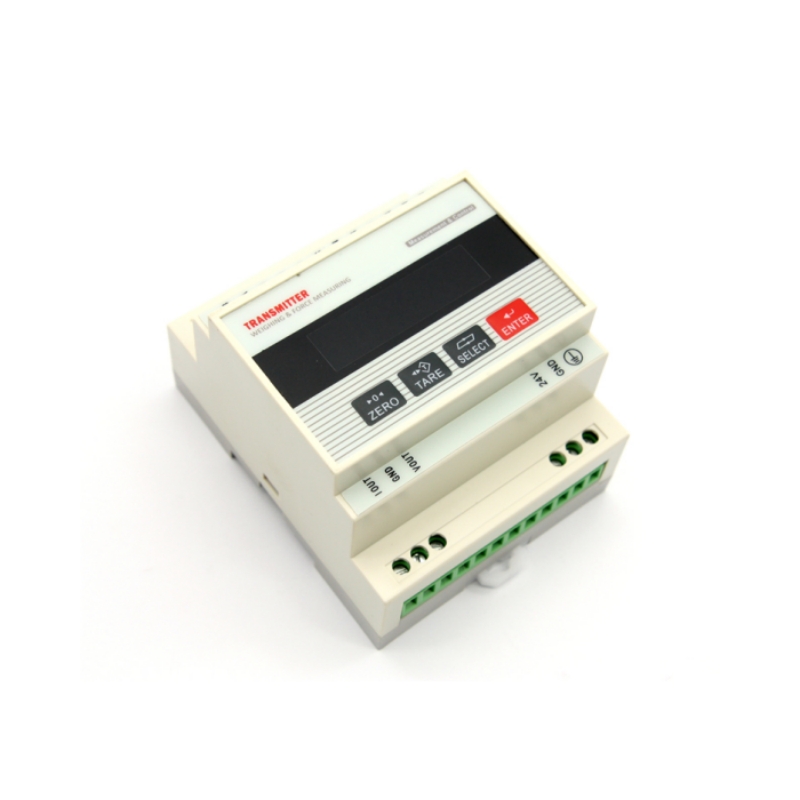

Digital indicator T094H
Use for turning the analog force signal to digital output the standard analog output signal and simple control of the occasion
Analog output signal could be0-20mA,4-20mA,0-10V,1-5V, digital communication interface as RS485 or RS232
Product Description
Features&Applications
Use for turning the analog force signal to digital output the standard analog output signal and simple control of the occasion
Analog output signal could be0-20mA,4-20mA,0-10V,1-5V, digital communication interface as RS485 or RS232
Dual 6-digit LED digital tube shows real-time measurement peak,output current value,I/Ostatus information
Controller with the upper,middle and lower limits judgment
1/04input and 6 output,you can customize the input and output port function
Can be driven by the host computer controller output, can be part of the alternative PLC
DC24V power supply,voltage±5V,more secure and stable
Dimension of panel is only71.5mm(width)×86.8mm(high)
Specifications
| Specifications | Technique |
| Display | OLED display, can display four lines of Chinese characters |
| Readability | 1/90000 |
| Output linear | <0.002% |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | >3000 times/second |
| Accept sensor | -3.6~+3.6 mV/V |
| Input load | 1~8 350Ω sensors |
| Output specification | 0~20mA、4~20mA、0~24mA、 0~5V、0~10V、-5V~+5V、-10V~+10V |
| Temp.effect on output | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Nominal range of excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operating temperature range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Plastic Shell |
| IP Class | IP65 |

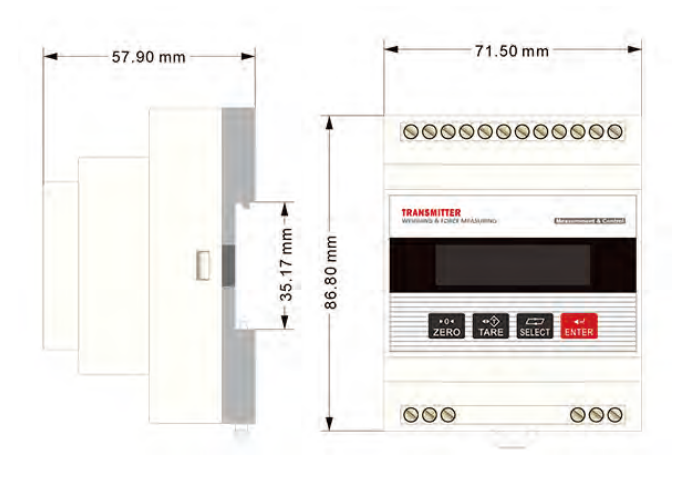

Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
