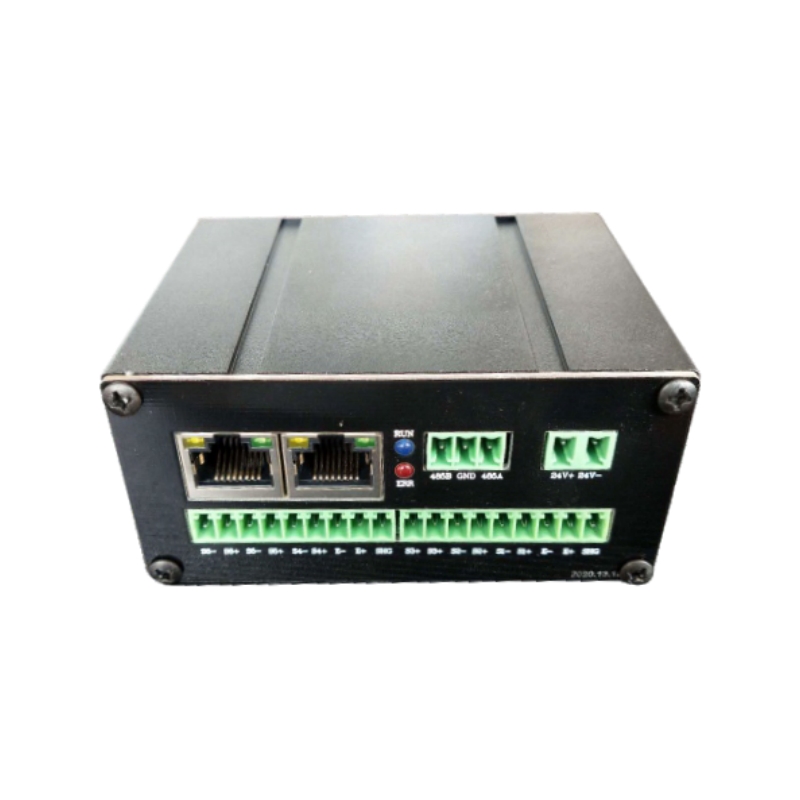

T095-CADUT Digital indicator
1-6 weighing acquisition channels
standard EtherCAT communication
wide power supply(9-24vdc)
Product Description
Product characteristics
1-6 weighing acquisition channels
standard EtherCAT communication
wide power supply(9-24vdc)

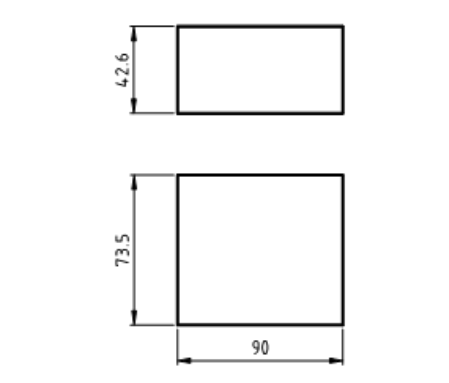

Installation dimension
| Comprehensive accuracy | 0.01% |
| Verification division number | 10000e |
| Measurement sensitivity | ≥0.5μV/e |
| Minimum sensitivity | 0.02 |
| Measurement signal range | ±3.0mV/V |
| Maximum signal input range | ±5.0 |
| Bridge power supply | 5v±1%VDC |
| Measurement resolution of rated input signal | 1:1000000 |
| Measurement rate | 100/200/400/800/1600times/second |
| Bus protocol | EtherCAT |
| Interface type | Industrial Ethernet |
| Data transmission rate | 100Mb/s |
| Fault display | ERR display (LED〿 |
| Status display | RUN display (LED〿 |
| Connection method | 2*RJ45 |
| Working power supply voltage | 9〿24 |
| Working temperature range | -30..+65℃ |
Sensor interface
| Mark | SHG | E+ | E- | S1+ | S2+ | S2- | S3+ |
| Name | Shielded | wire Sensor excitation positive terminal | Sensor excitation negative terminal | Sensor 1 signal positive terminal | Sensor 2 signal positive terminal | Sensor 2 signal negative terminal | Sensor 3 signal positive terminal |
| Mark | S3- | S4+ | S4- | S5+ | S5- | S6+ | S6- |
| Name | Sensor 3 signal negative terminal | Sensor 4 signal positive terminal | Sensor 4 signal negative terminal | Sensor 5 signal positive terminal | Sensor 5 signal negative terminal | Sensor 6 signal positive terminal | Sensor 6 signal negative terminal |
Power supply interface
| Label | 24V+ | GND |
| Name | Power input positive terminal | Power input negative terminal |
Equipment status description
| Indicator | Status | Description |
| RUN indicator | Always off | The device is working in INIT state |
| Slow flashing | The device is working in PRE-OP state | |
| Single flashing | The device is working in SAFE-OP state | |
| Always on | The device is working in OP state | |
| Err indicator | Always off | No error |
| Slow flashing | Invalid configuration | |
| Single flashing | Local error | |
| Always on | Application layer controller error |
