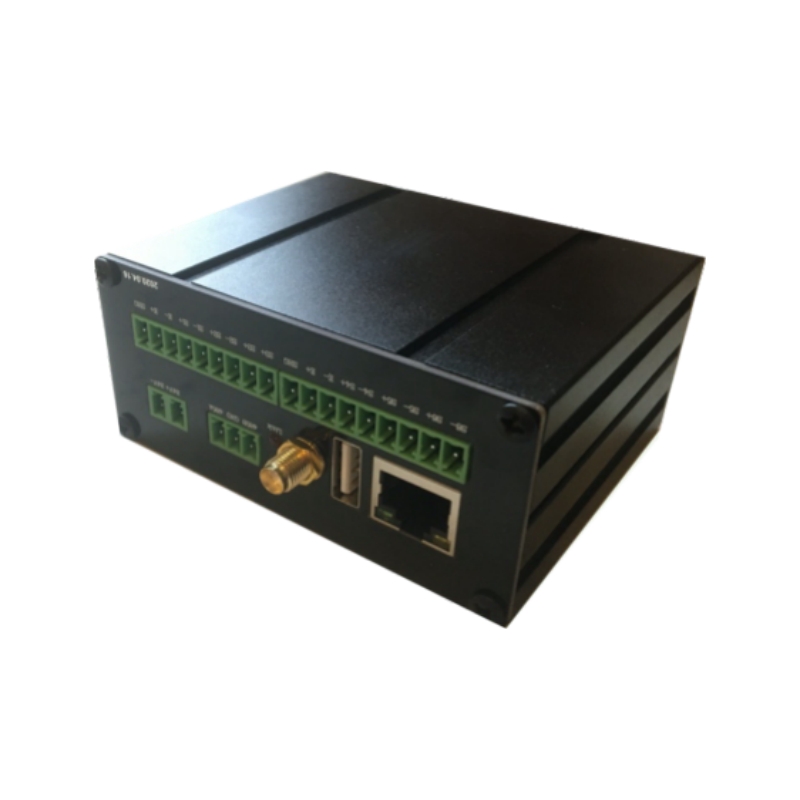

T095-WIFI-NEDUT Digital indicator
1-6 weighing acquisition channels
Standard Ethernet communication
Standard WiFi communication
Wide power supply(9-24vdc)
Product outline drawing
Product Description
Product characteristics
1-6 weighing acquisition channels
Standard Ethernet communication
Standard WiFi communication
Wide power supply(9-24vdc)

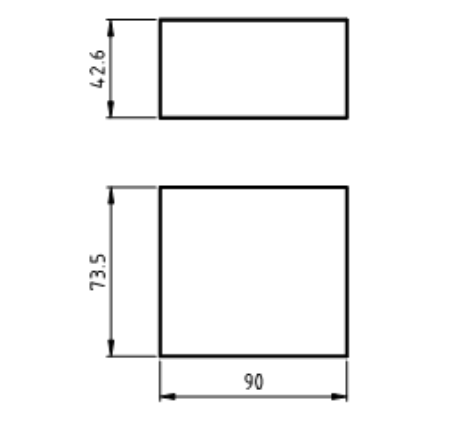

Product outline drawing
Installation dimension
| Comprehensive accuracy | 0.01% |
| Verification division number | 10000e |
| Measurement sensitivity | ≥0.5μV/e |
| Minimum sensitivity | 0.02μV/e |
| Measurement signal range | ±3.0 |
| Maximum signal input range | ±5.0mV/V |
| Bridge power supply | 5v±1%VDC |
| Measurement resolution of rated input signal | 1:1000000 |
| Measurement rate | 100/200/400/800/1600times/second |
| Bus protocol | EtherCAT |
| Interface type | Ethernet |
| Data transmission rate | 100Mb/s |
| Fault display | Link display (LED〿 |
| Status display | RUN display (LED〿 |
| Connection method | 1*RJ45 |
| Connection method | 1*USB |
| Working power supply voltage | 9〿24℃ |
| Working temperature range | -30..+65℃ |
FAQ
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
