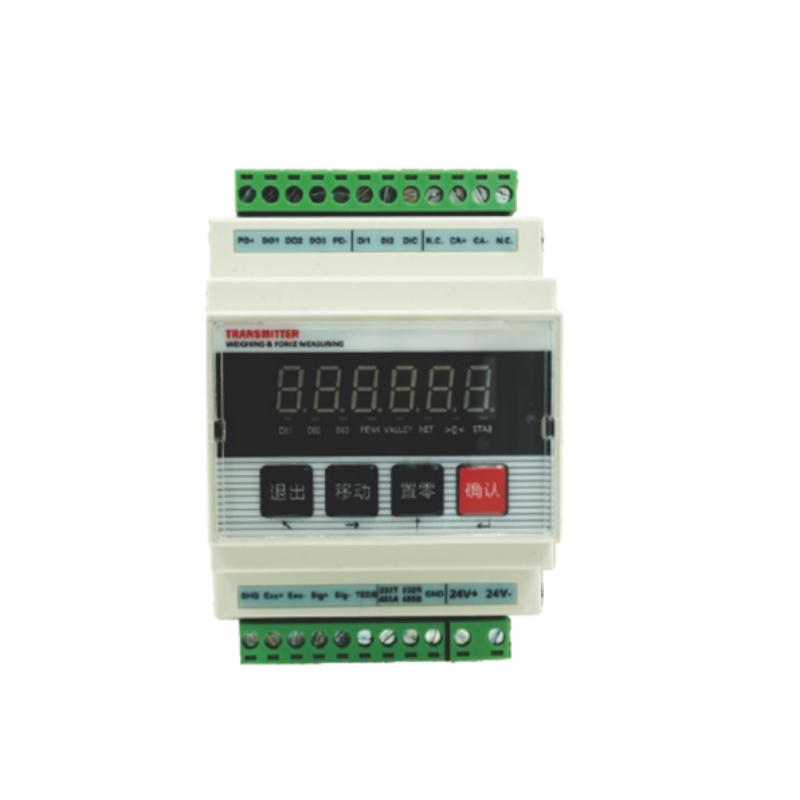

Digital indicator T094W
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
Analog output signal could be 4~20mA、0~±10V
Product Description
Features&Applications
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
Analog output signal could be 4~20mA、0~±10V
Digitalcommunication interface as RS485 or RS232
Multiple filtering and debugging modes make it easier to obtain the target value
Power supply and signal are isolated,strong anti-interference,more stable data acquisition and output
LED display,showing real-time weight value,peak value,etc
Comparable output,peak capture,peak comparison output
Non-weight calibration,TEDS automatic calibration
High-speed sampling and fast display
DC24V power supply,voltage±10%,more secure and stable
35mm standard industrial DIN rail
Specifications
| Specifications | Technique |
| Display | Low power LED display |
| Output linear | <0.01% |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | >100-400 times/second |
| Accept sensor | ±30mV |
| Input load | 1~8 350Ω sensors |
| Output specification | 4~20mA、0~±10V |
| Temp.effect on output | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Nominal range of excitation voltage | 5VDC |
| Power supply | 24±10%VDC |
| Power waste | ≤8W |
| Communication interface | Isolated RS232/485 |
| Switchin |
Switching:2 switching input 3 switching output(OC) |
| Operation temp range | -40-85℃ |
| Weight approx. | 0.5kg |
| Material | Plastic Shell |
| IP Class | IP64 |

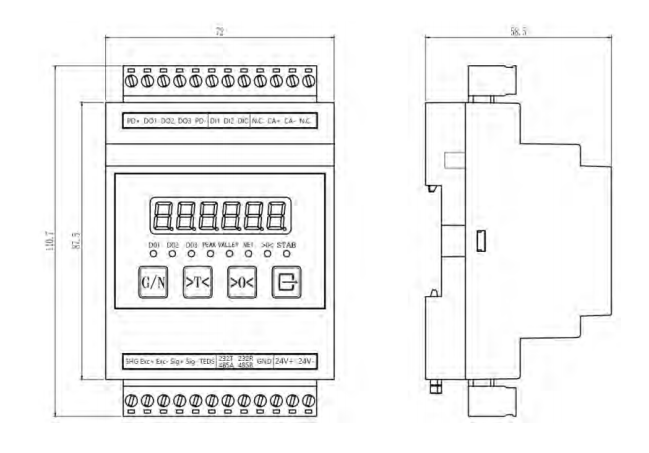

Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
