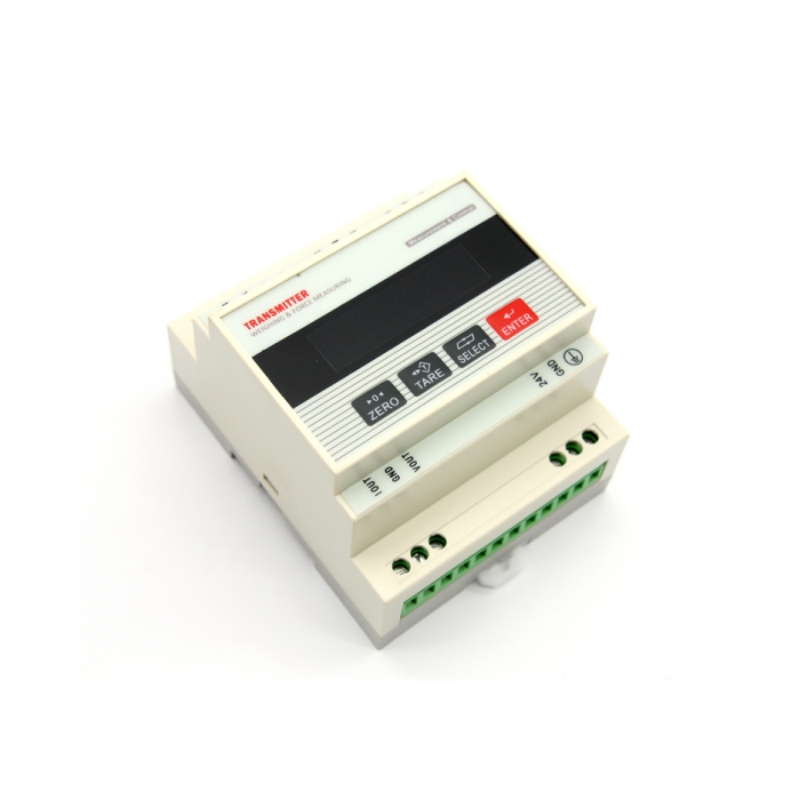

Digital indicator T093C-1
2 independent sensor channels

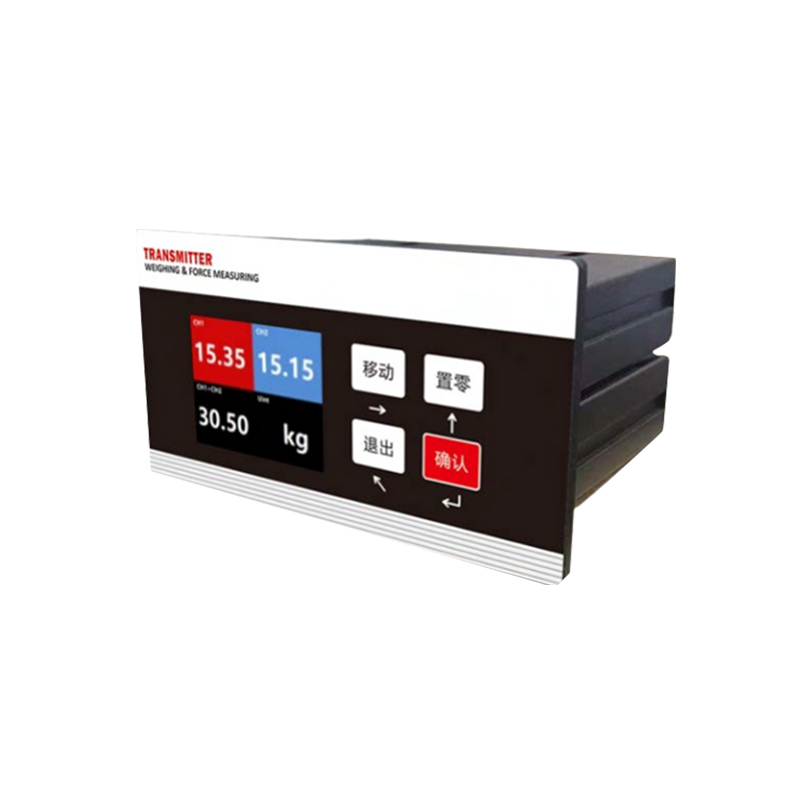

left tension,right tension and resultant force
10kHz high speed sampling
Product Description
Features&Applications
2 independent sensor channels
left tension,right tension and resultant force
10kHz high speed sampling
analog output 0-10V3-20ma
MODBUS-RTU,can output
Technical specifications
| Measurement sensitivity | V/e | ≥0.5 |
| Minimum sensitivity | 0.02 | |
| Measurement signal range | mV/V | ±2.0 |
| Maximum signal input range | ±5.0 | |
| Bridge power supply | VDC | 5±1% |
| Measurement resolution of rated input signal | 1:1000000 | |
| Linear calibration | Segment | 5 |
| Measurement rate | times/second | 20k;10k;5k;2k;1k |
| Digital filter cutoff frequency | Hz | 10k;..0.1k |
| Communication interface | CAN2.0/RS485 | |
| Software protocol | CANopen/MODBUS RTU | |
| Working power supply voltage | VDC | 18-30 |
| Dimensions | mm | 110×60×80 |
| Protection, anti-interference | Anti-reverse connection, anti-overvoltage, anti-overcurrent, anti-surge | |
| Signal processing function | Digital calibration, zeroing, zero tracking, anti-shake filtering |
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
