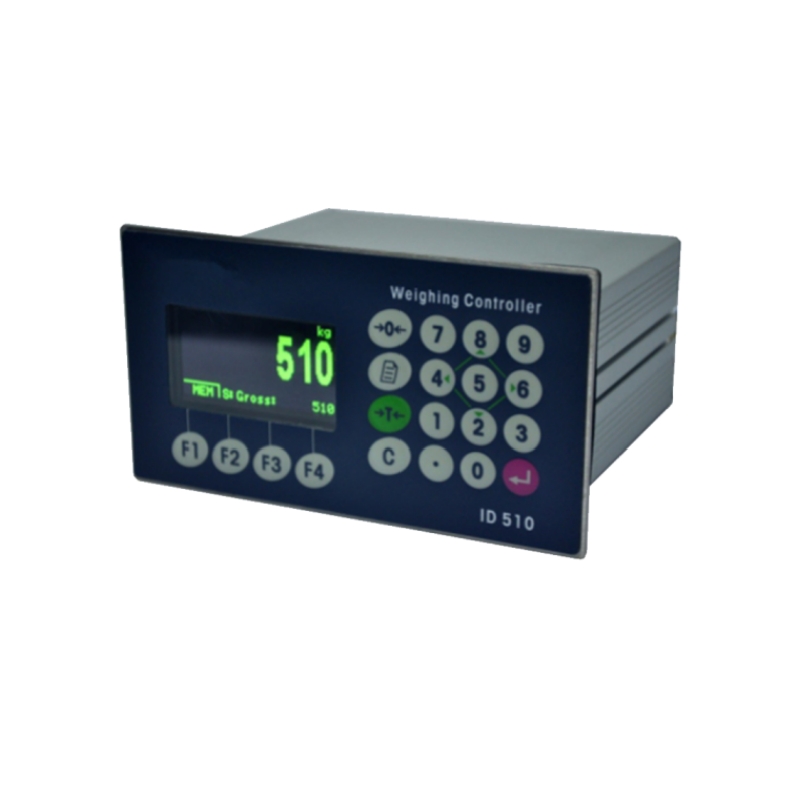

Digital indicator T062
Main applications:fixed value control,weight transfer transmission,checkweigher application,packaging application,filling application,multiple ingredients and other applications
Product Description
Product characteristics
Main applications:fixed value control,weight transfer transmission,checkweigher application,packaging application,filling application,multiple ingredients and other applications
Standard 2 serial ports(RS232+RS232/485)
Support 100M Ethernet communication,support MODBUS-RTU,MODBUS-TCP communication
OLED dot matrix display,green,Chinese display menu or English display menu
Remotely configure parameters,calibrate scales and lock the keyboard via serial port,PLC option interface and Ethernet port
Option interface
8input/12 output option board,PROFIBUS-DP option board
4~20mA analog output option board
CC-LINK option board,PROFINET option board
The controller power supply adopts AC86~264VAC,and the loss of the whole machine is less than 6W
Panel type IP65 protection,dustproof IP69K protection;explosion-proof type:gas explosion-proof and dust explosion-proof
Specifications
| Specifications | Technique |
| Display | 128X64 OLED dot matrix display, Chinese and English display menu |
| Display division | 150000 d |
| Output linear | <0.002% |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | ≤200times/second |
| Accept sensor | 0.1~+20 mV |
| Input load | 1~8 350Ω sensor cells |
| Communication | RS485--Modbus TCP |
| installation size | 63.5×59(59 is the U-shaped groove that can be adjusted left and right) |
| Upgrade Communication |
100Hz PROFIBUS-DP PLC data update speed 50Hz MODBUS-RTU, MODBUS-TCP communication data update speed |
| Temp.effect on output | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Excitation voltage | 5VDC |
| Power supply | 86~264VAC |
| Power waste | ≤6W |
| Operation temp range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Stainless Steel |
| IP Class | Panel type IP65 protection, dustproof type IP69K protection |

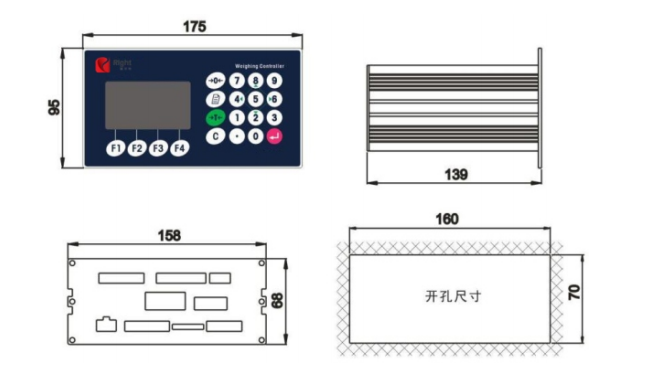

Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
