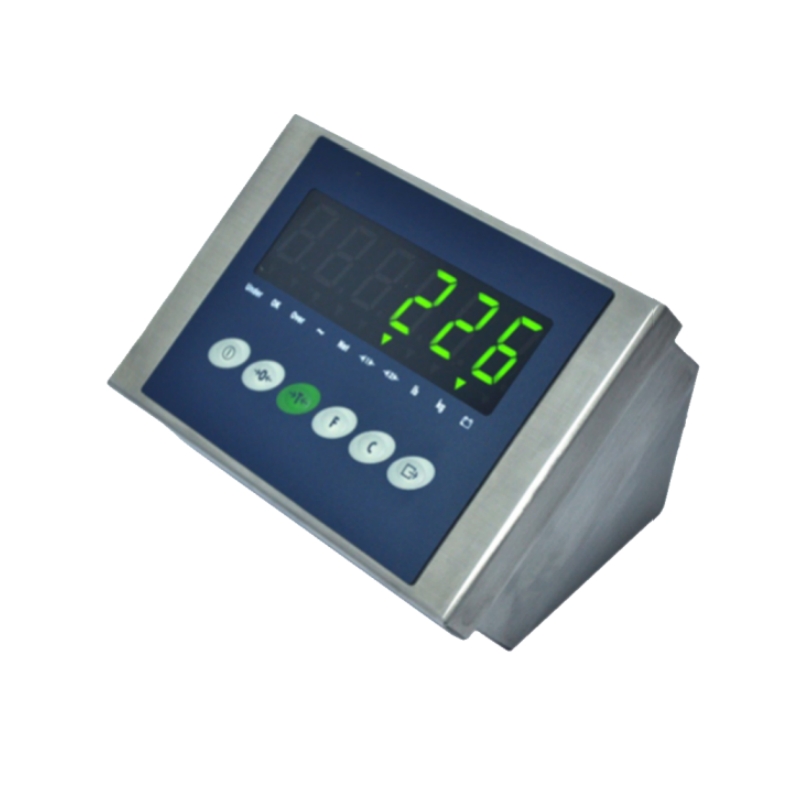

Digital indicator T063
Main applications:platform scale instruments,platform scale instruments,truck scale instruments,Over/Under/OK sorting scale instruments,counting scale instruments animal husbandry scale instruments
Product Description
Product characteristics
Main applications:platform scale instruments,platform scale instruments,truck scale instruments,Over/Under/OK sorting scale instruments,counting scale instruments animal husbandry scale instruments
The output supports RS232/485,WIFI,Ethernet TCP/IP,Bluetooth
6-digit 33.4mm word height,red or green LED display
Basic weighing functions:clearing,peeling,clearing and printing,automatic peeling, automatic peeling and automatic printing
The controller power supply adopts AC86~264VAC,current:0.1A.
Ni-MH rechargeable battery pack,GP7.2VDC3800mAh.(Optional)
Stainless steel waterproof shell,protection grade:IP66,and plastic shell is optional
Specifications
| Specifications | Technique |
| Display | 6digts red or green display |
| Display division | 200000 d |
| Output linear | <0.002% |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | ≤50times/second |
| Accept sensor | 0.1~+20 mV |
| Input load | 1X8 350Ω sensor cells |
| Communication | RS485/RS232--Modbus |
| Temp.effect on output | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Excitation voltage | 5VDC |
| Power supply | 86~264VAC |
| Power waste | ≤10W |
| Operation temp range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Stainless Steel |
| IP Class | IP66 |

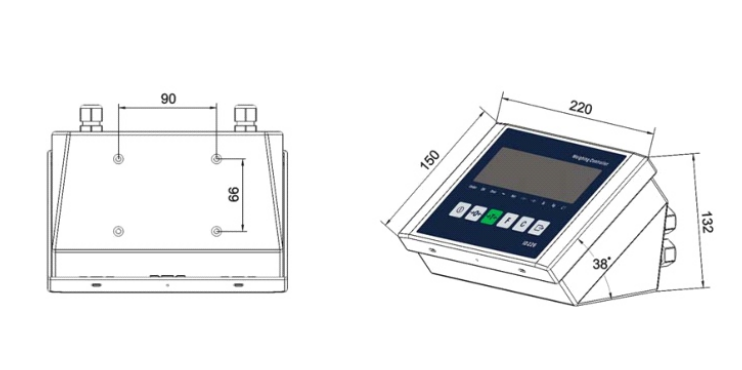

Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
