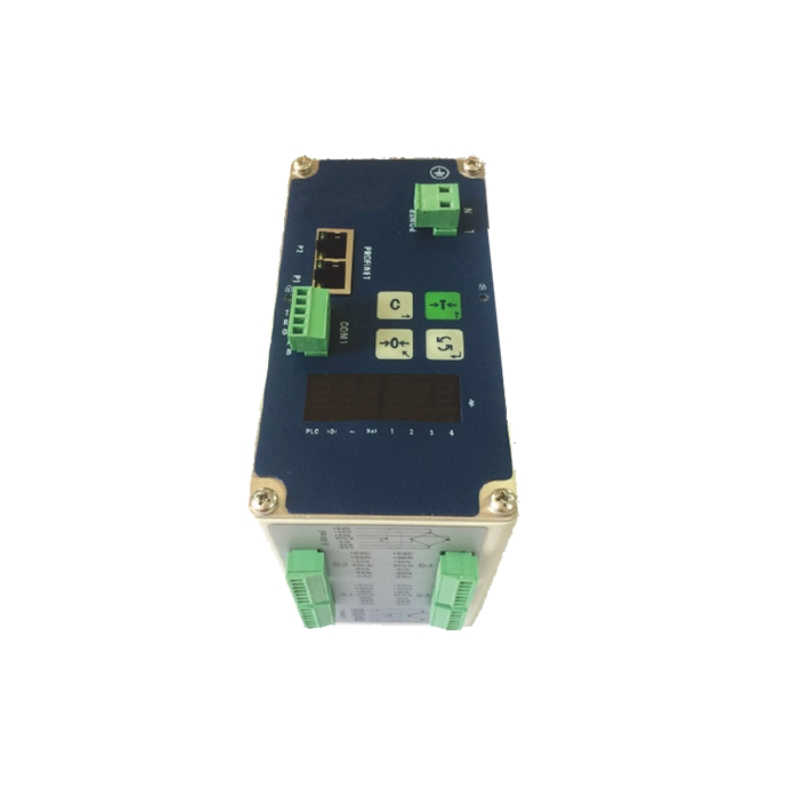

Digital indicator T088
This indicator is an industry weighing controller, high accuracy, support 1 to 4 scales input, and support PROFINET and MODBUS-TCP communication, typical for weighing, batching, filling system work together with PLC or DCS.
Product Description
Features & Applications
This indicator is an industry weighing controller, high accuracy, support 1 to 4 scales input, and support PROFINET and MODBUS-TCP communication, typical for weighing, batching, filling system work together with PLC or DCS.
1 to 4 scales input, 200HZ ADC speed
100000 display division, 6000e CMCapproval
One Serial port:RS232/485, 2LAN port
MODBUS-RTU & MODUBS-TCP
PROFINET for Siemens, TCP Report weight
Mobile APP Configure and Calibration
PC tool Configure and Calibration
Standard industrial railmounting(DIN)
Options
Blie Tooth with Mobile APP
Touch Screen Configure Tool
Applications
Weighing Batching System
Auto Control System
Weighing Transmiter
Specifications
| Specifications | Technique |
| Display | 6 digits, 7 segments, red LED display |
| Status of Display | Gross weight, net weight, dynamic, zero point, channel switching, communication status |
| Key | Function key, peel, clear, zero, switch |
| A/D Conversion speed | 200 times/second |
| Accept sensitivity | 0 to 19mV/V |
| Non-linearity &TC | ≤0.0015%FS;≤5ppm/℃ |
| Exciting Voltage | 5VDC provides up to 150mA |
| Input load | 4*350Ω sensor Load cells |
| Connect type | Four-wire or six-wire system |
| Calibration | Weight calibration, support remote calibration |
| Fiter | 5-level digital filter adjustable |
| Serial Port |
Standard COM1-RS232/485, support MODBUS-RTU |

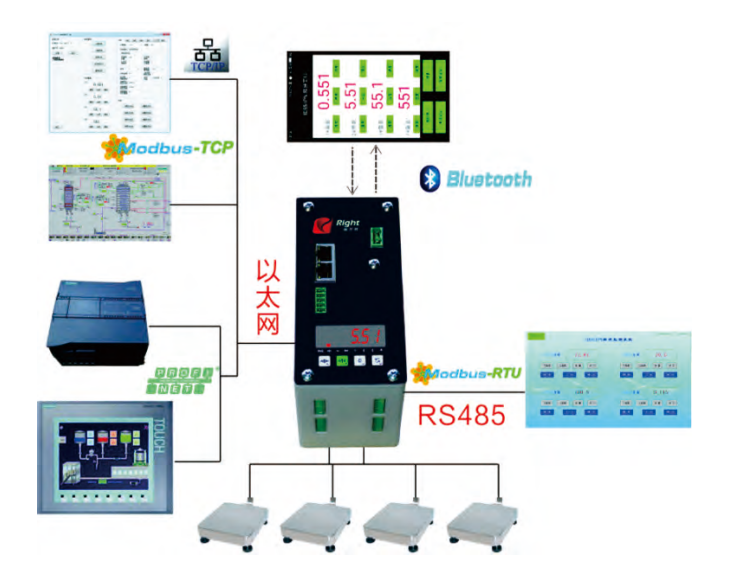

| LAN | 2 Ethernet ports, support TCP continuous output weight, MODBUS-TCP, PROFINET |
| Bluetooth | Connect to mobile phone APP configuration, calibration, maintenance |
| Operating temperature | range -10~40℃,95%RH |
| Power Supply | 220VAC or 24VDC |
| Installation | DIN standard industrial rail |
Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
