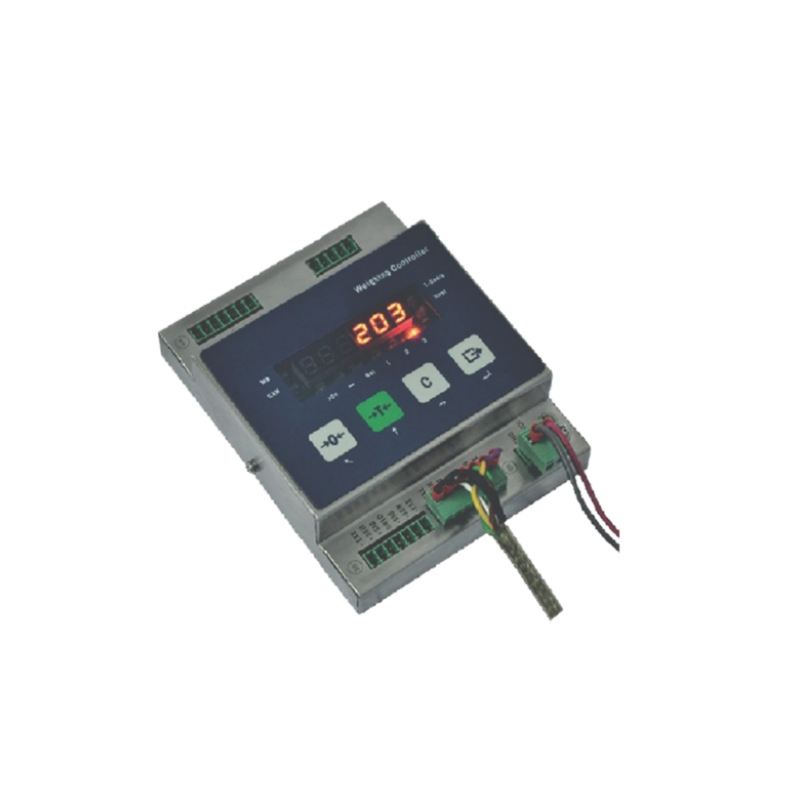

Digital indicator T089
Standard 1 serial port:RS485 or RS232,support MODBUS-RTU communication,read the value through the MODBUS-RTU and download the preset target force value
Product Description
Features&Applications
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
Standard 1 serial port:RS485 or RS232,support MODBUS-RTU communication,read the value through the MODBUS-RTU and download the preset target force value
6LED digital tube word high 7.1mm,4 status indicator
Controller with the upper,middle and lower limits judgment
Optional up to8 inputs,8 outputs
Can be driven by the host computer controller output,can replace part of the alternative PLC
5 dynamic digital filtering,200 times/second value comparison speed
Standard industrial rail mounting(DIN)
Applies to the value of the control system,check weigh scales, packaging scales,process force measurement and controlling
Specifications
| Specifications | Technique |
| Display | 6-digit 0.28-inch LED display |
| Readability | 1/100000 |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | 200 times/second |
| Accept sensitivity | -3.6~+3.6 mV/V |
| Filtering | 5 dynamic digital fitering |
| Calibration | Weight calibration,remote calibration |
| Input load | 3×4 350Ω sensor cells |
| Output specification | RS232/MODBUS/4~20mA |
| Temp.effect on sensitivity | ≤10ppm/℃ |
| Temp.effect on zero | ≤10ppm/℃ |
| Nominal range of excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤6W |
| Operating temperature range | -10~40℃ |
| Weight approx. | 0.5kg |
| Installation | DIN standard industrial rail |
| Material | Stainless Steel |
| IP Class | IP65 |

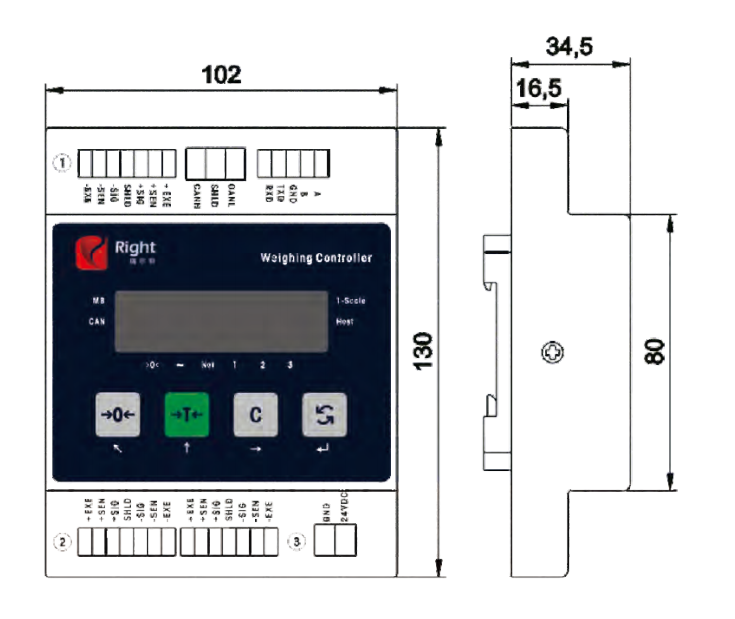

Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
