Digital indicator T092B
Show peak force,real-time value,TX diagram display test line,can monitor and trace the whole process of testing;
Product Description
Features&Applications
USB connect interface,support hot-swappable
Show peak force,real-time value,TX diagram display test line,can monitor and trace the whole process of testing;
Upper and lower limits can be set freely,alarm oflimits could be chosen
Upper and lower limit two-point output,buzzer,display also prompts the alarm
Irection buttons and display can be rotated 180°
Enable automatic unit conversion:N,kg,and Ib;pressure unit Mpa can be converted as well
Peaks can be held or cleared;clearing time can be set.

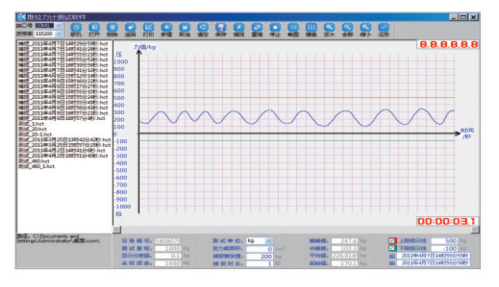

Through the PCsupporting the dedicated test software,can be unlimited storage,transmission, tracing test curve data
Print test results can be printed in the softwae interface;
Can configure a variety of test machines,to achieve a variety of tests applications
Specifications
| Specifications | Technique |
| Display | 2.8-inch TFT true color display |
| Readability | 1/90000 |
| Output linear | <0.002% |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | ≤1600 times/second |
| Accept sensor | -3.6~+3.6 mV/V |
| Input load | 1~4 350Ω sensor cells |
| Output specification | ±10V/0~10V/4~20mA |
| Temp.effect on sensitivity | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Nominal range of excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤6W |
| Operating temperature range | -20~70℃ |
| Weight approx. | 0.5kg |
| Material | Plastic Shell |

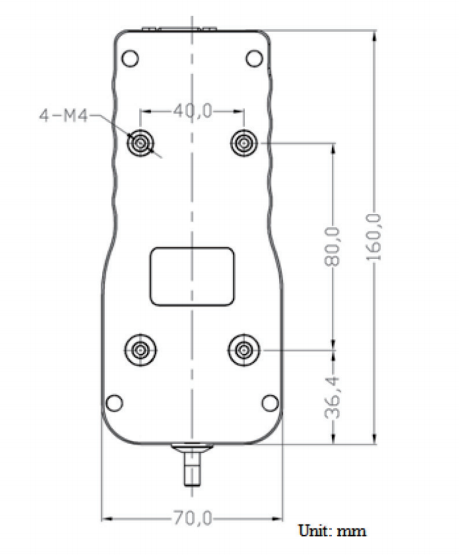

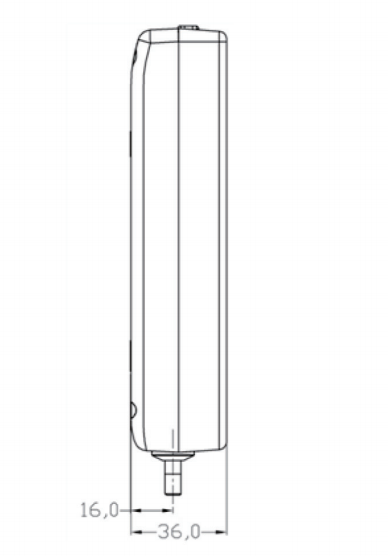

Mounting Dimension

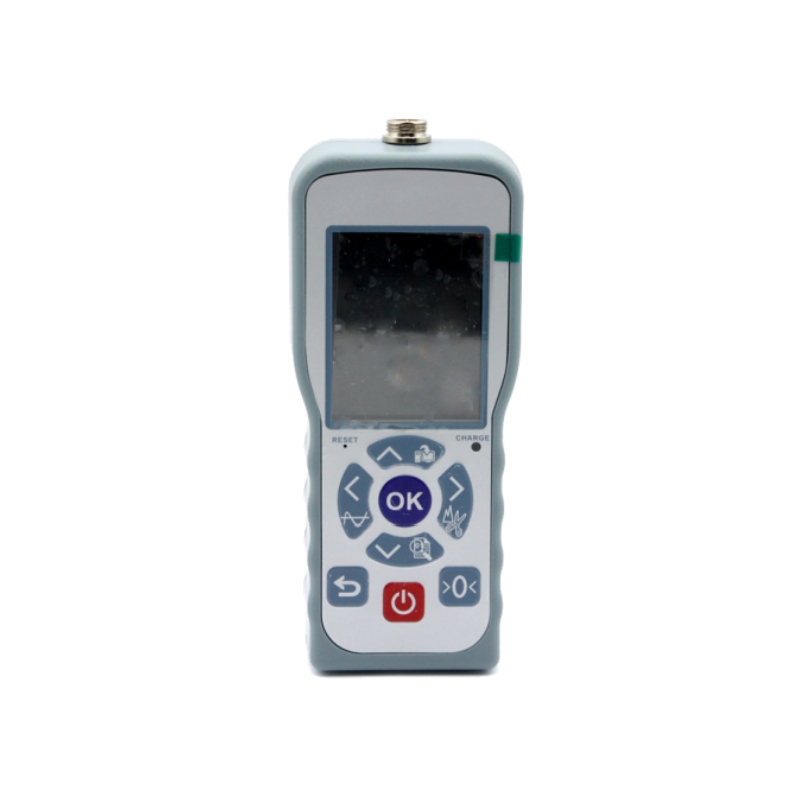

Panel buttons
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
