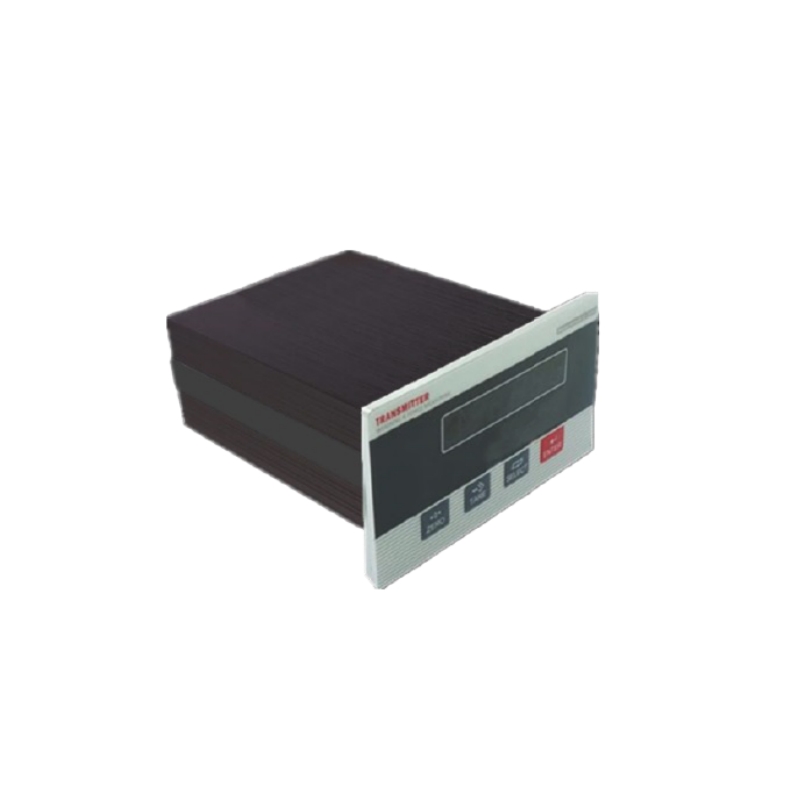

Digital indicator T093C
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
Product Description
Features&Applications
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
14bits Analog output signal could be4~20mA、0~±10V
Digital communication interface as RS485oRS232
Multiple fltering and debugging modes make it easier to obtain the target value
Power supply and signal are isolated,strong anti-interference,more stable data acquisition and output
LED display,showing real-time weight value,peak value,etc.
Comparable output,peak capture,peak comparison output
Non-weight calibration,TEDS automatic calibration
High-speed sampling(1600HZ)and fast display
DC24V power supply,voltage±10%,more secure and stable
Panel mounting for easy operation
Specifications
| Specifications | Technique |
| Display | Low power LED display |
| Output linear | <0.01% |
| Comprehensive accuracy | >0.01% |
| A/D Conversion speed | >100-400 times/second |
| Accept sensor | ±30mV |
| Input load | 1~4 350Ω sensor cells |
| Output specification | 4~20mA、0~±10V |
| Temp.effect on sensitivity | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Nominal range of excitation voltage | 5VDC |
| Power supply | 24±10%VDC(lsoLated) |
| Power waste | ≤8W |
| Communication interface | solated RS232&485 |
| Switchin | Switching:2 switching input, 3 switching output(OC) |
| Operating temperature range | -40~85℃ |
| Weight approx. | 0.5kg |
| Material | Plastic Shell |
| IP Class | IP64 |

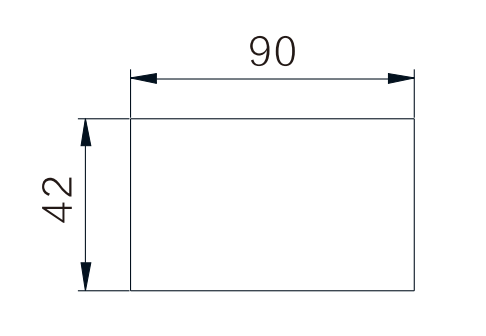

Mounting Dimension

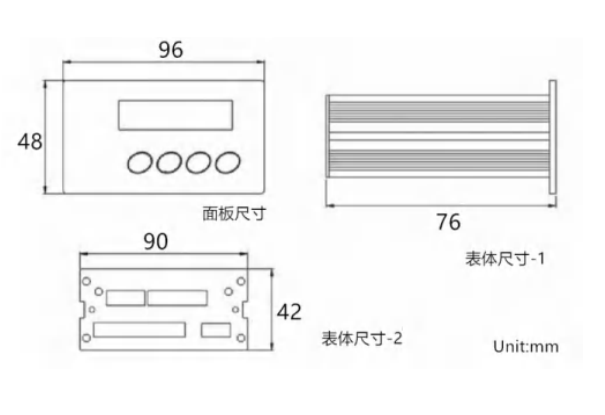

Installation Dimensions
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
