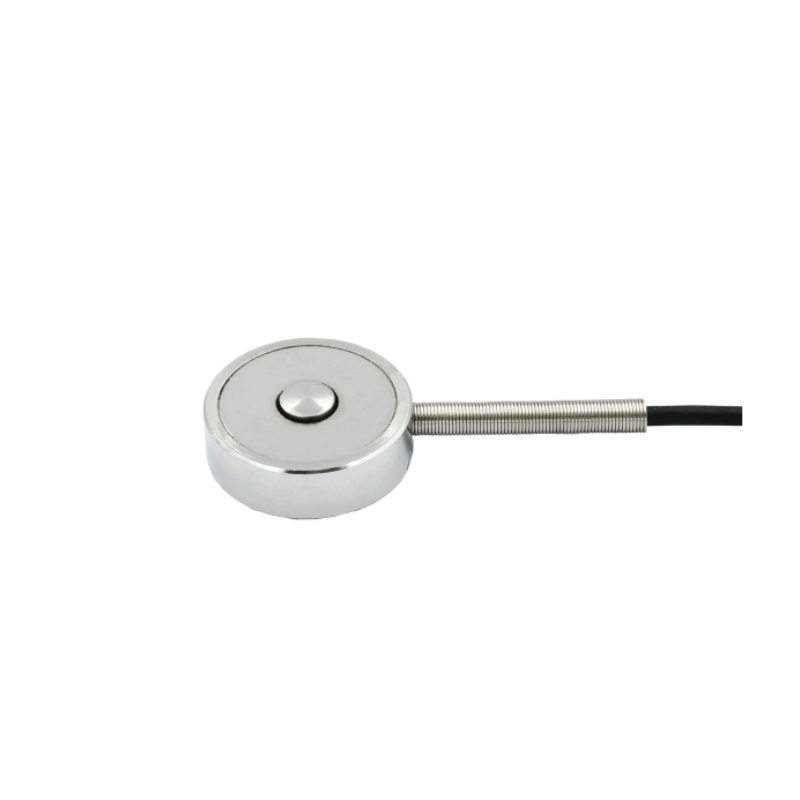

Miniature Compression Load Cell R214
Ultra-thin construction with smalldeflection and mini dimension with high accuracy
Product Description
Miniature Compression Load Cell
Features & Applications
Ultra-thin construction with smalldeflection and mini dimension with high accuracy
Made of stainless steel
IP67 protection,customizable
Suitable for Automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500,1000N |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ3×4000mm |
| Material | Stainless Steel |
| lP class | IP67 |

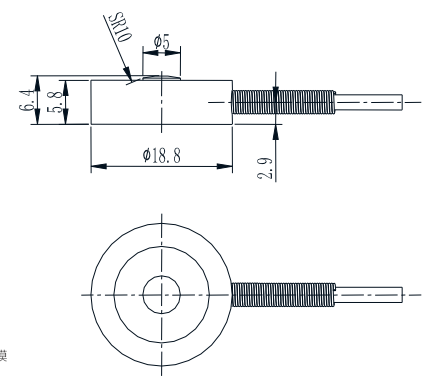

Mounting Dimension

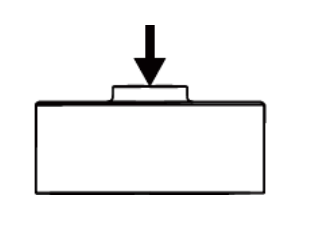

Load Direction

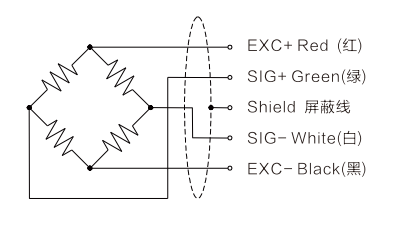

Wiring Code
