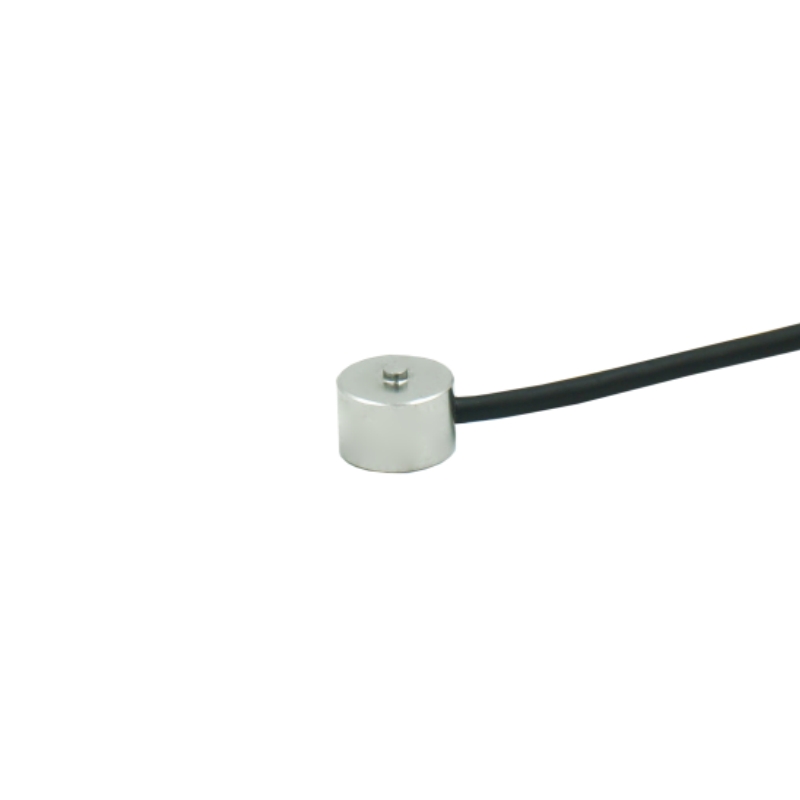

Miniature Compression Load Cell
Features & Applications
Low profilesmall,deflection and mini dimension
Made of stainless steel
IP66 protection,customizable
High temperature could be customized for injection molding,extrusion and other manufacturing processes
Suitable for Automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 20,50,100,200,500,1000N |
| Sensitivity | 1.0±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.50%F.S. |
| Creep(300min) | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 600-800Ω |
| Output impedance | 600-800Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | φ2×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| lP class | IP66 |
| Model | Load Deflection | Natural Frequency | Weight |
| T105-20N | 0.015mm | 73kHZ | 23g |
| T105-50N | 0.015mm | 86kHZ | 23g |
| T105-100N | 0.015mm | 83kHZ | 23g |
| T105-200N | 0.015mm | 98kHZ | 23g |
| T105-500N | 0.015mm | 107kHZ | 23g |
| T105-1000N | 0.015mm | 122kHZ | 23g |

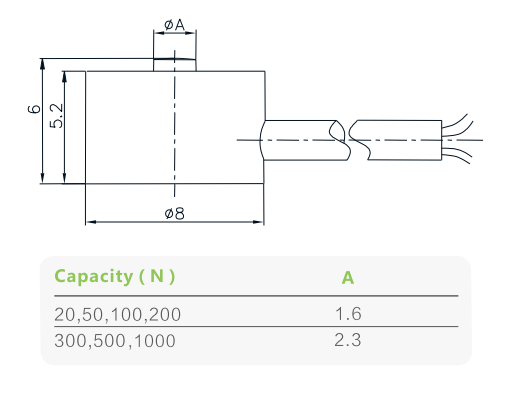

Mounting Dimension
Load Direction
Wiring Code
