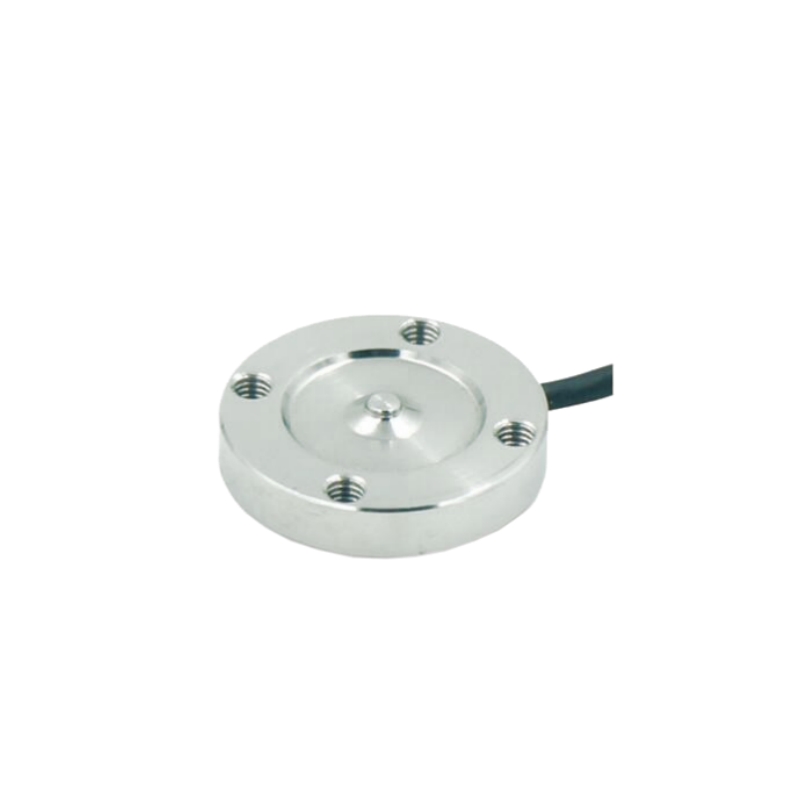

Miniature Compression Load Cell T117
Made of stainless steel,High temperature could be customized
Product Description
Miniature Compression Load Cell
Features & Applications
Ultra-thin construction with small deflection and mini dimension and big capacity
Made of stainless steel,High temperature could be customized
IP65 protection,customizable
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and contro system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500,1000N |
| Sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(300min) | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ2×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| lP class | IP65 |

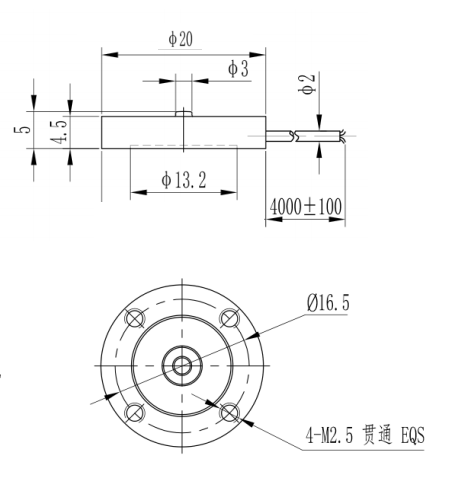

Mounting Dimension
Load Direction
Wiring Code
