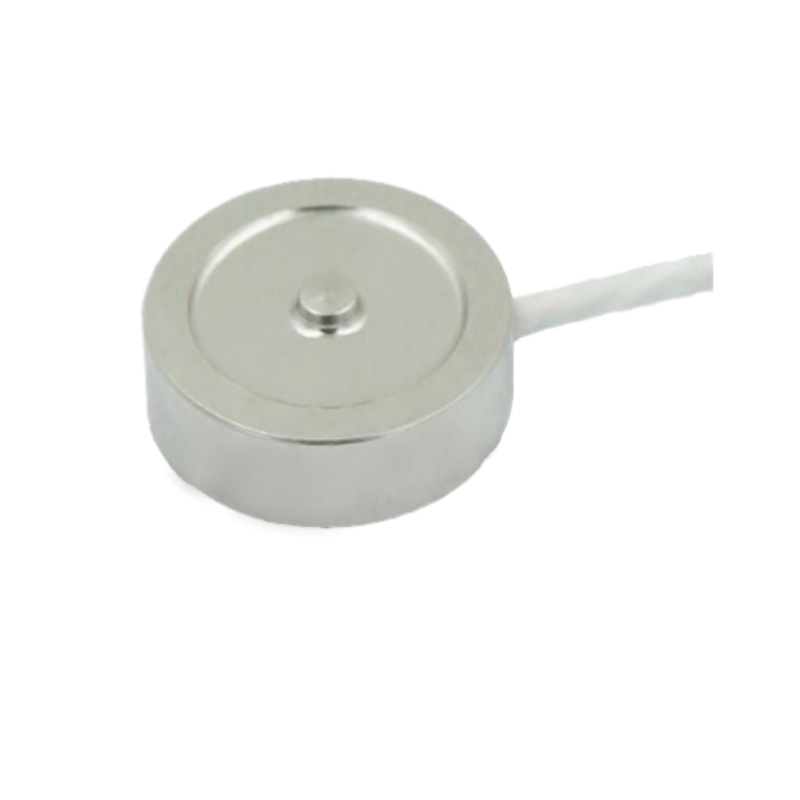

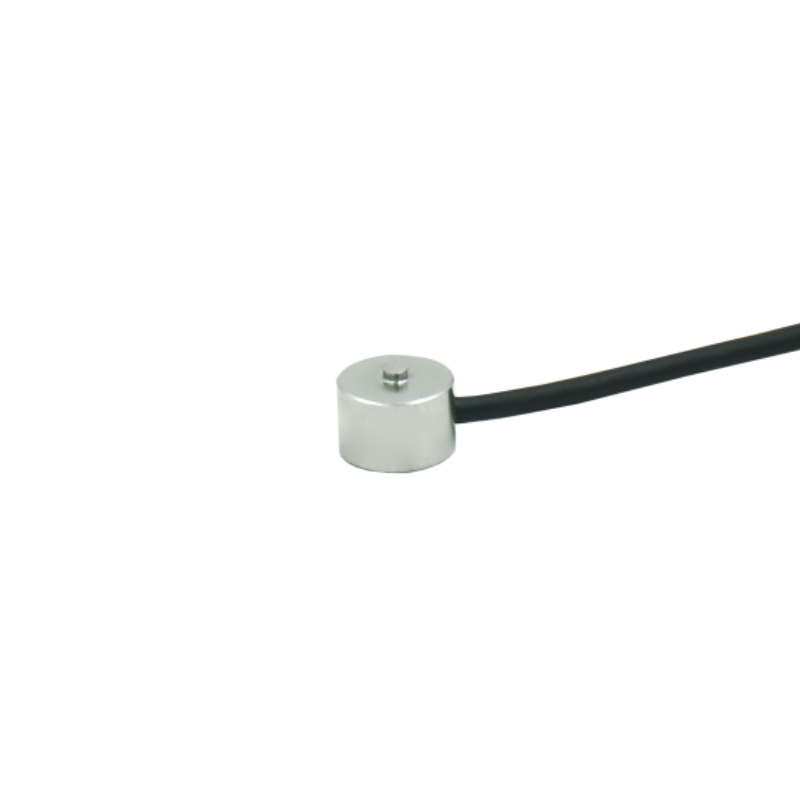

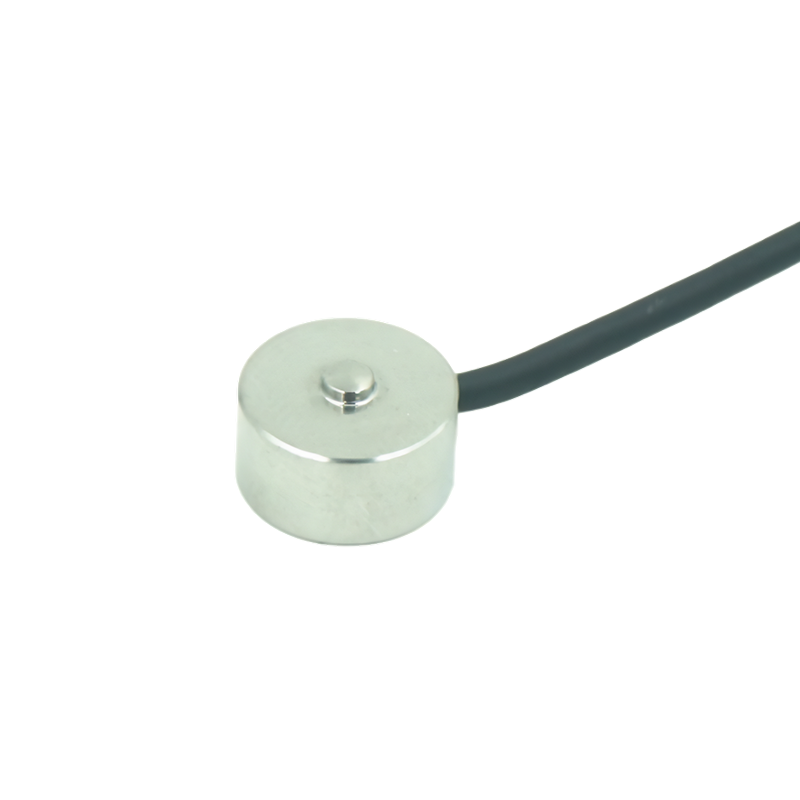

Miniature Compression Load Cell T103
Made of stainless steel IP67 protection,Customizable
Product Description
Miniature Compression Load Cell
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel IP67 protection,Customizable
High temperature is customizable for injection molding,extrusion and other manufacturing process Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,300,500,1000N |
| Sensitivity | 1.0±20%mV/V |
| Zero balance | ±2mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(300min) | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | φ2×4000mm |
| Weight approx. | 0.1kg |
| lP class | IP66 |
| Model | Load Deflection | Natural Frequency | Weight |
| T103-50N | 0.014mm | 88kHZ | 28g |
| T103-100N | 0.014mm | 81kHZ | 28g |
| T103-200N | 0.014mm | 80kHZ | 28g |
| T103-500N | 0.014mm | 84kHZ | 28g |
| T103-1000N | 0.014mm | 95kHZ | 28g |

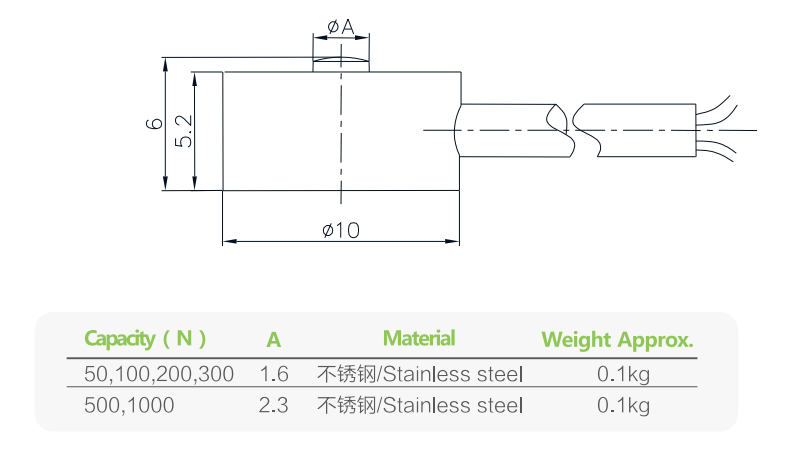

Mounting Dimension
