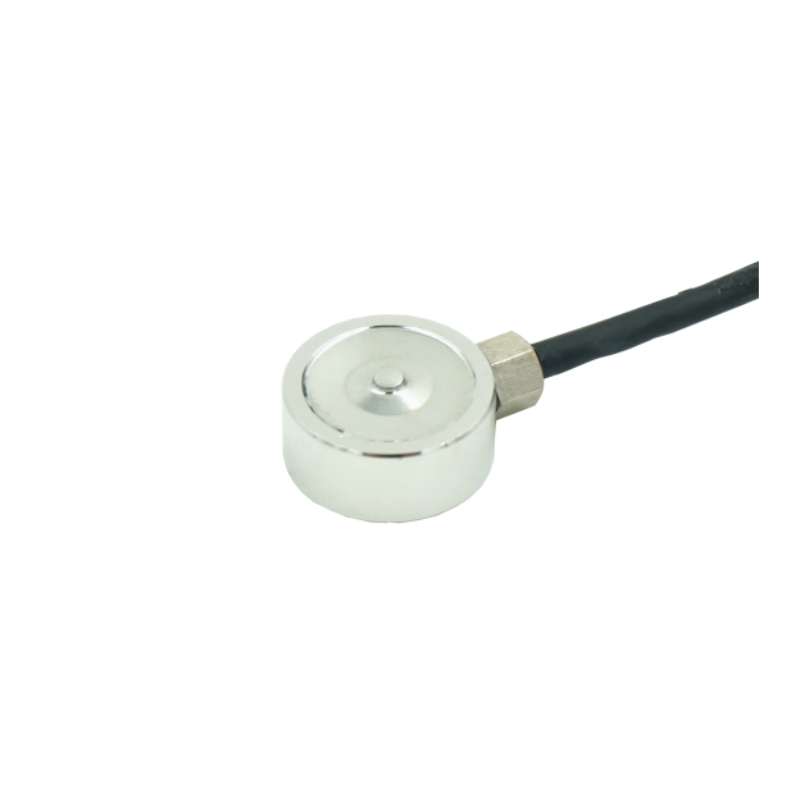

Miniature Compression Load Cell T109
High temperature could be customized for injection molding,extrusion and other manufacturing processes
Product Description
Miniature Compression Load Cell
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel
IP67 protection,customizable
High temperature could be customized for injection molding,extrusion and other manufacturing processes
Suitable for Automotive press fit,automated assembly,3Cproducts testing,new energy product assembly,medicaltesting,robotics,mold assembly and other industrial esting and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,300,500,1000N |
| Sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.03mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(300min) | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ2×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| lP class | IP67 |

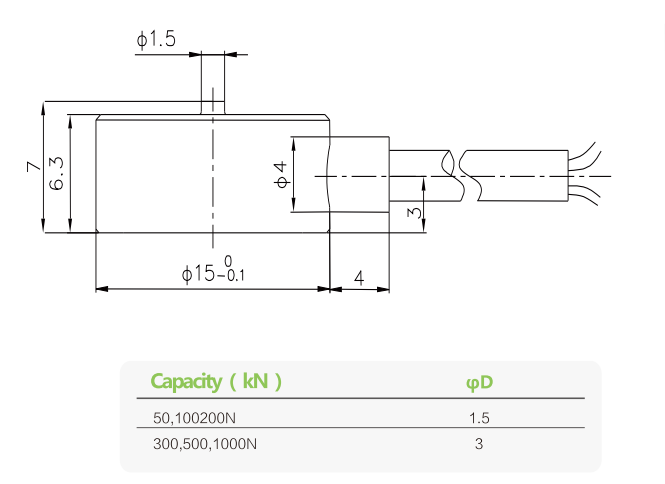

Mounting Dimension

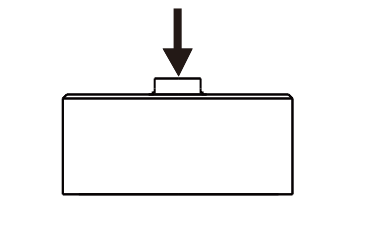

Load Direction
Wiring Code
FAQ
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
