Miniature Compression Load Cell T101
Suitable for Automotive press fit,automated assembly, 3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description

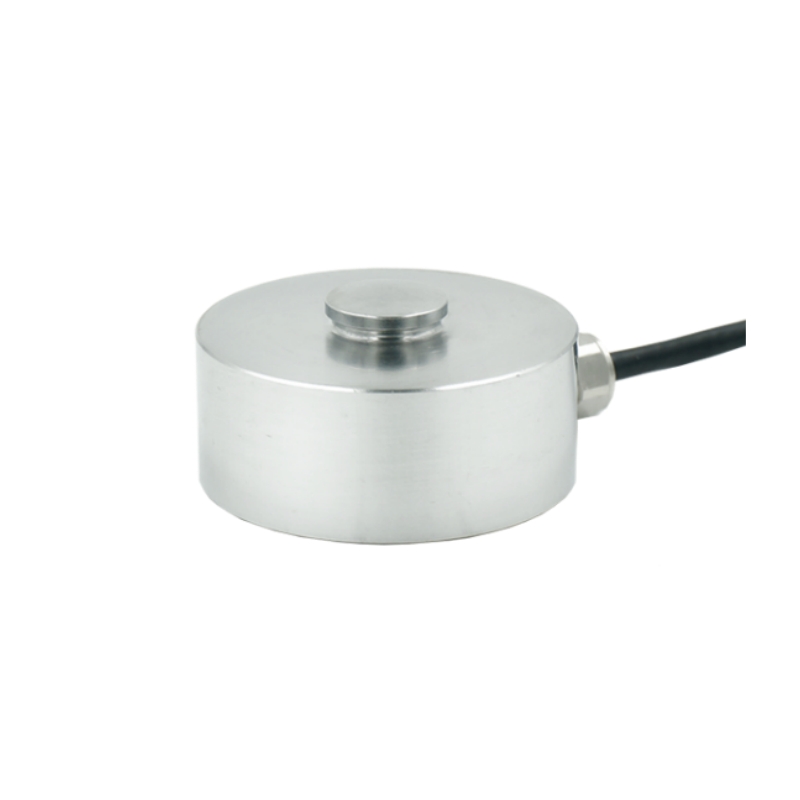

Miniature Compression Load Cell
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel,High temperature could be customized
IP67 protection,customizable
Suitable for Automotive press fit,automated assembly, 3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamicresponse frequency
Specifications
| Specifications | Technique |
| Capacity | 1,2,5,10,20,30,50,100kN |
| Sensitivity | 1.5±20%mV/V |
| Zero balance | ±0.2mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 780±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | φ4×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| lP class | IP67(IP68 can be customized) |
| Model | Load Deflection | Natural Frequency | Weight |
| T101-1kN | 0.11mm | 6kHZ | 250g |
| T101-2kN | 0.11mm | 8kHZ | 250g |
| T101-5kN | 0.11mm | 13kHZ | 250g |
| T101-10kN | 0.11mm | 16kHZ | 255g |
| T101-20kN | 0.11mm | 23kHZ | 260g |
| T101-50kN | 0.11mm | 35kHZ | 280g |
| T101-100kN | 0.11mm | 60kHZ | 290g |
Mounting Dimension
Load Direction
Wiring Code
