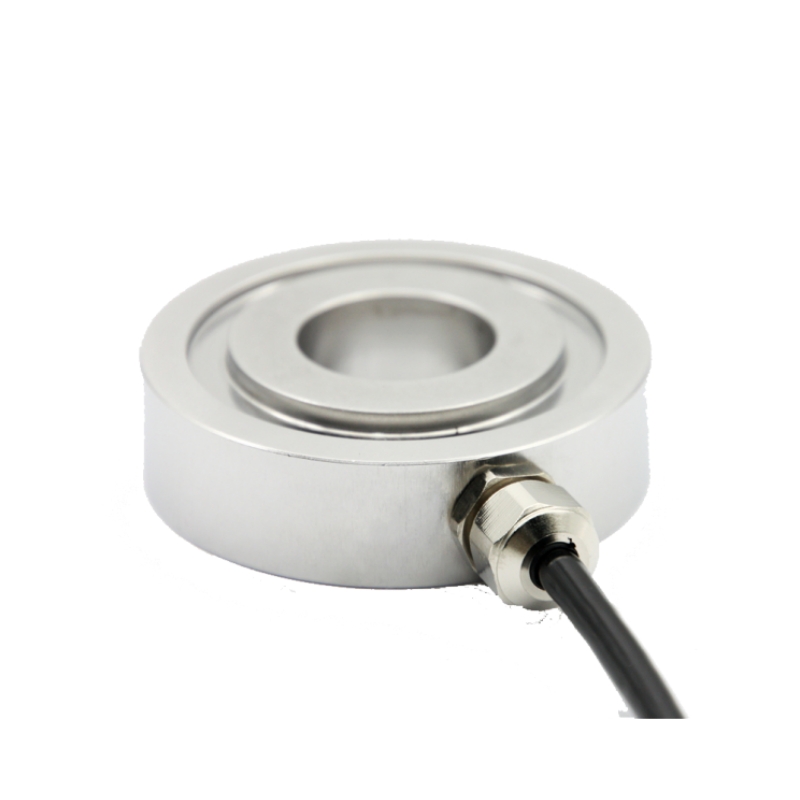

Ring Type Force Fensor R029
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description
Ring Type Force Fensor
Features & Applications
Low profile,smalldeflection and mini dimension
Made of stainless steel
IP66 protection,customizable
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 0.1,0.2,0.5,1,2,3,5,10,20kN |
| Rated output | 1.5±20%mmV/V |
| Zero balance | ±3%V/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 120%F.S. |
| Breaking load | 150%F.S. |
| Cable size | Φ4-4000mm |
| Material | Stainless Steel |
| lP class | IP66 |

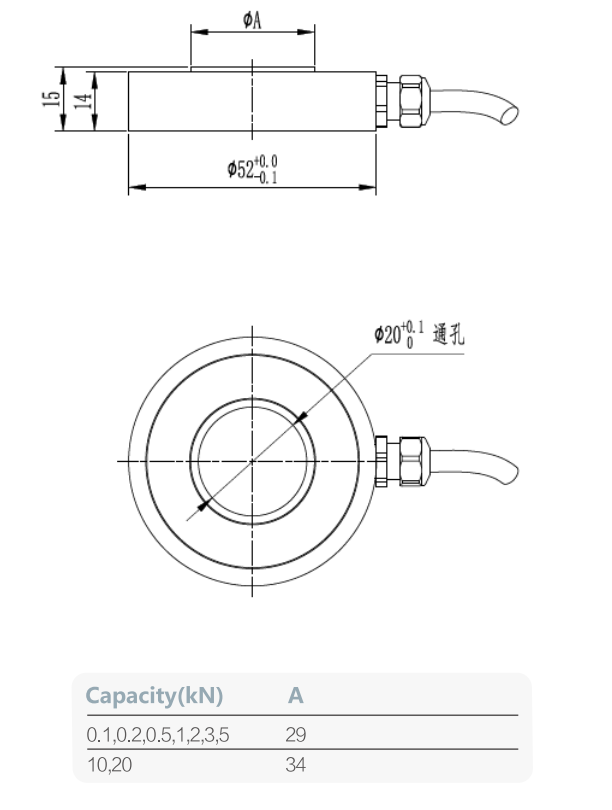

Mounting Dimension

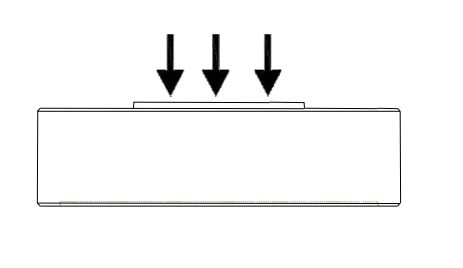

Load Direction
Wiring Code
