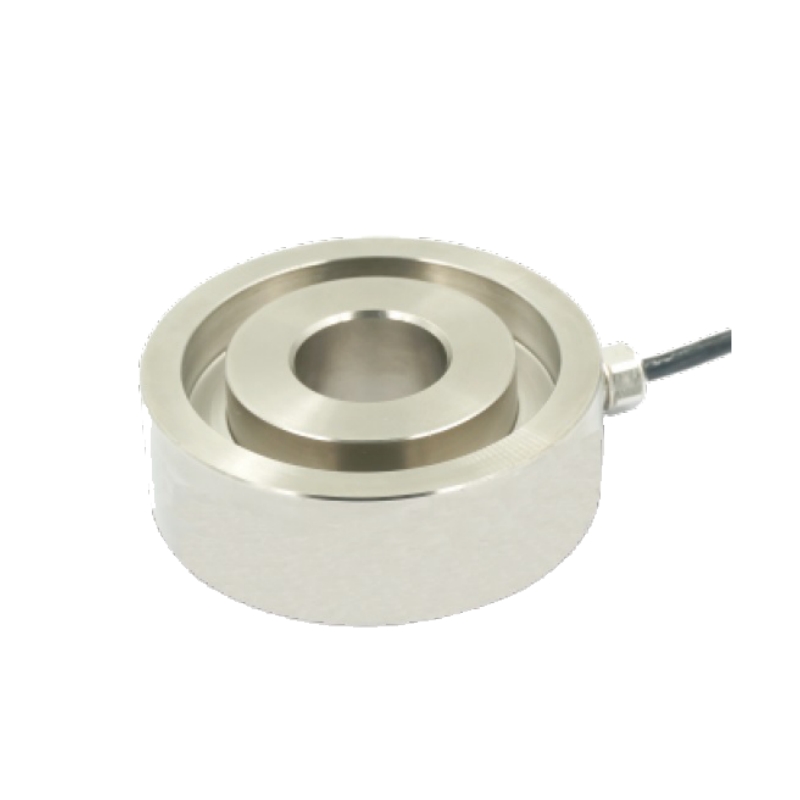

Ring Type Force Sensor T119B
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system
Product Description
Ring Type Force Sensor
Features & Applications
Low profile,small deflection
Made of stainless steelor Alloy steel
Mainly used for monitoring of thread force
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,30,50kN |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±2%F.S |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.2%F.S. |
| Temp.effect on output | 0.1%F.S/10℃ |
| Temp.effect on zero | 0.1%F.S/10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ4x4000mm |
| lP class | IP67 |

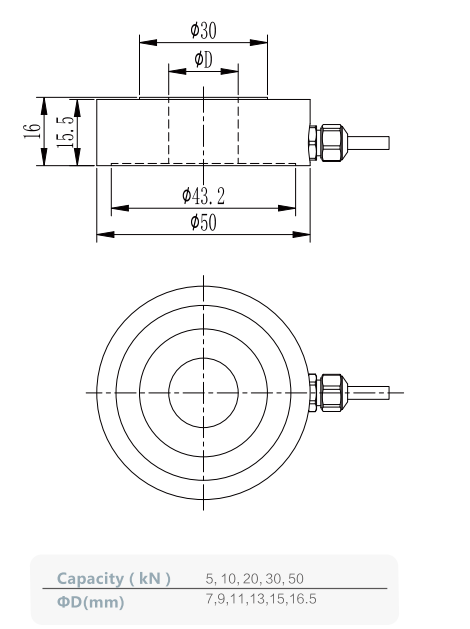

Mounting Dimension
Load Direction
Wiring Code
