Ring Type Force Sensor T112
Mainly used for automotive pressfit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Product Description

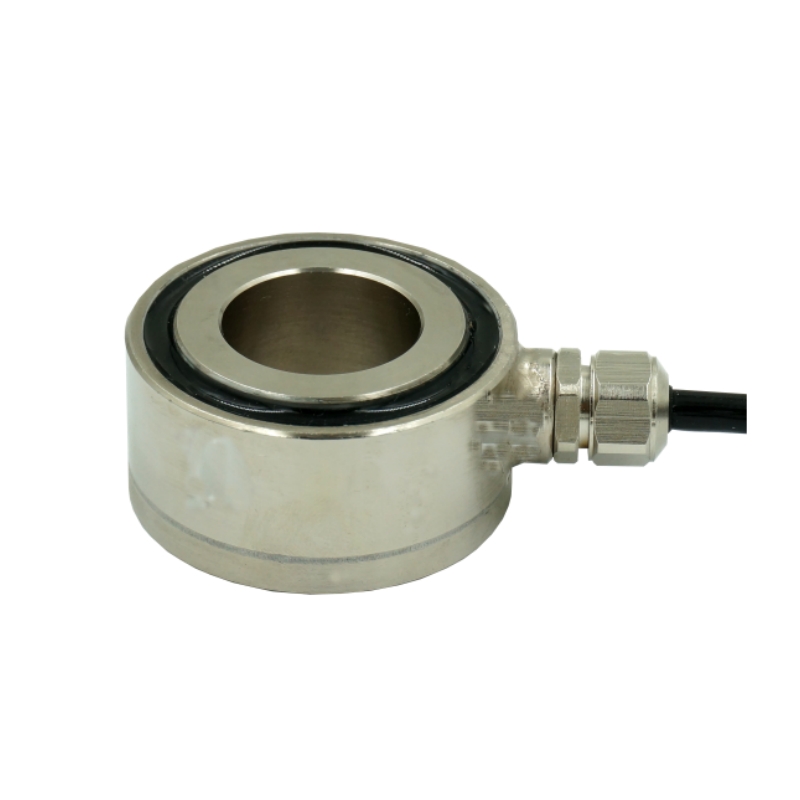

Ring Type Force Sensor
Features & Applications
Low profile with small deflection
Made of stainless steel
Tension and compression application
Mainly used for automotive pressfit,automated assembly,3C products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and control system
Specifications
| Specifications | Technique |
| Capacity | 20,50,80,120,150,200,300, 500,700,800,1000kN |
| Rated output | 2.0±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 1%F.S. |
| Hysteresis | 1%F.S. |
| Repeatability | 1%F.S. |
| Creep(300min) | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -40~80℃ |
| Safe load limit | 120%F.S. |
| Breaking load | 150%F.S. |
| Cable size | Φ3×4000mm |
| Weight approx. | 0.3kg |
| Material | Stainless Steel |
| lP class | IP66 |

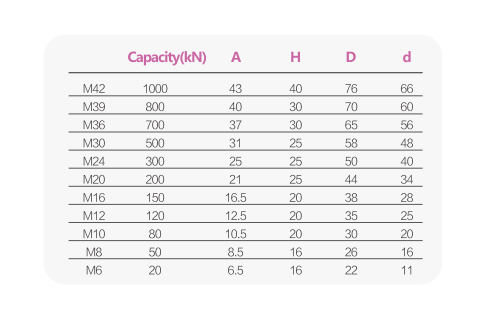

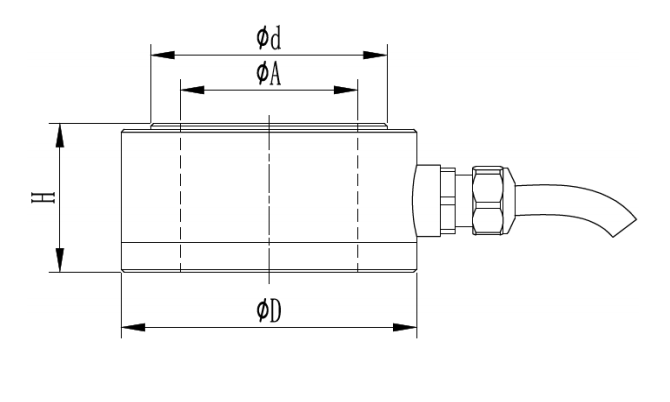

Mounting Dimension

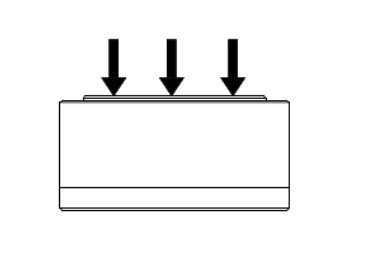

Load Direction
Wiring Code
