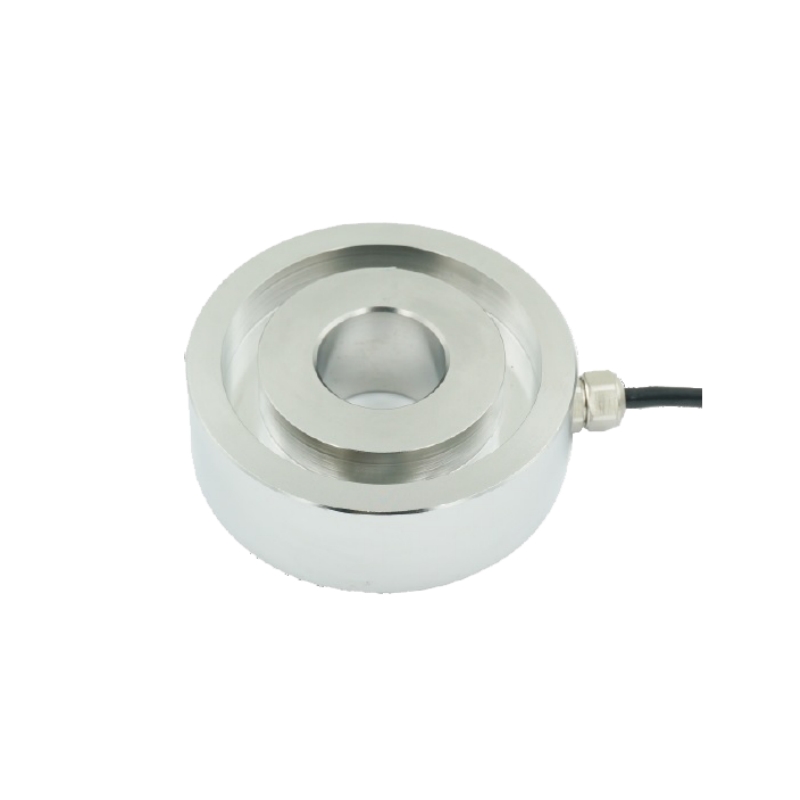

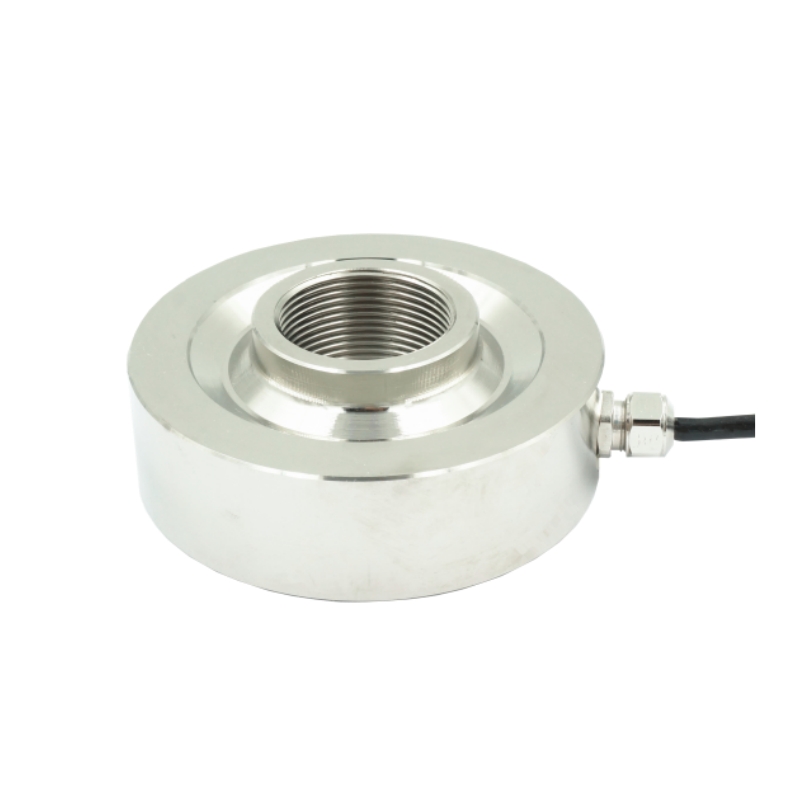

Ring Type Force Sensor R097
Low profile,small deflection and mini dimension
Made of stainless steel
IP67 protection,customizable
Product Description
Features & Applications
Low profile,small deflection and mini dimension
Made of stainless steel
IP67 protection,customizable
Suitable for Automotive press fit,automated assembly,3C products testing,new energy product assembly,medicaltesting,robotics,mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,30,50kN |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 120%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Φ5×4000mm |
| Material | Stainless Steel |
| lP class | IP66(IP68 can be customized) |

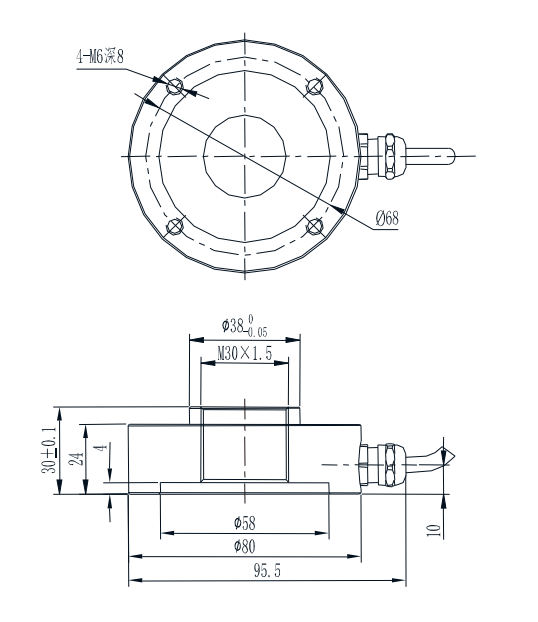

Mounting Dimension

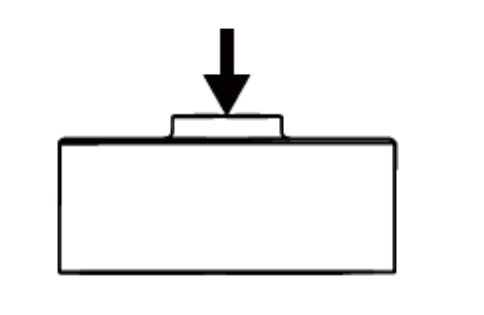

Load Direction

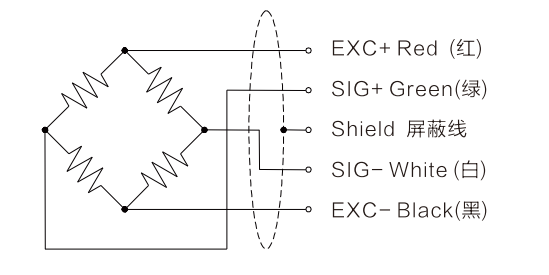

Wiring Code
