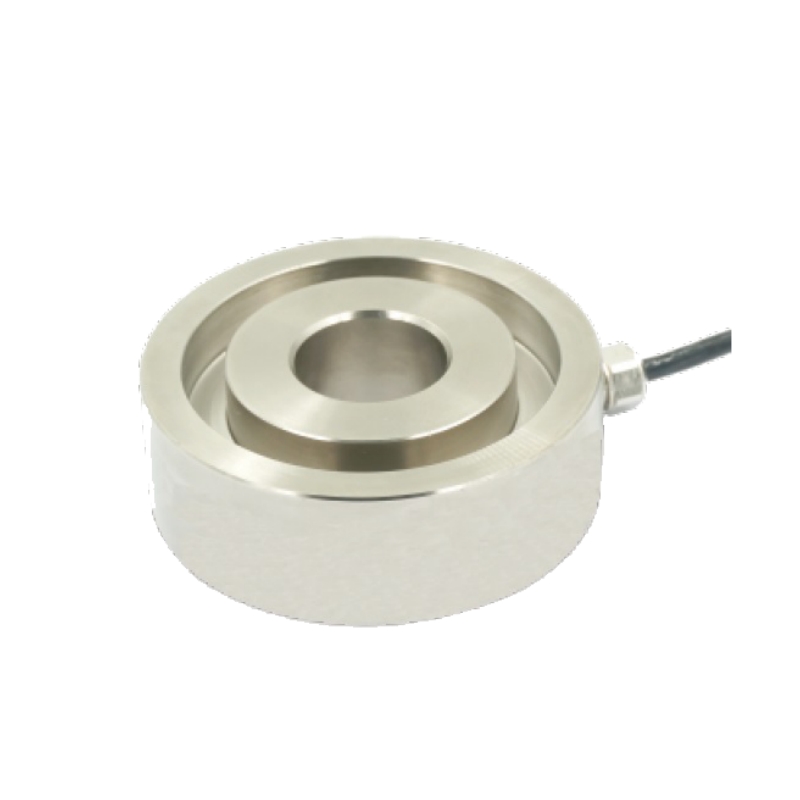

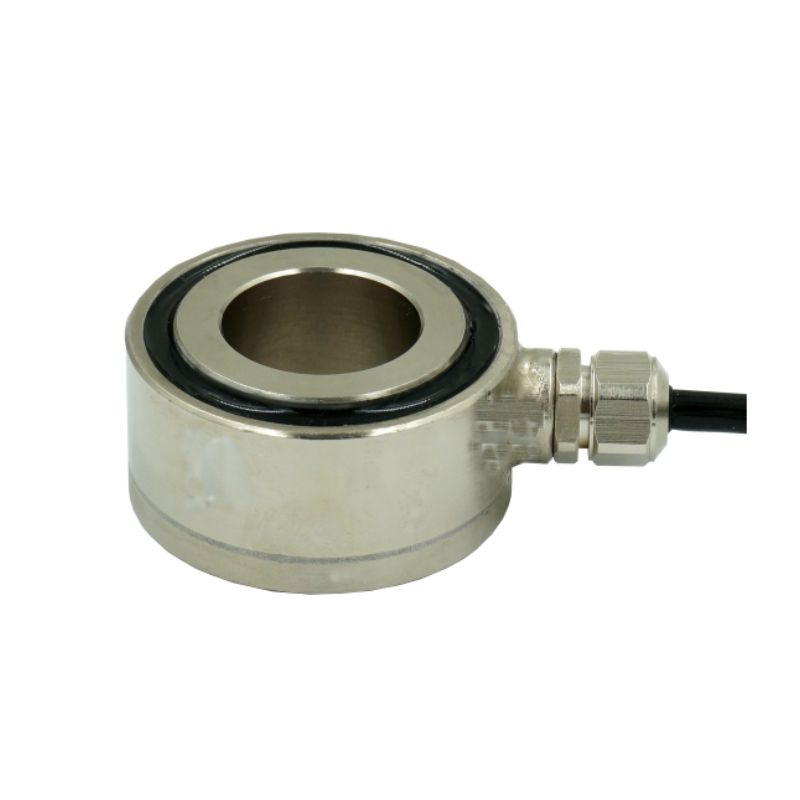

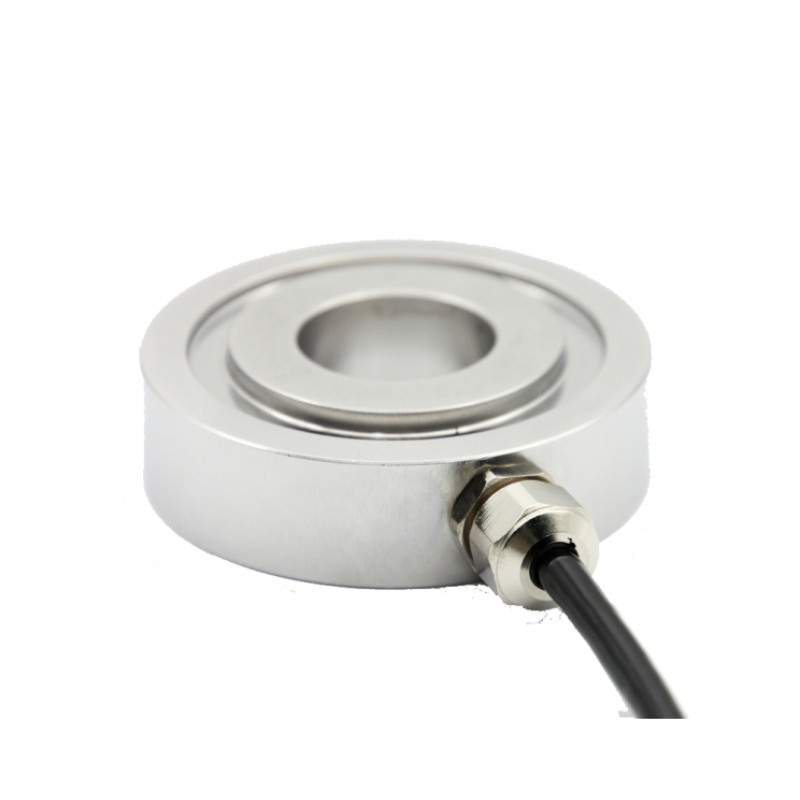

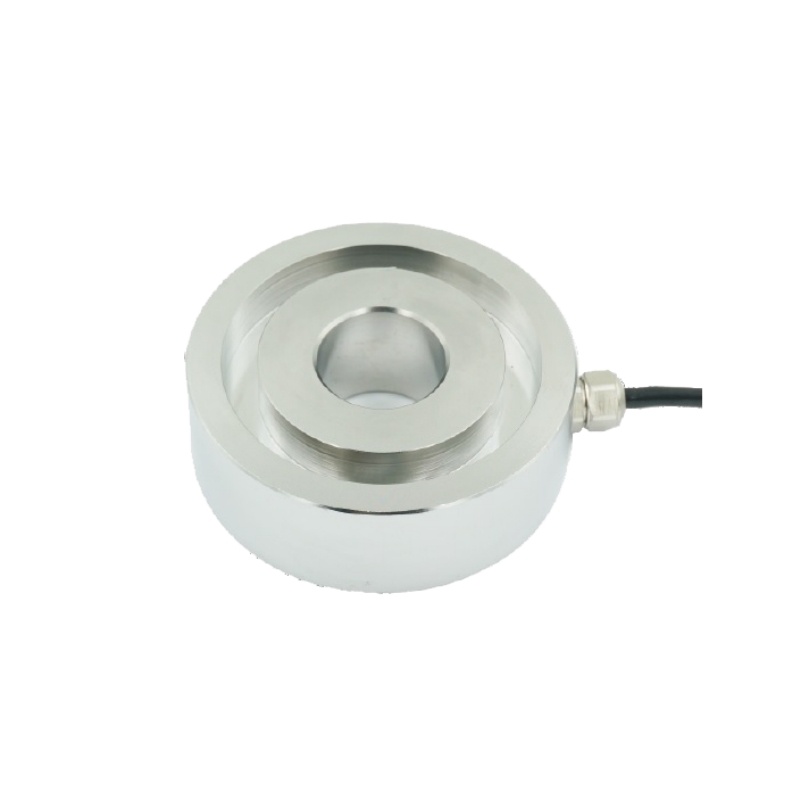

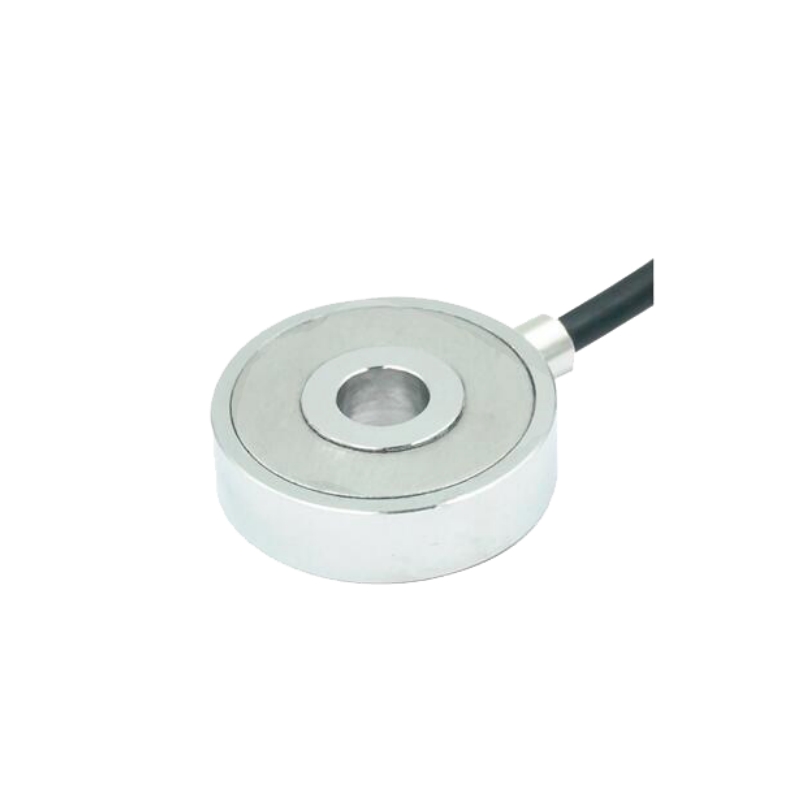

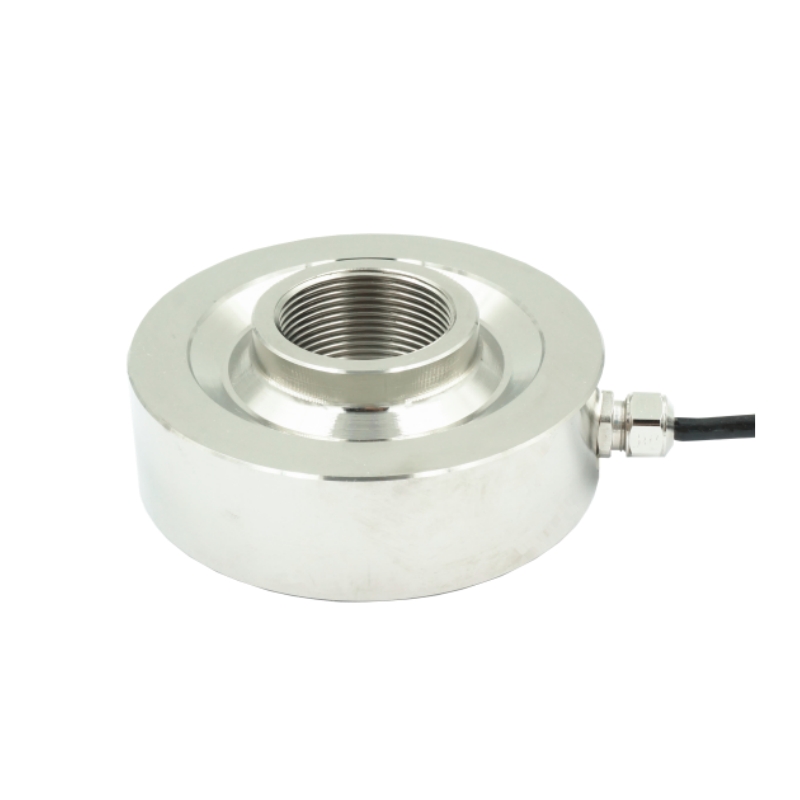

Ring Type Force Sensor
Features & Applications
Low profile,smalldeflection.
Made of stainless steel or Alloy steel.
Mainly used for monitoring of thread force.
Suitablefor Automotive press fit,automated assembly,3CS products testing,new energy product assembly,medical testing,robotics,mold assembly and other industrial testing and controlling system.
Specifications
| Specifications | Technique |
| Capacity | 0.5,1,2,5,10,20kN |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(300min) | 0.2%F.S. |
| Temp.effect on output | 0.1%F.S/10℃ |
| Temp.effect on zero | 0.1%F.S/10℃ |
| Input impedance | 780±±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20-80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ4x4000mm Black cable |
| lP class | IP67 |

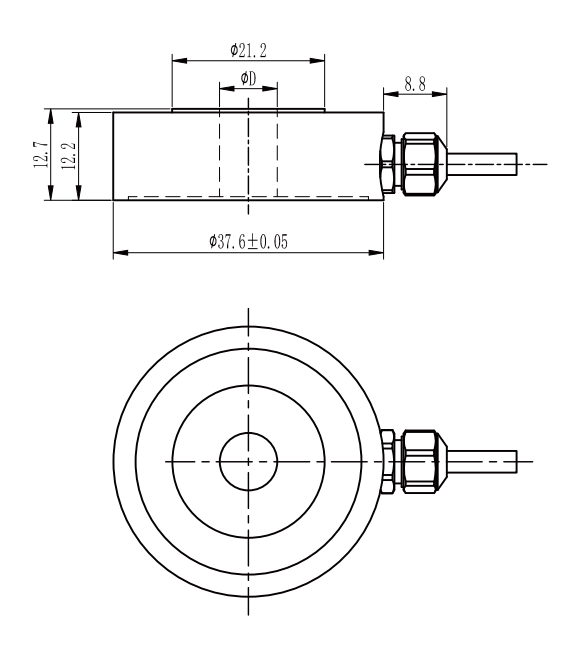

Mounting Dimension

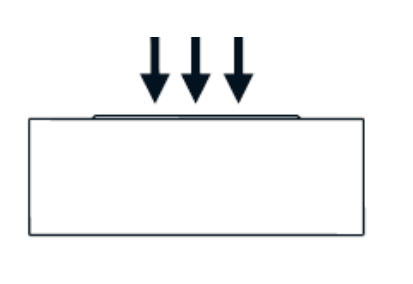

Load Direction

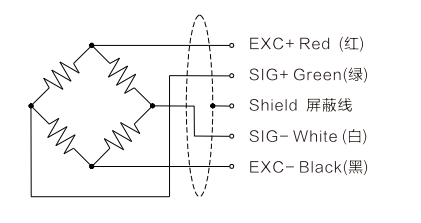

Wiring Code
