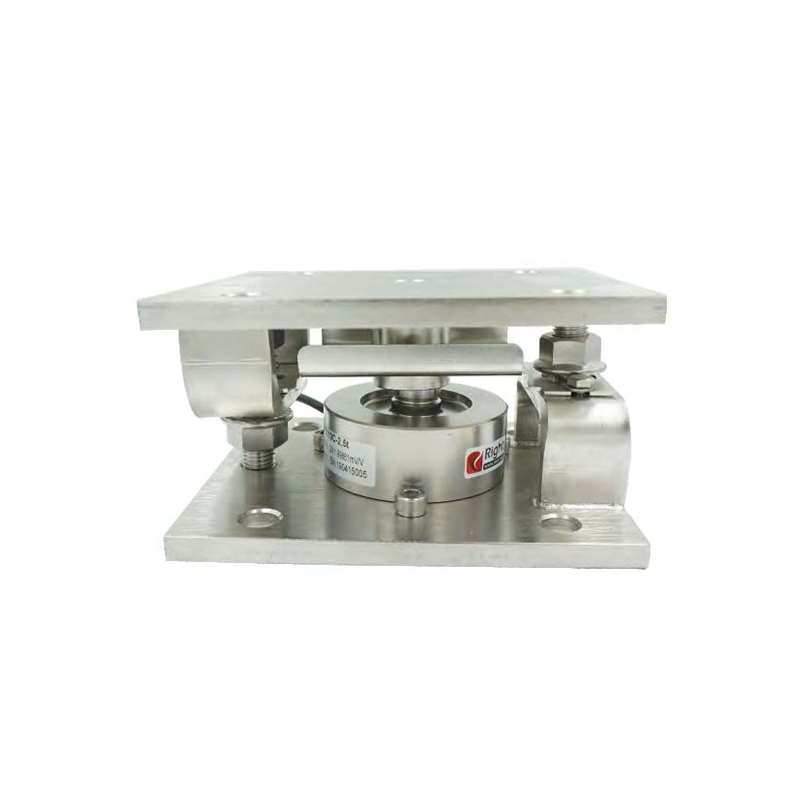

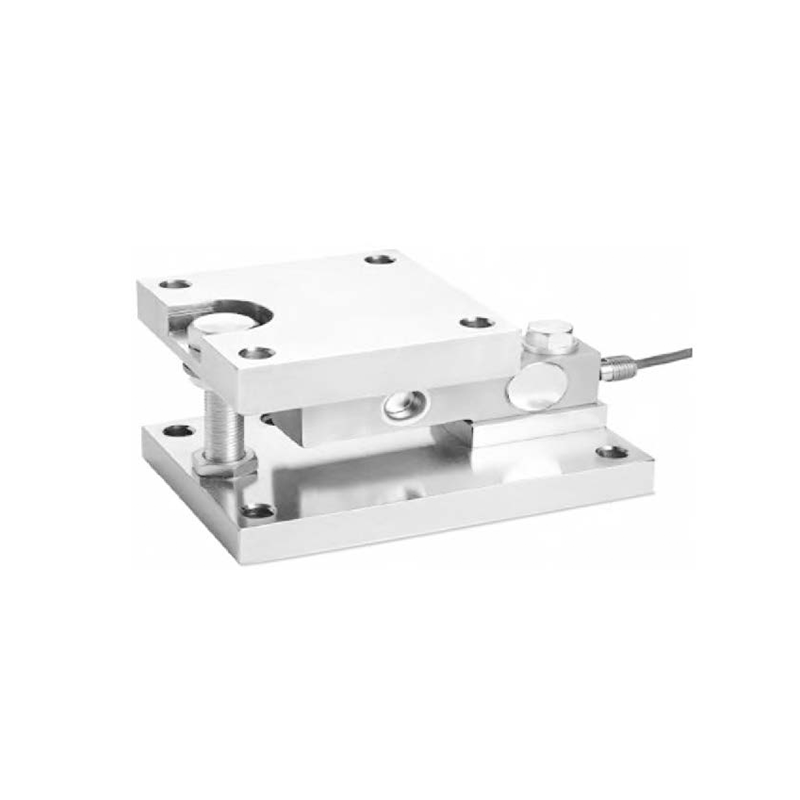

Weighing Module T002
Imported stainless steel welded sealed sensors are adopted, with a protection level of IP68. A sensor can be used in various harsh environments to meet the requirements of OIMLR60C3 and NTEP10000 Sichuan L.
Product Description
Weighing Module
Features & Applications
Imported stainless steel welded sealed sensors are adopted, with a protection level of IP68. A sensor can be used in various harsh environments to meet the requirements of OIMLR60C3 and NTEP10000 Sichuan L.

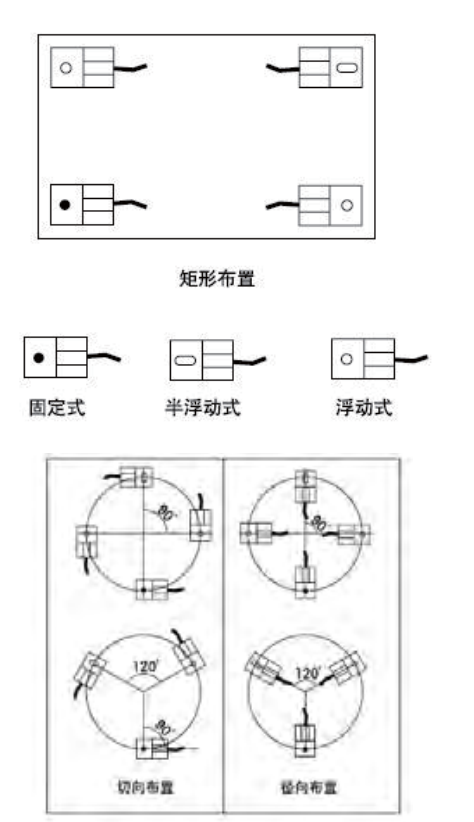

Unique structure and can be easily installed on various tanks. Three roof structures (fixed, semi-floating, floating) can eliminate weighing errors caused by thermal expansion and contraction of tanks.
Support bolts to prevent equipment from overturning.
Easy and fast installation.
Easy maintenance, saving downtime and maintenance time.
Suitable for batch and weighing control of tanks in harsh environments.
Alloy steel/stainless steel materials have strong partial loading and overloading capabilities and good long-term stability.
Maximum range:220kg-4.4t.
Used for various above-ground scales, ground scales, batching scales and industrial weighing systems.
Specifications
| Specifications | Technique |
| Sensitivity |
2.0±10%mV/V 3.0±10%mV/V(Option) |
| Zero balance | ±2%mV/V |
| Non-linearity | 0.03%F.S |
| Hysteresis | 0.03%F.S |
| Repeatability | 0.03%F.S |
| Creep(300min) | 0.03%F.S |
| Temp.effect on Sensitivity | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Input impedance | 385±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temp range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Ø5x6000m |
| Material | Alloy steel/stainless steel |
| IP class |
IP65(<500kg) IP68(≥500kg) |

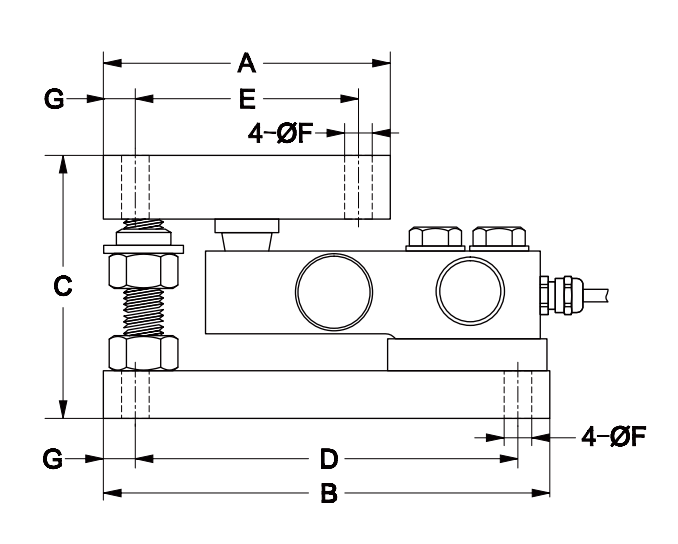

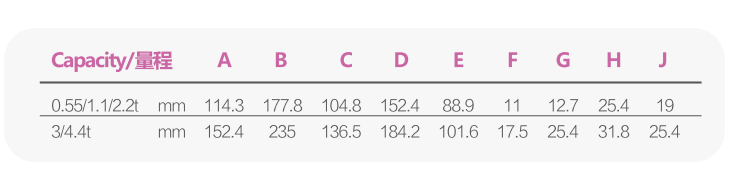

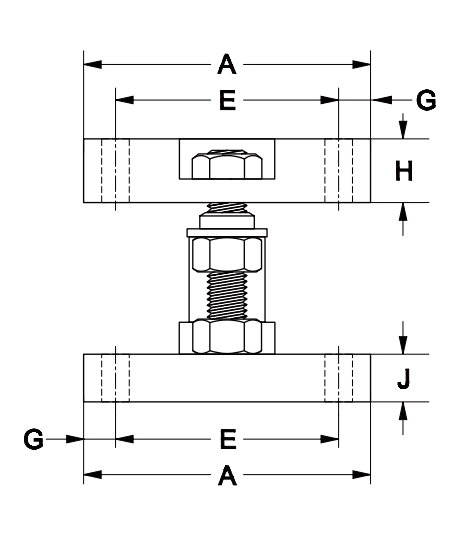

Mounting Dimension
