Weighing Module T011
Choose high-precision stainless steel laser welding seal sensor
Height adjustable
Comprehensive accuracy: 0.05%F.S
Anti-capsulse protection, anti-overload protection
Cable length: 6m (customized)
Suitable for high-precision ingredients, reactors, force measurement platforms, etc.
Special high temperature model (up to 200℃)
Two structural parts: stainless steel and carbon steel are available
Patented products, counterfeiting will be investigated
Product Description
Weighing Module
Features & Applications
Choose high-precision stainless steel laser welding seal sensor
Height adjustable
Comprehensive accuracy: 0.05%F.S
Anti-capsulse protection, anti-overload protection
Cable length: 6m (customized)
Suitable for high-precision ingredients, reactors, force measurement platforms, etc.
Special high temperature model (up to 200℃)
Two structural parts: stainless steel and carbon steel are available
Patented products, counterfeiting will be investigated
Specifications
| Specifications | Technique |
| Rated output |
2.0±0.1%mV/V |
| Zero balance | ±3%mV/V |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Creep(300min) | 0.05%F.S |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operating temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | IP6 |
| Weight approx. |
Ø6-6m |

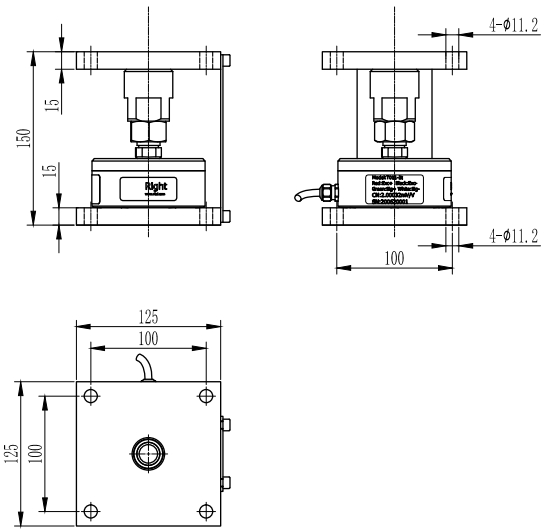

Mounting Dimension

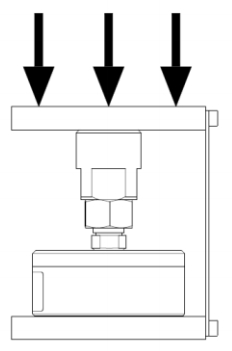

Load Direction

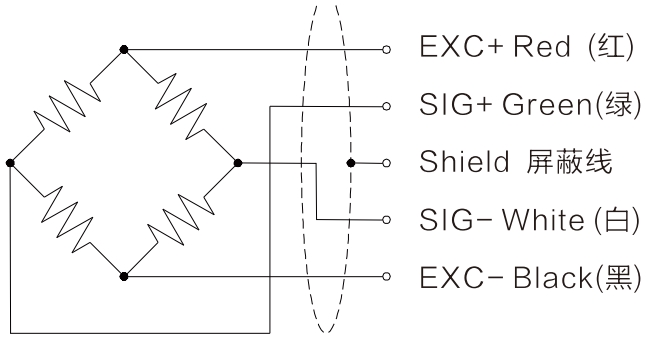

Wiring Code
FAQ
Can you send your sensor to my warehouse in guangzhou?
of course，We have good transportation here
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
