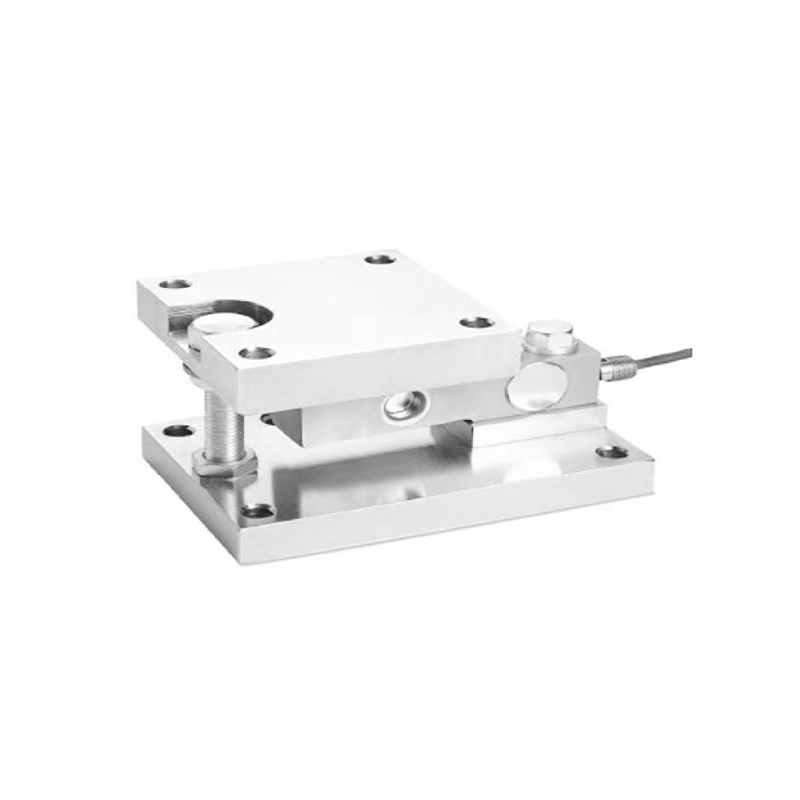

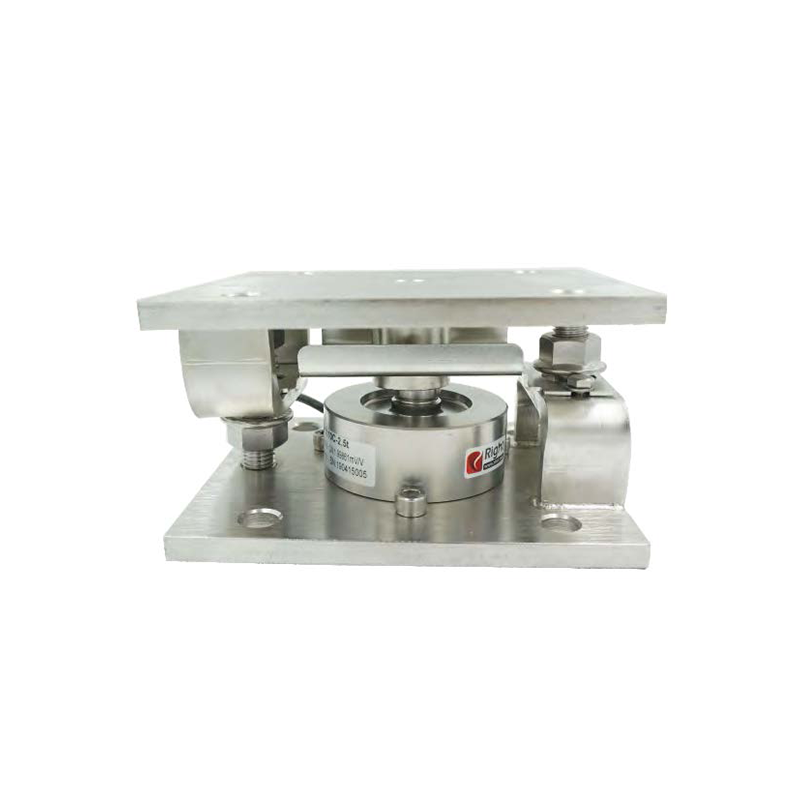

Weighing Module T008
Suitable for force measurement in limited spaces. Widely used for industrial measurement andcontrol, R&D and other applications.
Product Description
Features & Applications
Low profle small deflection.
Made of stainless steel.
IP68 protection.
Suitable for force measurement in limited spaces. Widely used for industrial measurement andcontrol, R&D and other applications.
Specifications
| Specifications | Technique |
| Sensitivity | 1,2.5 3,4. 5,7.5,10, 15t |
| Rated output | 2.0±0.1%mV/V |
| Zero balance | ±0.03%mV/V |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Creep(300min) | 0.05%F.S |
| Temp.effect on Sensitivity | 0.003%F.S./10℃ |
| Temp.effect on zero | 0.003%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temp range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Ø5x4000m |
| Material | Stainless steel |
| IP class | IP68 |

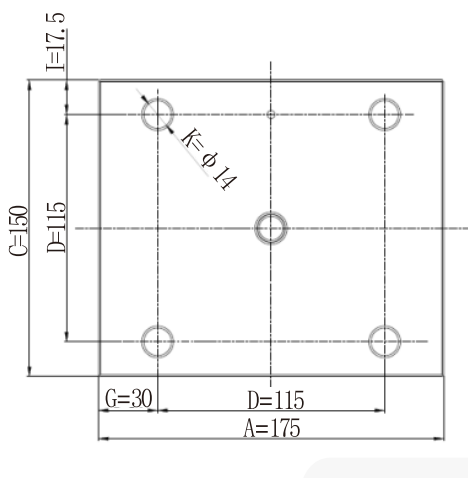

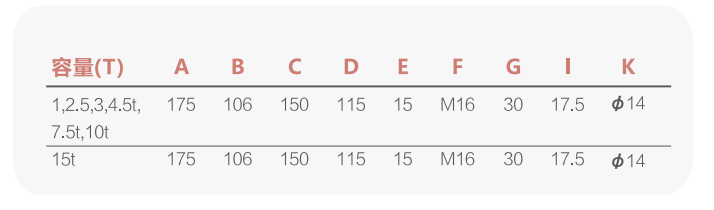

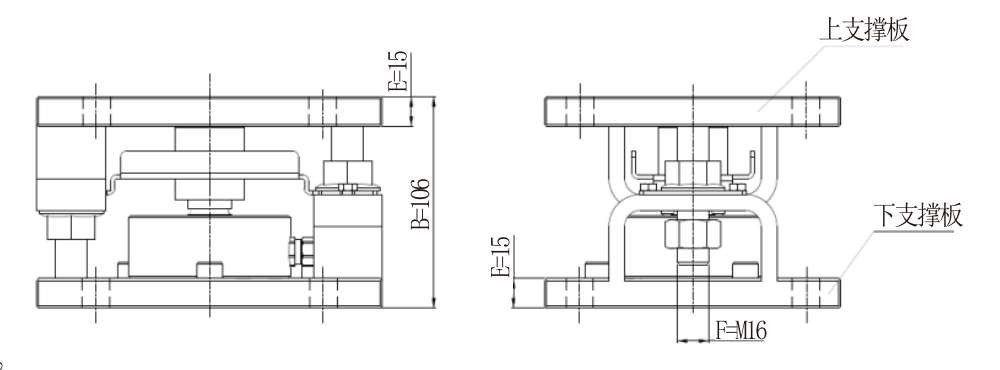

Mounting Dimension

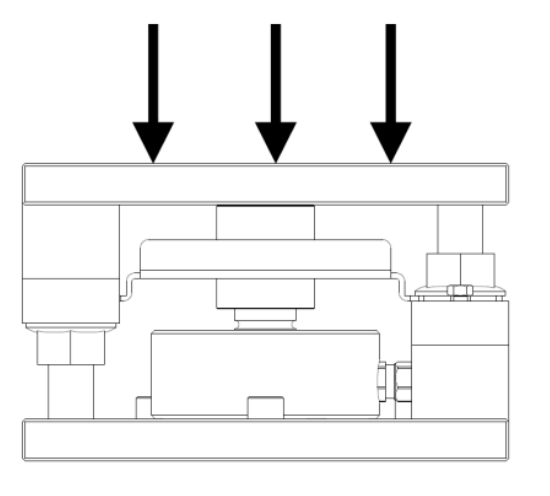

Load Direction

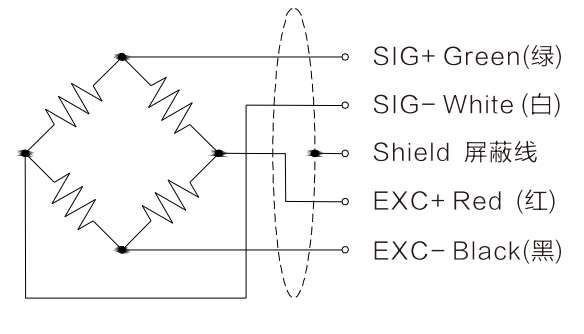

Wiring Code
