Weighing Module T003
Use imported stainless steel welding seal sensor, protection level IP68, can be used in various harsh environments
Product Description
Weighing Module
Features & Applications
Use imported stainless steel welding seal sensor, protection level IP68, can be used in various harsh environments
Sensors meet OIMLR60 C3 and NTEP 10000llL requirements
Self-stable pressure bearing head design, always maintain the correct loading position, good weighing repeatability
Equipped with adjustable horizontal limit bolts
Easy and fast installation
Convenient maintenance, saving downtime
Suitable for weighing and process weighing control in harsh environments such as conveying raceway scales and other horizontal impact forces.
Alloy steel/stainless steel material
Anti-bias loading, strong loading capacity, good long-term stability
Maximum range: 220kg-4.4t
Used for various types of ground-mounted scales, ground-mounted scales, ingredients scales and industrial weighing systems
Specifications
| Specifications | Technique |
| Sensitivity |
2.0±10%mV/V 3.0±10%mV/V(Option) |
| Zero balance | ±2%mV/V |
| Non-linearity | 0.03%F.S |
| Hysteresis | 0.03%F.S |
| Repeatability | 0.03%F.S |
| Creep(300min) | 0.03%F.S |
| Temp.effect on Sensitivity | 0.025%F.S./10℃ |
| Temp.effect on zero | 0.025%F.S./10℃ |
| Input impedance | 385±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operating temp range | -20~80℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | Ø5x6000m |
| Material | Stainless steel |
| IP class |
IP65(<500kg) IP68(≥500kg) |

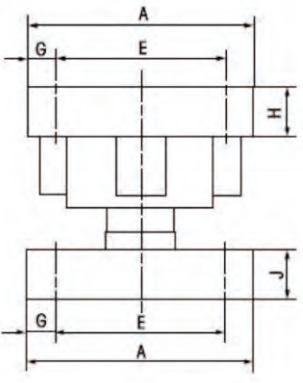

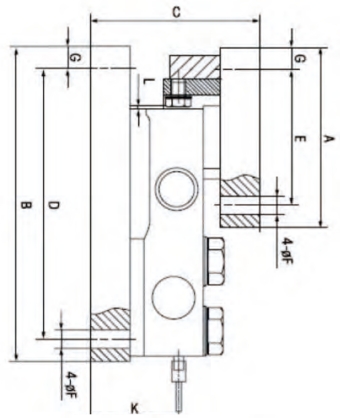

Mounting Dimension
| Capacity(I) | A | B | C | D | E | F | G | H | J | K | L |
| 0.25 | 114.3 | 177.8 | 104.8 | 152.4 | 88.9 | 11 | 12.7 | 19 | 19 | 50.8 | 1.6 |
| 5 | 152.4 | 235 | 136.5 | 184.2 | 101.6 | 17.5 | 25.4 | 31.8 | 25.4 | 65.1 | 1.6 |
| 10, 15 | 203.2 | 355.6 | 190.5 | 304.8 | 152.4 | 20.6 | 25.4 | 44.5 | 44.5 | 96.8 | 3 |
| 20 | 228.6 | 228.6 | 228.6 | 342.9 | 165.1 | 28.5 | 31.8 | 50.8 | 50.8 | 114 | 3 |

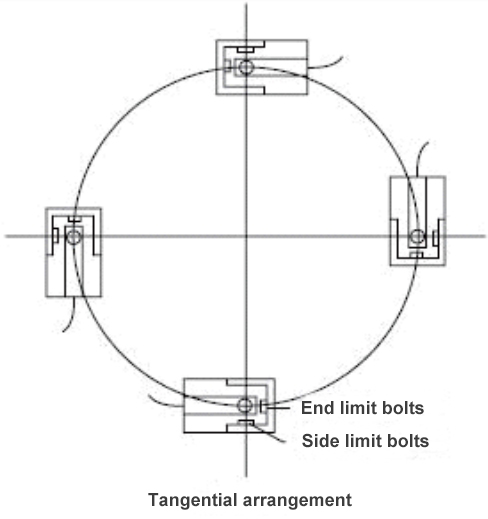

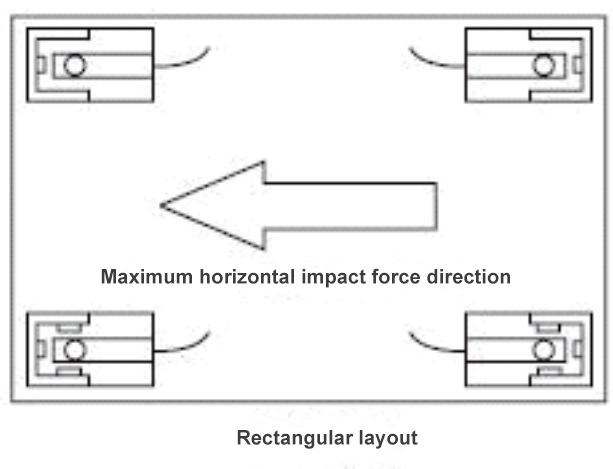

Note: When only two modules are subjected to impact in the same direction, the two modules should be located on the scale.
