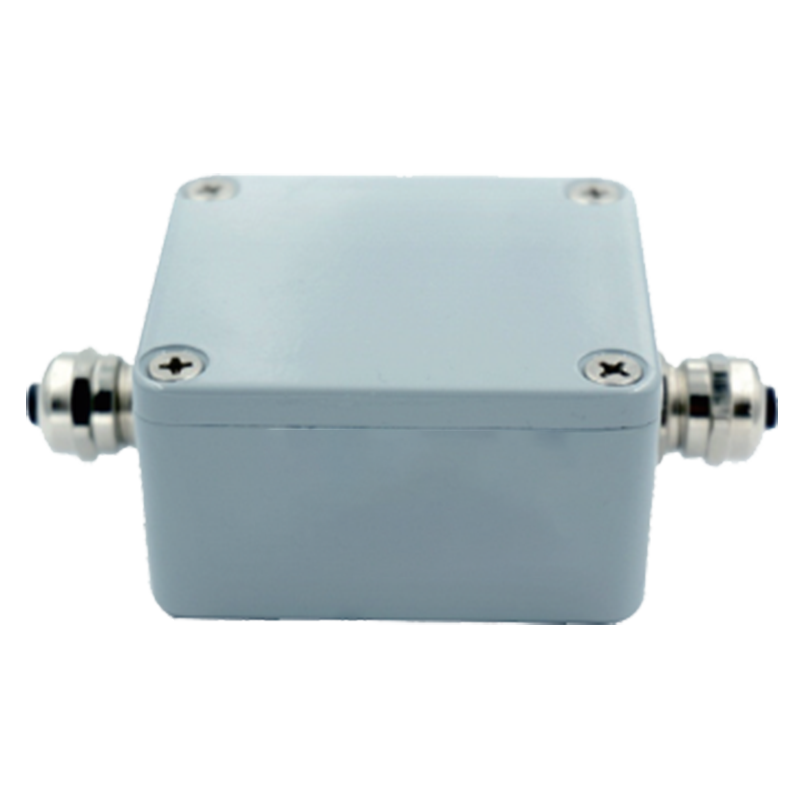

Amplifier T082D
Using special waterproof connector
Use the multi-turn potentiometer with high stability to do compensation and adjustment
Cover with waterproof rubber gasket which could bewaterproofand dustproof,suitable for harsh industrial conditions
Product Description
Features&Applications
Using special waterproof connector
Use the multi-turn potentiometer with high stability to do compensation and adjustment
Cover with waterproof rubber gasket which could bewaterproofand dustproof,suitable for harsh industrial conditions
MultipleLinearity adjustment points with different capacity,different division and sampling rate
IP66 protection digital transducer
Powersupply:7~25VDC
| Comprehensive accuracy | 0.01% |
| Linear calibration | 5 |
| Verification division number | 10000e |
| Measurement sensitivity | ≥0.5V/e |
| Minimum sensitivity | 0.02V/e |
| Measurement signal range | ±2.0mV/V |
| Maximum signal input range | ±5.0mV/V |
| Power supply | 3.3±1%VDC |
| Measurement resolution of rated input signal | 1:1000000 |
| Communication port | RS485/2W |
| Communication protocol | Modbus-RTU protocol |
| Power supply voltage | 7~25VDC |
| Power consumption of the whole machine | ≤0.2W |
| Operating temperature range | -30~65℃ |
| Weight | 0.17kg |
| Material | Aluminum Alloy |
| Protecion | IP66 |
FAQ
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
