Amplifier T098D
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
Analog output signal could be4~20mA、0~±10V
Digital communication interface as RS485 or RS232
Product Description
Features&Applications
Use for turning the analog force signal to digital output,the standard analog output signal and simple control of the occasion
Analog output signal could be4~20mA、0~±10V
Digital communication interface as RS485 or RS232
Multiple filtering and debugging modes make it easier to obtain the target value
Power supply and signal are isolated,strong anti-interference,more stable data acquisition and output
Comparable output,peak capture,peak comparison output
Non-weight calibration,TEDS automatic calibration
High-speed sampling and fast display
DC24V power supply,voltage±10%,more secure and stable
35mm standard industrial DIN rail

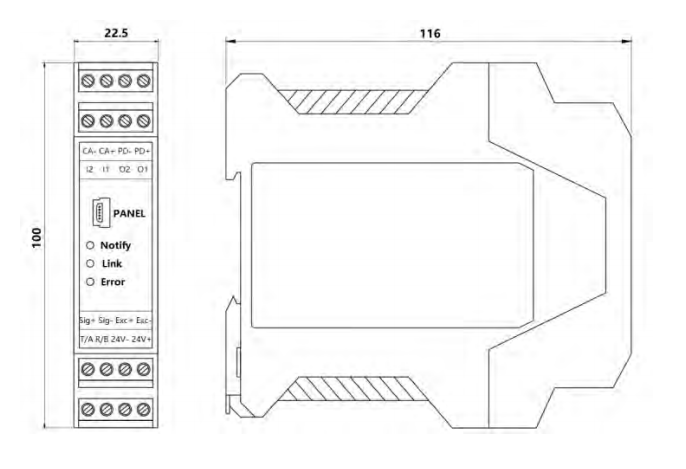

Mounting Dimension
| Specifications | Technique |
| Display | Low power LED display |
| Output linear | <0.01% |
| Comprehensive accuracy | >0.01% |
| AD Conversion speed | >100-400 times/second |
| Accept sensor | ±30mV |
| Input load | 1~8 350Ω sensors |
| Output specification | 4-20mA、0~±10V |
| Temp.effect on output | ≤10ppm/℃ |
| Temp.effect on zero | ≤10μV/℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±10%VDC |
| Power waste | ≤8W |
| Communication interface | lsolated RS232/485 |
| Switchin | Switching:2 switching input 3switching output (OC) |
| Operation temp range | -40~85℃ |
| Weight approx. | 0.5kg |
| Material | Plastic Shell |
| IP Class | IP64 |
